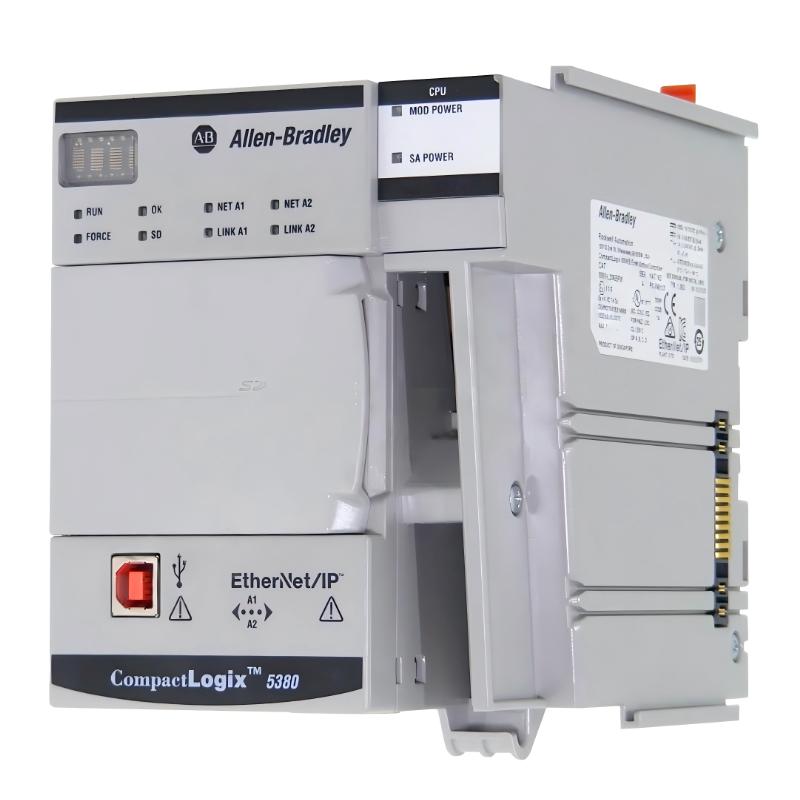

Allen Bradley 5069-L310ER-NSE CompactLogix 5380 Controller
Allen Bradley 5069-L310ER-NSE CompactLogix 5380 Controller
0.0
Points
Brand:Allen Bradley PLC Item No.:5069-L310ER-NSE Product Origin:USA Product Dimensions:143.97 x 101.66 x 136.81 mm Product Weight:0.768 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 5069-L310ER-NSE CompactLogix 5380 controller is part of Rockwell Automation’s next-generation PLC platform designed for modern industrial control systems. It combines high processing power with flexible communication capabilities, enabling seamless integration of machines, processes, and enterprise-level systems.
Technical Specifications
Parameter
Specification
Model
5069-L310ER-NSE
Series
CompactLogix 5380
Processor
Quad-core
User Memory
1 MB
Local I/O Capacity
Up to 8 Compact 5000 modules
Communication
2 × EtherNet/IP, USB
Power Supply
18–32 V DC
Isolation
300 V continuous
Dimensions
143.97 × 101.66 × 136.81 mm
Weight
0.768 kg
Mounting
DIN rail (EN 50022)
Operating Temperature
0°C to 60°C
Recommended Related Models
Model
Product Name
5069-L320ER
CompactLogix 5380 Controller 2 MB Version
5069-L306ER
CompactLogix 5380 Controller 0.5 MB Version
5069-AENTR
Compact 5000 EtherNet/IP Adapter Module
5069-IB16
Compact 5000 16-point Digital Input Module
Popular Related Models
Model
Product Name
5069-L330ER
CompactLogix 5380 High Memory Controller
5069-L310ERM
CompactLogix Motion Control Variant
5069-OB16
Compact 5000 Digital Output Module
5069-IF8
Compact 5000 Analog Input Module
Applications
• Mid-size industrial automation systems requiring centralized PLC control with distributed I/O expansion capability.
• Manufacturing production lines including packaging, assembly, and material handling systems with real-time control requirements.
• Process automation applications in water treatment, chemical dosing, and utility monitoring systems.
• Machine control systems such as CNC auxiliary control, robotics cells, and multi-axis coordination systems.
• Retrofit projects upgrading legacy CompactLogix or ControlLogix systems to newer 5380 architecture.
• Industrial IIoT-ready systems requiring Ethernet-based data exchange and high-speed communication.
Key Advantages
• Quad-core processor architecture delivers high-speed execution and improved multitasking performance for complex automation tasks.
• Integrated dual EtherNet/IP ports support linear, star, and Device Level Ring (DLR) network topologies.
• Scalable support for Compact 5000 I/O modules enables flexible system expansion up to large distributed architectures.
• Built-in USB and Ethernet interfaces simplify commissioning, diagnostics, and programming access.
• Compact design reduces panel space requirements while maintaining high processing capability.
• Optimized for modern Connected Enterprise environments with high-speed data exchange and diagnostics.
Technical FAQs
Q1: What is the main function of the 5069-L310ER-NSE?
It is a CompactLogix 5380 controller used to execute PLC logic and manage industrial automation processes.
Q2: How many local I/O modules does it support?
It supports up to 8 local Compact 5000 I/O modules.
Q3: What communication interfaces are included?
It includes dual Gigabit Ethernet ports and a USB interface.
Q4: Does it support EtherNet/IP networking?
Yes, it fully supports EtherNet/IP for industrial communication and device integration.
Q5: What type of processor does it use?
It uses a quad-core processor for parallel task execution.
Q6: Is it suitable for motion control applications?
Yes, it can be used for coordinated control when integrated with motion modules.
Q7: What is the memory capacity?
It provides approximately 1 MB user memory.
Q8: Can it operate in harsh industrial environments?
Yes, it is designed for standard industrial temperature and EMI conditions.
Q9: Does it require external power supply?
Yes, it operates on 18–32 V DC modular power supply.
Q10: Is it compatible with Studio 5000?
Yes, it is programmed using Studio 5000 Logix Designer.
