Brand:Allen Bradley PLC Item No.:VPL-B1652C-PJ14AA Product Origin:USA Product Dimensions:Frame Size: 165 mm Product Weight:17.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

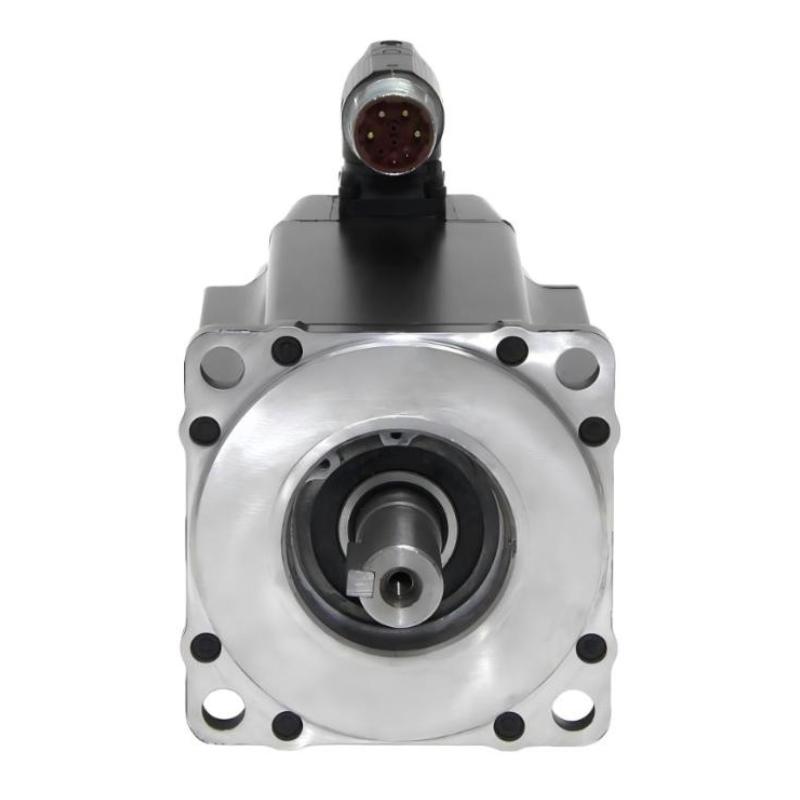

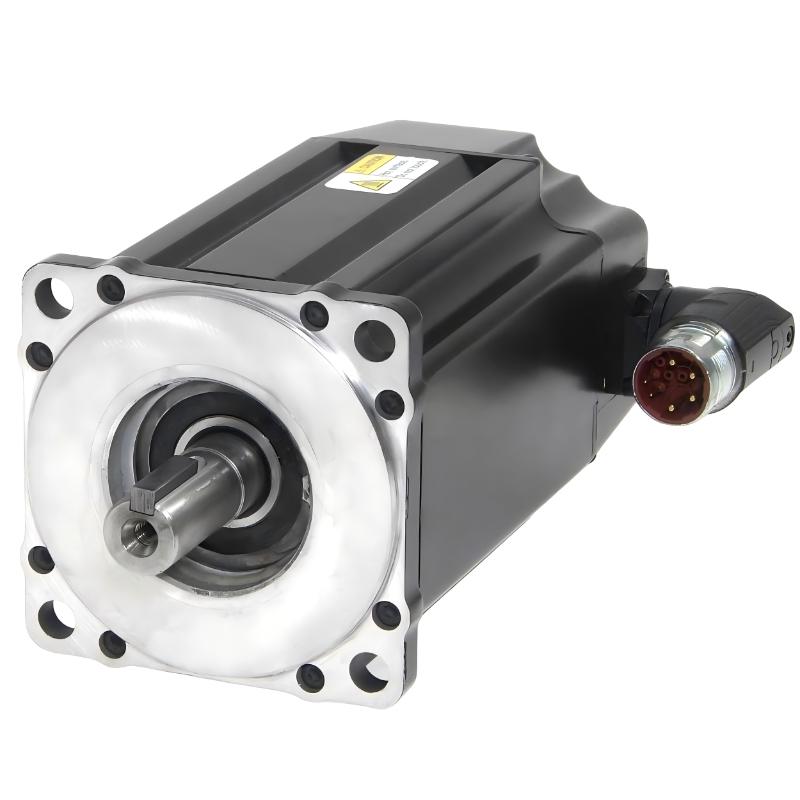

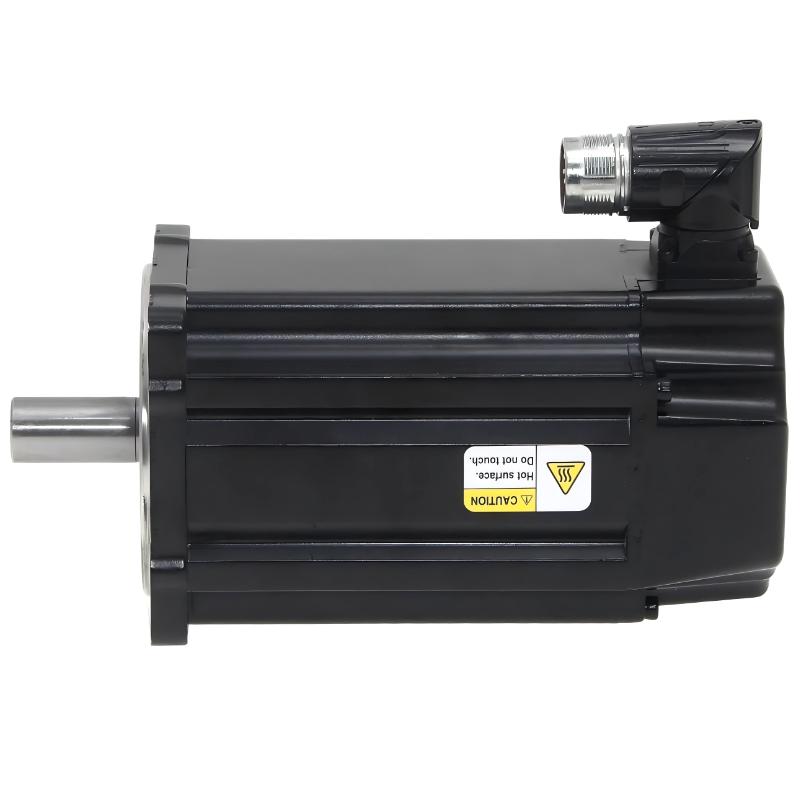

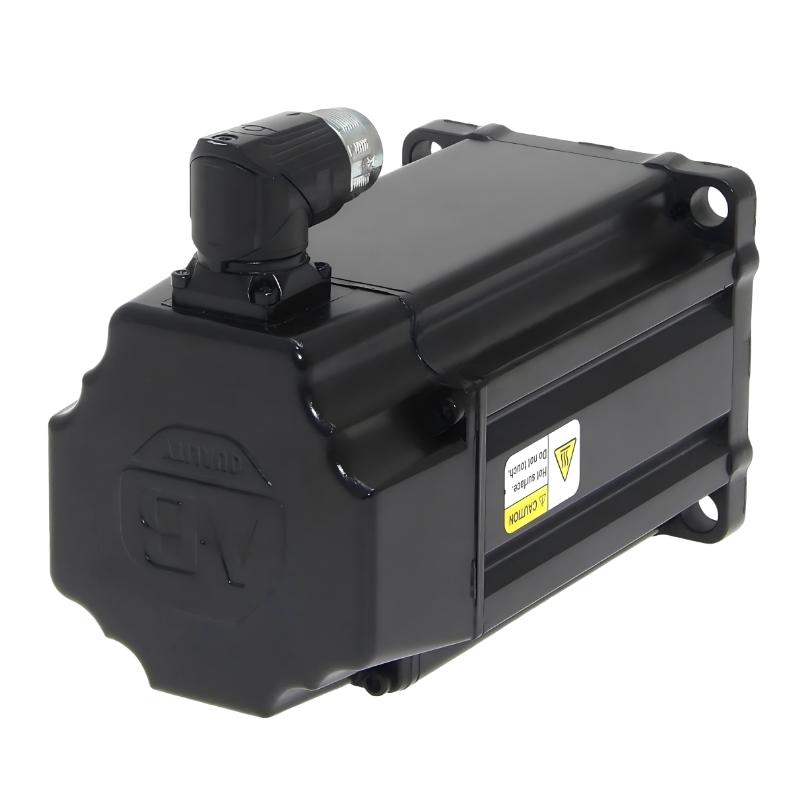

The Allen-Bradley VPL-B1652C-PJ14AA servo motor is part of the Kinetix VP low-inertia motor family designed to deliver high-performance motion control in demanding industrial environments. Its compact 165 mm frame and optimized rotor design allow it to achieve rapid acceleration and deceleration while maintaining high positioning accuracy.
Technical Specifications
Parameter
Specification
Model
VPL-B1652C-PJ14AA
Series
Kinetix VP Low Inertia Servo Motor
Frame Size
165 mm
Rated Speed
2500 RPM
Voltage Class
480 V AC
Magnet Stacks
2
Feedback
18-bit multi-turn absolute encoder
Brake
24 V DC holding brake
Shaft Type
Keyed shaft
Connector Type
SpeedTec DIN right-angle
Mounting
IEC metric flange
Weight
17.8 kg
Recommended Related Models
Model
Product Name
VPL-B1652F-PJ14AA
Kinetix VP Servo Motor 4500 RPM Variant
VPL-B1653C-PJ14AA
Kinetix VP Servo Motor Higher Torque Variant
VPL-B1152C-PJ14AA
Kinetix VP Servo Motor 115 mm Frame Size
VPL-B1652C-PK14AA
Kinetix VP Servo Motor Keyless Shaft Variant
Popular Related Models
Model
Product Name
MPL-B320P-MJ72AA
Kinetix MPL Servo Motor Series
MPL-B4560F-MJ74AA
Kinetix MPL High Performance Servo Motor
VPL-B1302C-PJ14AA
Kinetix VP 130 mm Servo Motor
VPL-B1652C-CJ14AA
Kinetix VP Servo Motor Brake Variant
Applications
• High-speed packaging and assembly machinery requiring fast acceleration and precise position control.
• CNC auxiliary axes and robotic motion systems demanding low inertia and high responsiveness.
• Conveyor indexing and synchronization systems in automated manufacturing lines.
• Material handling equipment where smooth torque output is required under variable load conditions.
• Printing, labeling, and converting machines requiring tight motion synchronization.
• General industrial servo systems integrated with Kinetix servo drives in multi-axis architectures.
Key Advantages
• Low-inertia rotor design enables fast dynamic response and improved motion accuracy.
• Integrated 18-bit high-resolution encoder ensures precise position feedback and stability.
• 24 V DC holding brake enhances safety and load holding in vertical or stopped conditions.
• SpeedTec DIN connector design improves installation reliability and vibration resistance.
• Fully compatible with Rockwell Kinetix servo drive platforms for seamless integration.
Technical FAQs
Q1: What type of control system is this motor used with?
It is used with Kinetix servo drive systems in EtherNet/IP-based motion control architectures.
Q2: What feedback device is included?
It includes a high-resolution 18-bit absolute multi-turn encoder.
Q3: Does this motor include a brake?
Yes, it includes a 24 V DC holding brake for load удержing and safety.
Q4: What is the rated speed?
Typical rated speed is around 2500 RPM depending on configuration.
Q5: Is this motor suitable for vertical applications?
Yes, the holding brake makes it suitable for vertical load control systems.
Q6: What type of shaft does it use?
It uses a keyed shaft design for secure mechanical coupling.
Q7: Can it be used in multi-axis systems?
Yes, it is commonly used in synchronized multi-axis motion systems.
Q8: What communication protocol is required?
It operates within EtherNet/IP-based Kinetix motion systems (via drive).
Q9: Is it suitable for high-speed applications?
Yes, it is designed specifically for high dynamic response and speed control.
Q10: Does it require a dedicated drive?
Yes, it must be paired with compatible Kinetix servo drives.
