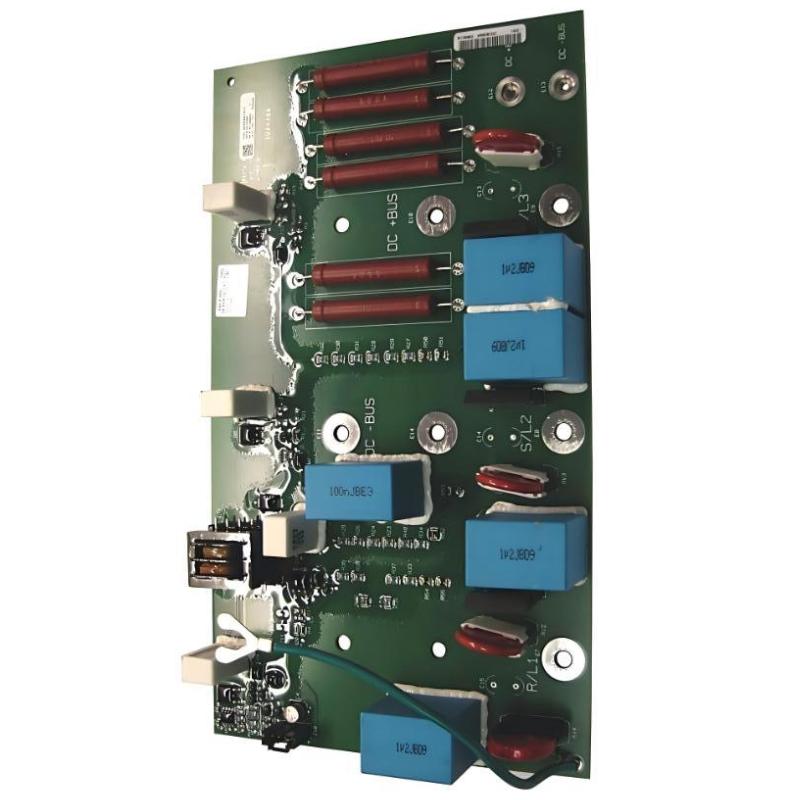

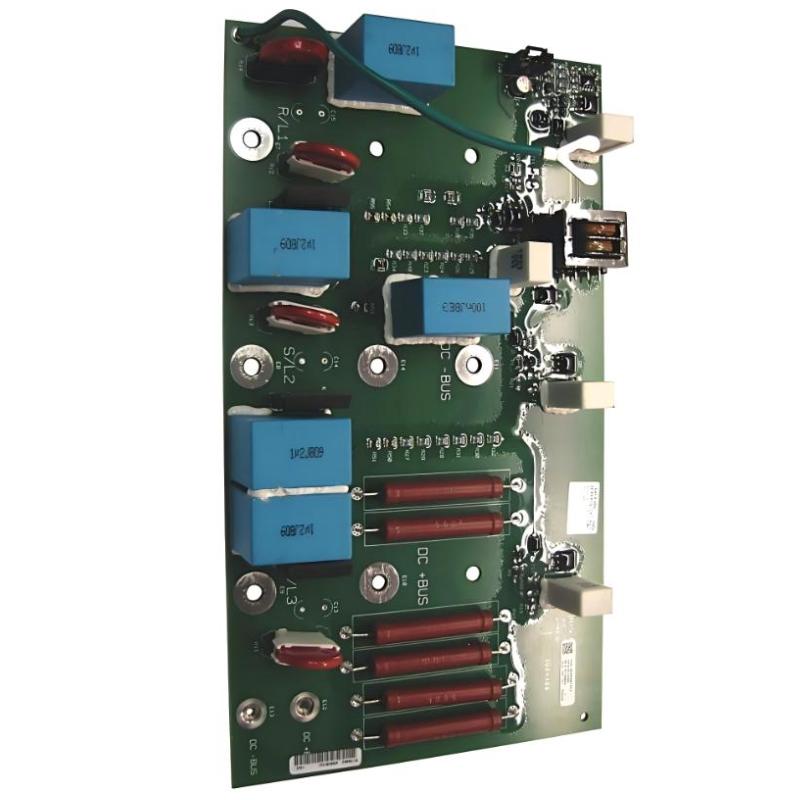

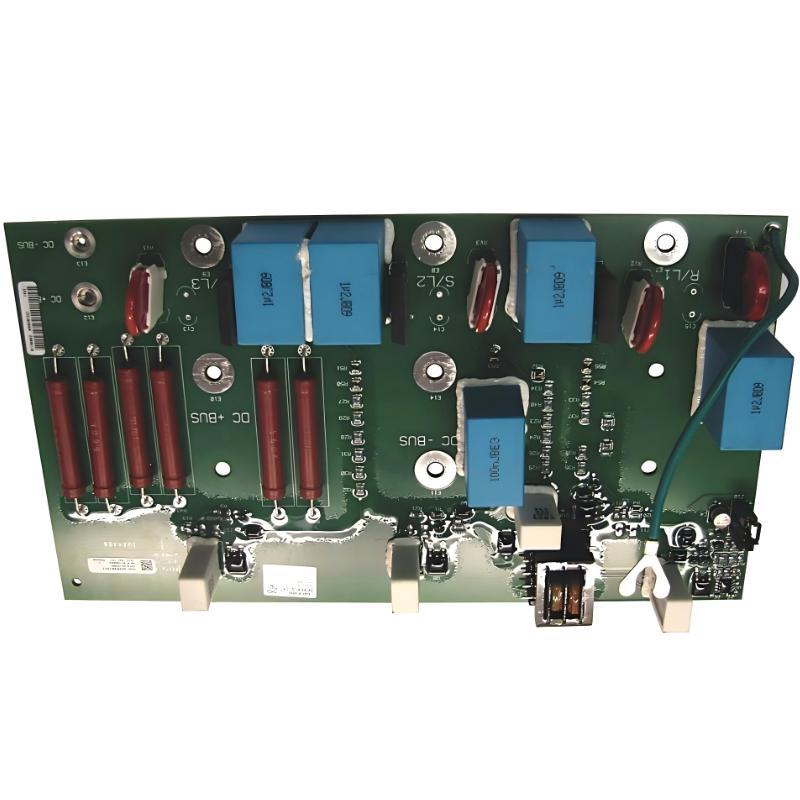

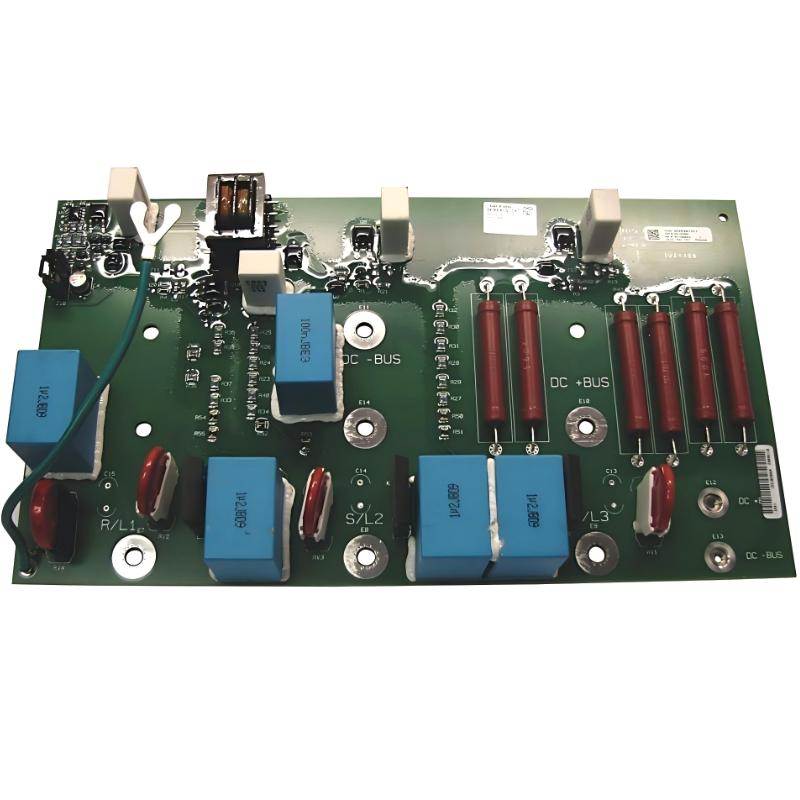

Allen Bradley SK-R9-PCG1-DF7 PowerFlex 750 Frame 7 Precharge Kit
Allen Bradley SK-R9-PCG1-DF7 PowerFlex 750 Frame 7 Precharge Kit
0.0
Points
Brand:Allen Bradley PLC Item No.:SK-R9-PCG1-DF7 Product Origin:USA Product Dimensions:120 x 30 x 100 mm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The SK-R9-PCG1-DF7 Precharge Kit is an essential internal component of the PowerFlex 750 Series Frame 7 drive system. It manages the controlled charging of the DC bus during power-up, preventing electrical stress on sensitive power components and ensuring stable drive initialization.
Engineered for high-power industrial environments, it plays a key role in protecting drive reliability, improving lifecycle performance, and supporting continuous operation in demanding applications.
Technical Specifications
Parameter
Specification
Product Type
AC Drive Precharge Kit
Series
PowerFlex 750
Frame Size
Frame 7
Function
DC bus precharge control
Compatible System
Allen-Bradley PowerFlex 750 drives
Installation Type
Internal drive accessory
Operating Environment
Industrial drive systems
Protection Role
Inrush current limiting & DC bus stabilization
Dimensions
120 × 30 × 100 mm
Weight
0.5 kg (1.10 lb)
Applications
The Allen-Bradley SK-R9-PCG1-DF7 PowerFlex 750 Frame 7 Precharge Kit is designed as a critical protection and startup component within PowerFlex 750-series drive systems, ensuring controlled DC bus charging during power-up sequences in high-power industrial applications.
PowerFlex 750 drive frame 7 installations
Industrial motor control centers (MCCs)
Heavy-duty conveyor and process drive systems
High-power pump, fan, and compressor control
Manufacturing plant drive cabinets
Retrofit and spare part replacement for Rockwell drive systems
Energy-intensive automation infrastructure requiring controlled inrush current
Advantages
Provides controlled precharge of DC bus to protect drive components
Enhances system reliability during startup and shutdown cycles
Reduces inrush current stress on capacitors and rectifiers
Designed specifically for Frame 7 PowerFlex 750 architecture
Supports long-term drive system stability in heavy industrial duty
Improves operational safety in high-voltage environments
Easy integration as a service and replacement kit
Engineered for Rockwell Automation drive ecosystem compatibility
Technical FAQs (10 Technical Questions)
Q1: What is the function of the SK-R9-PCG1-DF7 kit?
It controls the precharging process of the DC bus in PowerFlex 750 Frame 7 drives.
Q2: What happens if a precharge kit fails?
The drive may experience startup faults or DC bus overcurrent conditions.
Q3: Is this a standalone device?
No, it is an internal drive accessory used within PowerFlex 750 systems.
Q4: Does it affect motor performance directly?
No, it does not control the motor; it protects the drive power stage.
Q5: Can it be replaced in the field?
Yes, it is designed for service replacement in installed drive systems.
Q6: Is configuration required after installation?
No software configuration is required; it is hardware-function based.
Q7: What drive series is it compatible with?
It is compatible with PowerFlex 750 Frame 7 drives.
Q8: Does it improve energy efficiency?
Indirectly, by ensuring stable and safe DC bus operation during startup.
Q9: Is it voltage-specific?
Yes, it is designed for specific PowerFlex 750 Frame 7 voltage architectures.
Q10: Can it be used outside Rockwell systems?
No, it is designed exclusively for Allen-Bradley PowerFlex 750 platforms.
