Brand:Epro PLC Item No.:PR6424/019-000 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

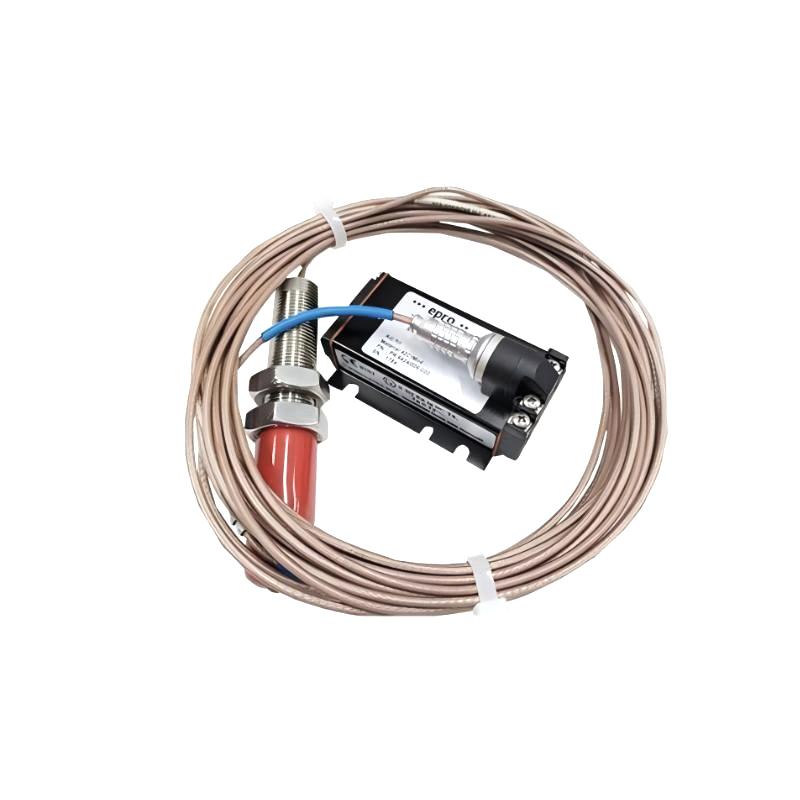

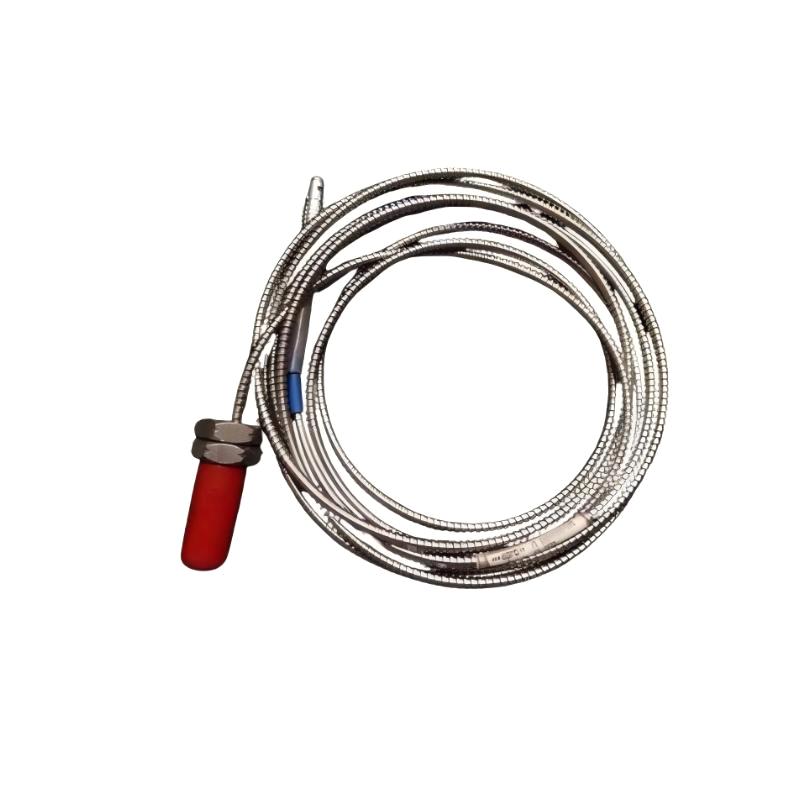

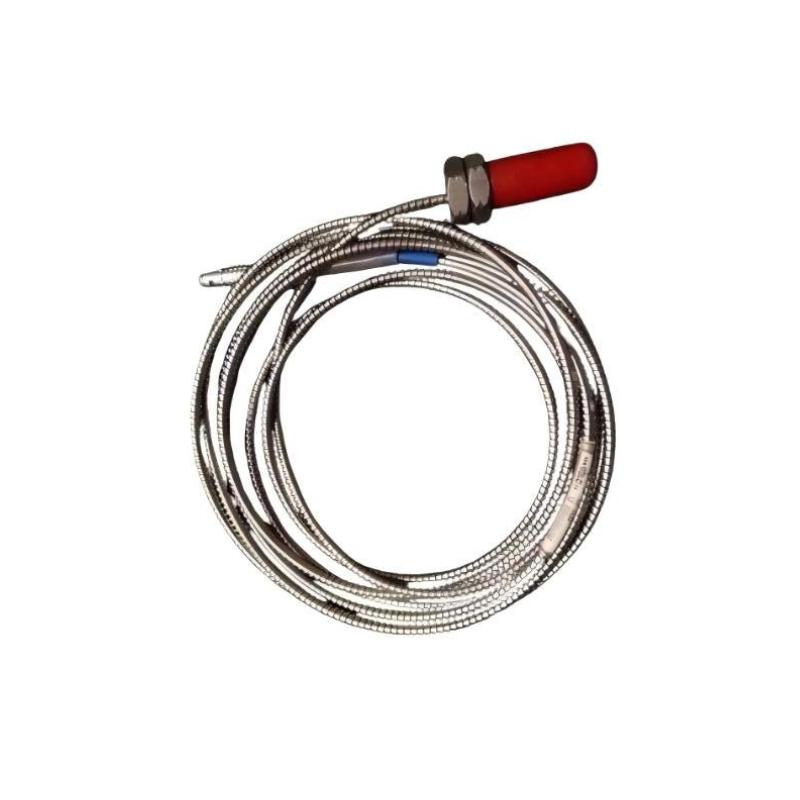

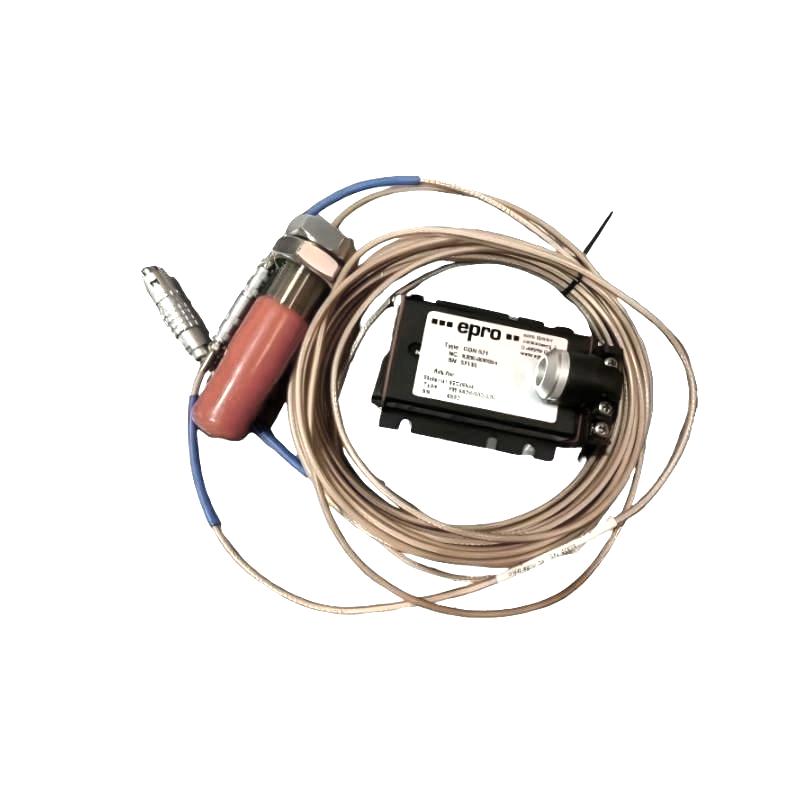

The Epro PR6424/019-000 is a 16mm eddy current proximity sensor used for high-precision measurement of shaft displacement and vibration in rotating machinery protection systems.
It plays a key role in predictive maintenance and machinery protection by providing continuous real-time data that helps detect early-stage mechanical faults and improves operational reliability in critical industrial environments.
Technical Specifications
Parameter
Specification
Product Type
Eddy Current Proximity Sensor
Series
Epro PR6424
Model
PR6424/019-000
Sensor Head Diameter
16 mm
Measurement Principle
Eddy current (non-contact)
Sensitivity
4 V/mm
Linearity
±1.5%
Static Measurement Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Nominal Air Gap
~2.7 mm
Operating Temperature
-35 to 180°C
Target Material
Ferromagnetic steel
Minimum Shaft Diameter
≥80 mm
Weight
0.2 kg (0.44 lb)
Applications
The Epro PR6424 series 16mm eddy current sensor is widely used in machinery condition monitoring and protection systems where precise measurement of shaft dynamic behavior is required.
It is commonly applied in steam turbines, gas turbines, hydro turbines, compressors, pumps, and industrial fans. In turbine systems, it provides continuous monitoring of radial shaft vibration and axial position. In compressors and pumps, it supports early detection of mechanical issues such as misalignment, imbalance, rotor instability, and bearing degradation.
It is also used in high-reliability protection systems where continuous real-time vibration data is required to prevent equipment damage and ensure safe operation of critical rotating assets.
Advantages
This sensor is engineered for high accuracy, long-term stability, and robust performance in harsh industrial environments.
It provides non-contact eddy current measurement with excellent linearity, ensuring precise displacement and vibration tracking even under high-speed rotation. Its 16mm probe design allows stable installation on large shafts with consistent air gap performance.
The sensor is designed for strong resistance to temperature variation, vibration, and electromagnetic interference, making it suitable for continuous operation in power plants and heavy industrial facilities. It also delivers low drift characteristics, supporting long-term calibration stability and reduced maintenance requirements.
Technical FAQs
Q1: What measurement principle does this sensor use?
It uses eddy current technology for non-contact displacement measurement.
Q2: What is the main function of this sensor?
It measures shaft vibration, axial position, and eccentricity in rotating machinery.
Q3: Is it suitable for turbine applications?
Yes, it is widely used in steam, gas, and hydro turbine monitoring systems.
Q4: Does it require physical contact with the shaft?
No, it operates without contact using an electromagnetic field.
Q5: What kind of signal output does it provide?
It requires a compatible signal converter to generate a proportional voltage output.
Q6: Can it measure both static and dynamic displacement?
Yes, it supports both steady position and dynamic vibration measurement.
Q7: Is it suitable for high-speed rotating equipment?
Yes, it is designed for turbomachinery and high-RPM applications.
Q8: How does it handle harsh environments?
It is designed for high temperature, vibration, and industrial electrical noise resistance.
Q9: Does it require frequent calibration?
No, it has low long-term drift and stable calibration behavior.
Q10: What industries commonly use this sensor?
Power generation, oil and gas, petrochemical, and heavy industrial sectors.
