Brand:Epro PLC Item No.:PR6424/101-121 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

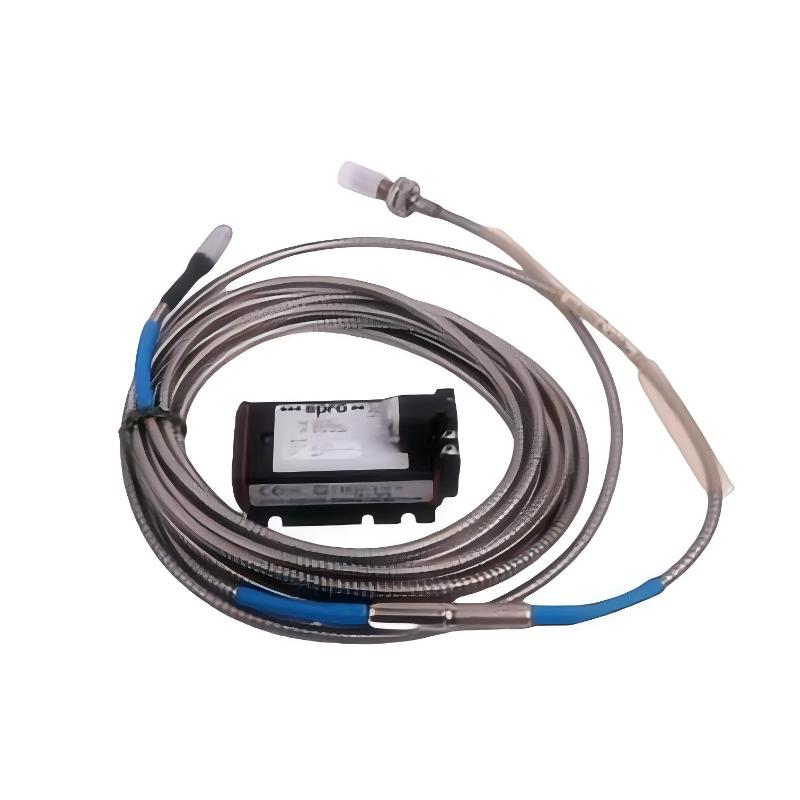

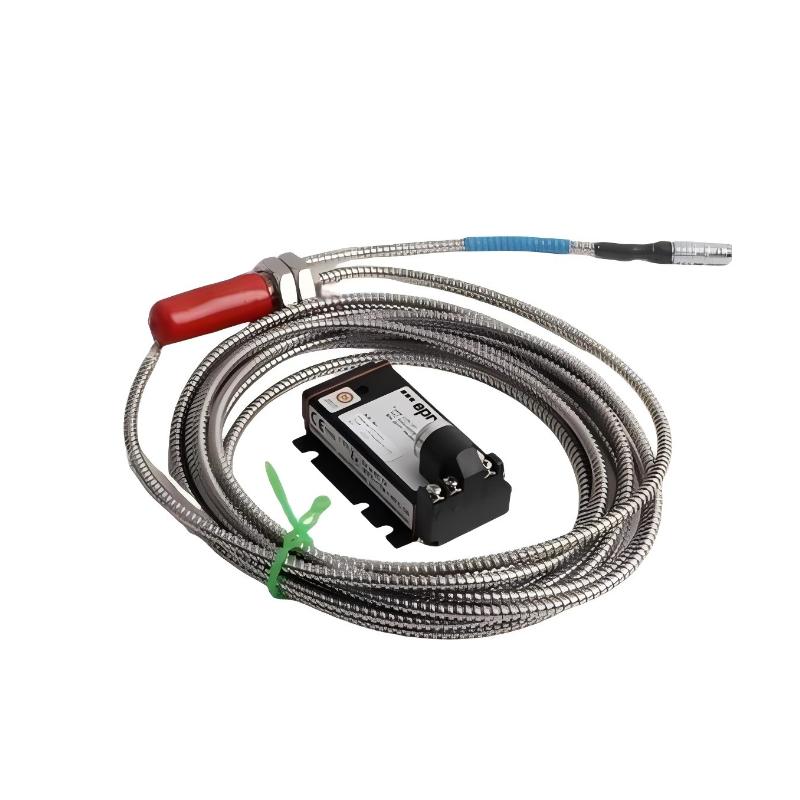

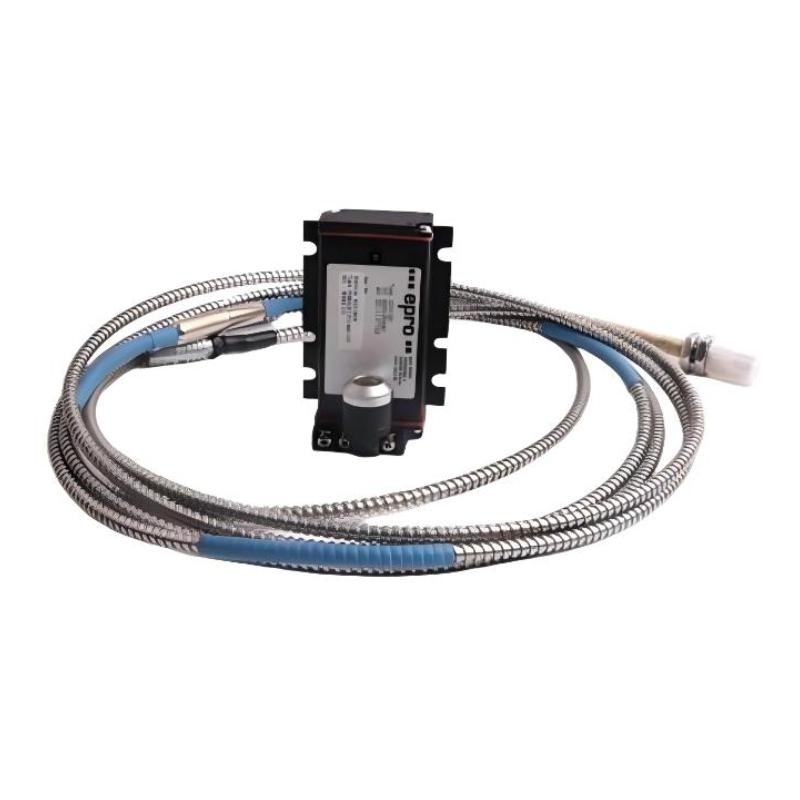

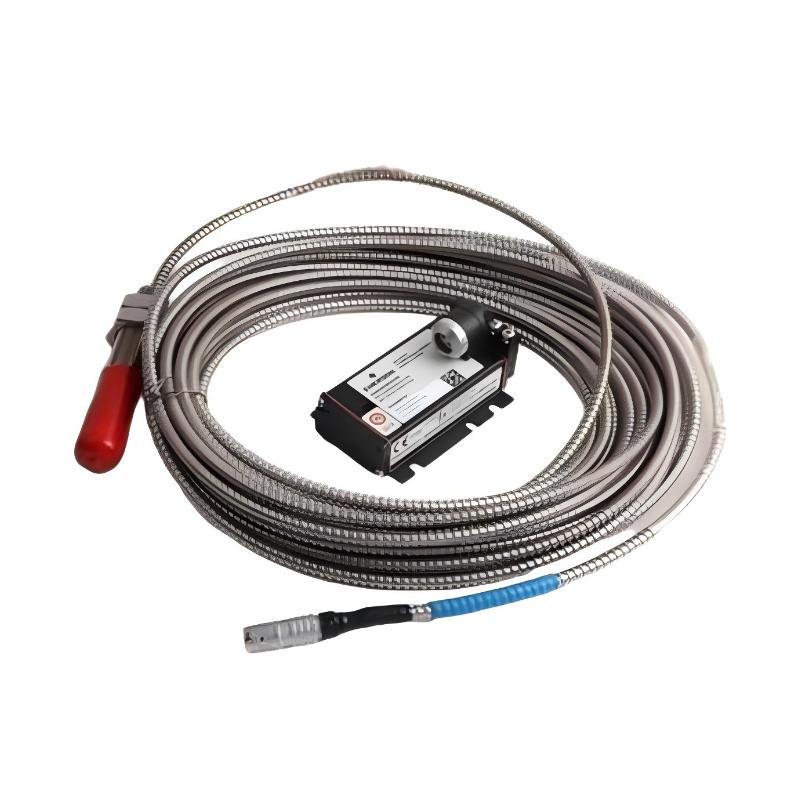

The Epro PR6424/101-121 is a 16mm eddy current proximity sensor used for precise non-contact measurement in rotating machinery protection systems.
It plays a critical role in condition monitoring architectures by delivering continuous real-time shaft displacement data, enabling early fault detection and improving operational reliability in industrial environments.
Technical Specifications
Parameter
Specification
Product Type
Eddy Current Proximity Sensor
Series
Epro PR6424
Model
PR6424/101-121
Sensor Head Diameter
16 mm
Measurement Principle
Eddy current (non-contact)
Sensitivity
4 V/mm
Linearity
±1.5%
Static Measurement Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Nominal Air Gap
~2.7 mm
Operating Temperature
-35 to 180°C
Target Material
Ferromagnetic steel
Minimum Shaft Diameter
≥80 mm
Weight
0.2 kg (0.44 lb)
Applications
The Epro PR6424/101-121 is widely used in machinery condition monitoring systems where precise and continuous shaft displacement measurement is required for safe and reliable operation.
It is commonly applied in steam turbines, gas turbines, hydro turbines, compressors, pumps, and large industrial rotating equipment. In turbine applications, it provides continuous monitoring of radial shaft vibration and axial displacement. In compressor and pump systems, it supports early detection of mechanical issues such as imbalance, misalignment, rotor instability, and bearing wear.
It is also widely used in API 670-compliant machinery protection systems, where real-time vibration data is essential for preventing equipment damage and ensuring stable operation of critical rotating assets in power generation, oil and gas, and petrochemical industries.
Advantages
This sensor is engineered for high accuracy, long-term stability, and reliable performance in harsh industrial environments.
It provides non-contact eddy current measurement with high linearity, ensuring precise displacement tracking even under high-speed rotating conditions. The 16mm probe head creates a stable electromagnetic field for consistent measurement across varying shaft conditions.
It is designed with strong resistance to temperature variation, vibration, and electromagnetic interference, making it suitable for continuous industrial operation. Low drift characteristics help maintain calibration stability over long periods, reducing maintenance requirements and improving system availability.
Technical FAQs
Q1: What measurement principle does this sensor use?
It uses eddy current induction for non-contact displacement measurement.
Q2: What is the main function of this model?
It measures shaft vibration, axial position, and eccentricity in rotating machinery.
Q3: Is it suitable for turbine applications?
Yes, it is widely used in steam, gas, and hydro turbine systems.
Q4: Does it require physical contact with the shaft?
No, it operates without contact.
Q5: What output signal does it provide?
It requires a compatible signal converter to produce a proportional voltage output.
Q6: Can it measure both static and dynamic displacement?
Yes, it supports both steady-state and dynamic vibration measurement.
Q7: Is it suitable for high-speed machinery?
Yes, it is designed for turbomachinery and high-RPM applications.
Q8: How does it perform in harsh environments?
It is resistant to temperature variation, vibration, and electromagnetic interference.
Q9: Does it require frequent calibration?
No, it is designed for long-term stability with minimal signal drift.
Q10: What industries commonly use this sensor?
Power generation, oil and gas, petrochemical, and heavy industrial sectors.
