Brand:Epro PLC Item No.:PR6424/102-101 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

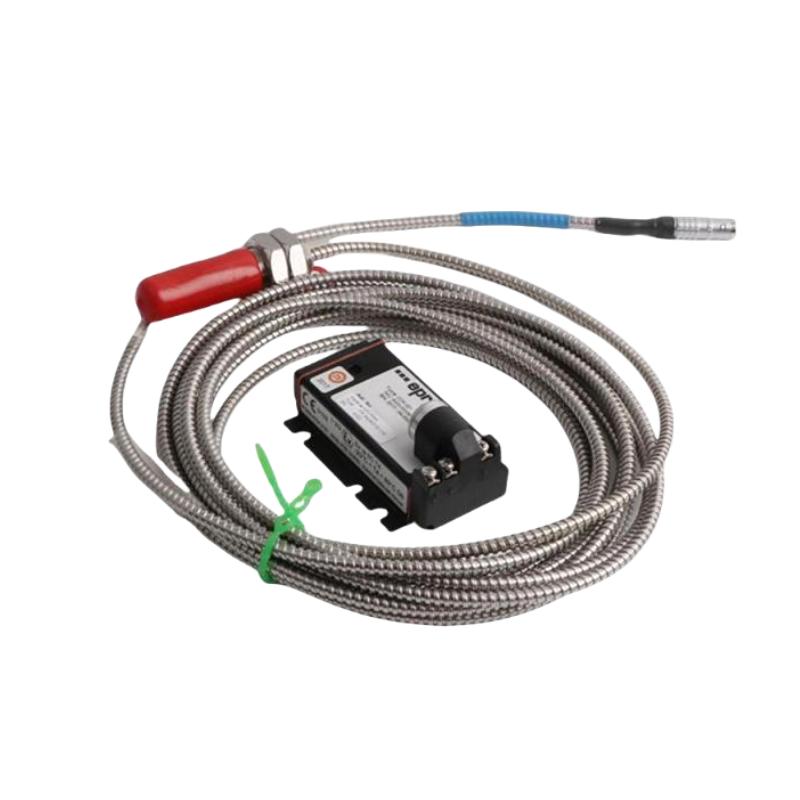

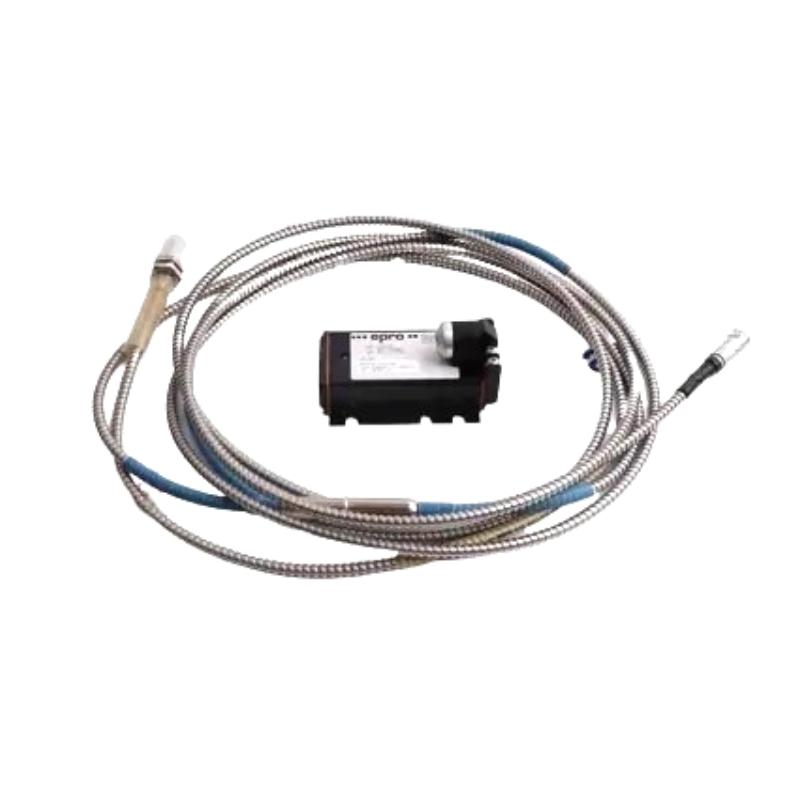

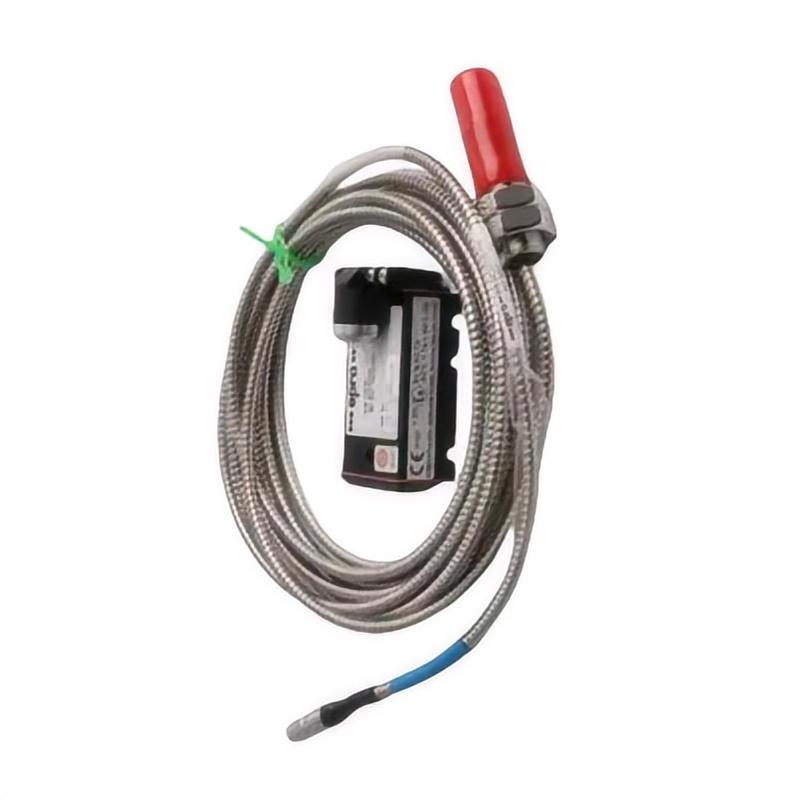

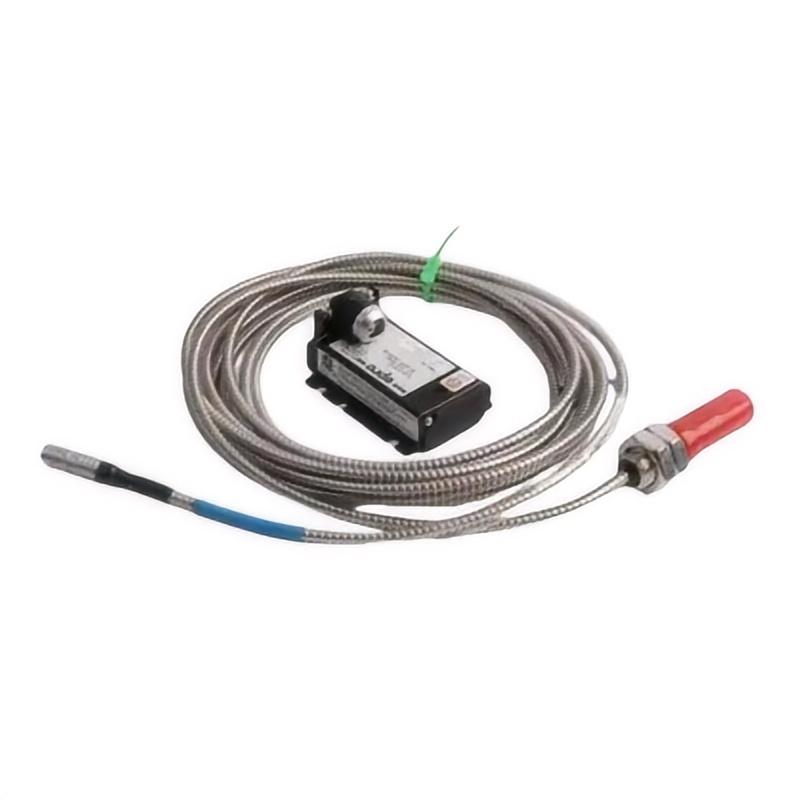

The Epro PR6424/102-101 is a 16mm eddy current proximity sensor designed for precise non-contact monitoring of rotating machinery behavior.
It plays a key role in condition monitoring systems by providing continuous real-time shaft displacement data, helping detect early-stage mechanical faults and improving overall equipment reliability and safety.
Technical Specifications
Parameter
Specification
Product Type
Eddy Current Proximity Sensor
Series
Epro PR6424
Model
PR6424/102-101
Sensor Head Diameter
16 mm
Measurement Principle
Eddy current (non-contact)
Sensitivity
4 V/mm
Linearity
±1.5%
Static Measurement Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Nominal Air Gap
~2.7 mm
Operating Temperature
-35 to 180°C
Target Material
Ferromagnetic steel
Minimum Shaft Diameter
≥80 mm
Weight
0.2 kg (0.44 lb)
Applications
The Epro PR6424/102-101 is widely used in turbomachinery condition monitoring systems where precise real-time displacement measurement is required for protection and predictive maintenance.
It is commonly applied in steam turbines, gas turbines, hydro turbines, compressors, pumps, and large industrial rotating equipment. In turbine systems, it enables continuous monitoring of radial shaft vibration and axial displacement. In compressor and pump applications, it supports early detection of mechanical issues such as misalignment, imbalance, rotor instability, and bearing wear.
It is also widely used in API 670-compliant machinery protection systems, where continuous vibration data is essential to ensure safe operation of critical rotating assets in power generation, oil and gas, and petrochemical industries.
Advantages
This sensor uses eddy current technology to achieve accurate non-contact displacement measurement without mechanical wear.
It delivers high linearity and stable output performance, making it suitable for high-speed rotating machinery. The 16mm probe geometry ensures a stable electromagnetic field distribution, supporting consistent measurement across varying shaft conditions.
The PR6424 series is designed for industrial durability, with strong resistance to temperature variation, vibration, and electromagnetic interference. According to manufacturer specifications for the PR6424 family, long-term drift is typically very low, supporting stable calibration and reduced maintenance in continuous monitoring systems.
Technical FAQs
Q1: What is the measurement principle of this sensor?
It uses eddy current induction for non-contact displacement measurement.
Q2: What is the main function of the PR6424/102-101?
It measures shaft vibration, eccentricity, and axial displacement in rotating machinery.
Q3: Where is it typically used?
It is used in turbines, compressors, pumps, and other critical rotating equipment.
Q4: Does it require contact with the shaft?
No, it operates without physical contact.
Q5: Is it suitable for high-speed machinery?
Yes, it is designed for turbomachinery and high-RPM applications.
Q6: What output signal does it provide?
It works with a compatible signal converter to generate a proportional voltage output.
Q7: Can it measure both static and dynamic signals?
Yes, it supports both static position and dynamic vibration measurement.
Q8: How does it perform in harsh environments?
It is resistant to vibration, temperature variation, and electromagnetic interference.
Q9: Does it require frequent calibration?
No, it is designed for long-term stability with minimal drift.
Q10: What industries use this sensor most often?
Power generation, oil and gas, petrochemical, and heavy industrial sectors.
