Brand:Epro PLC Item No.:PR6424/103-021 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

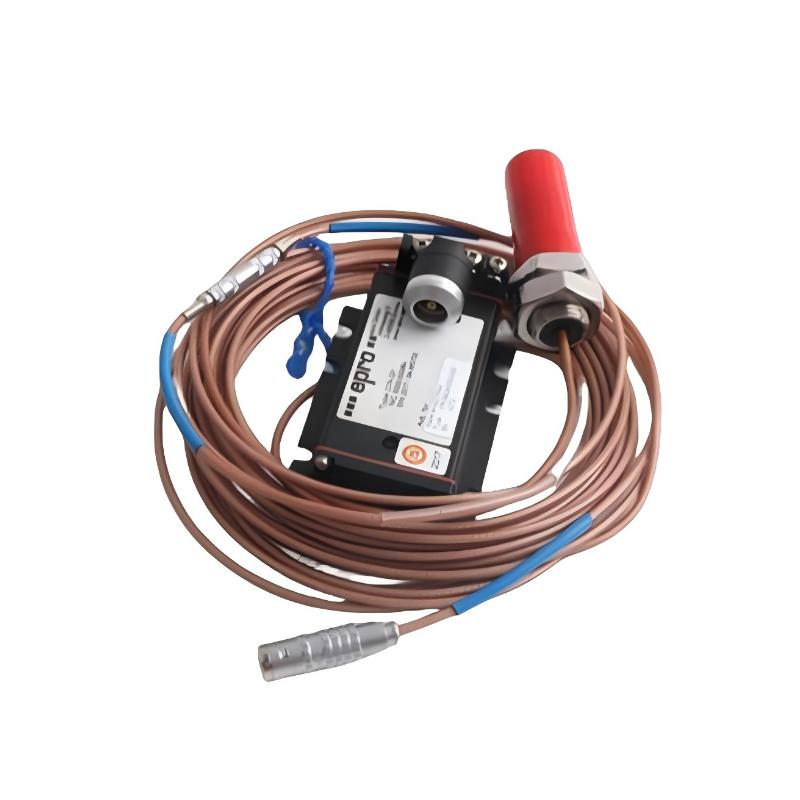

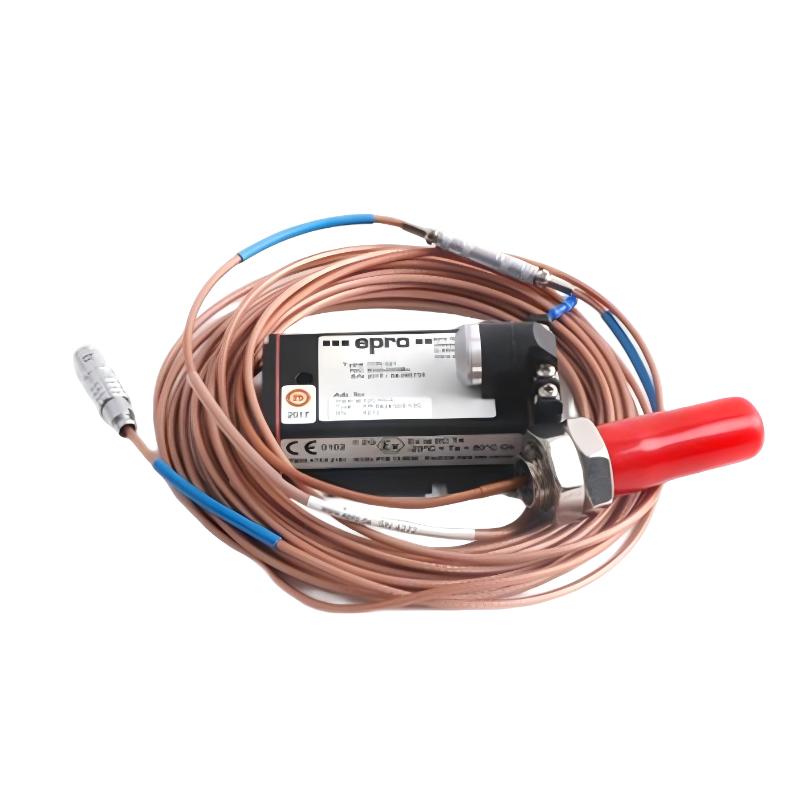

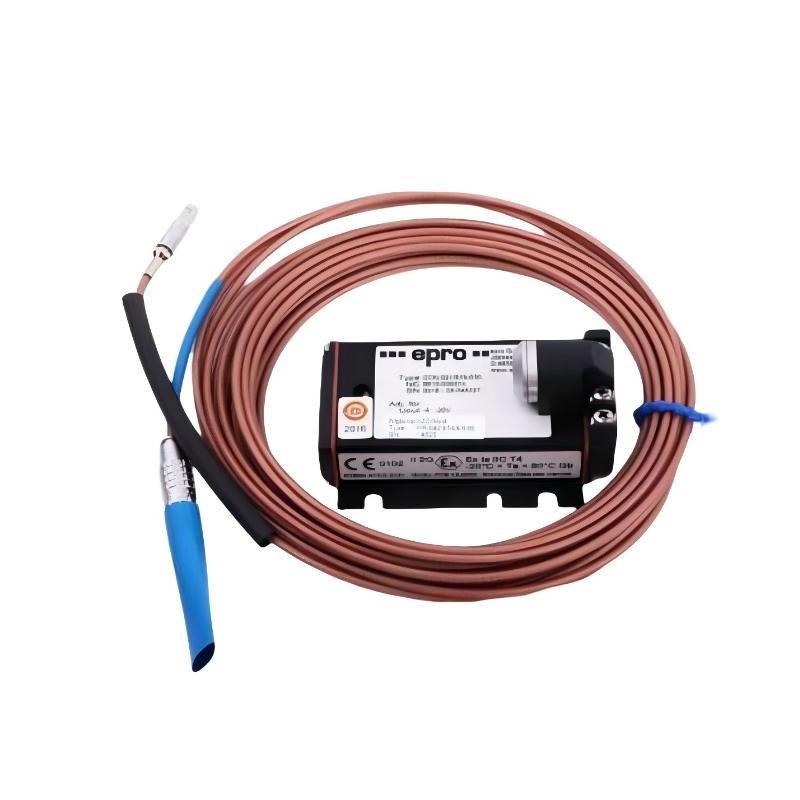

The Epro PR6424/103-021 is part of the 16mm eddy current sensor family used for precise non-contact monitoring of rotating machinery dynamics.
It plays a critical role in condition monitoring systems by providing continuous real-time shaft displacement data, enabling early fault detection and improving operational reliability in critical industrial assets.
Technical Specifications
Parameter
Specification
Product Type
Eddy Current Proximity Sensor
Series
Epro PR6424
Model
PR6424/103-021
Sensor Head Diameter
16 mm
Measurement Principle
Eddy current (non-contact)
Sensitivity
4 V/mm
Linearity
±1.5%
Static Measurement Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Nominal Air Gap
~2.7 mm
Operating Temperature
-35 to 180°C
Target Material
Ferromagnetic steel
Minimum Shaft Diameter
≥80 mm
Weight
0.2 kg (0.44 lb)
Applications
The Epro PR6424/103-021 is used in high-reliability rotating machinery systems where continuous and accurate shaft displacement monitoring is required for protection and predictive maintenance.
It is commonly applied in steam turbines, gas turbines, hydro turbines, centrifugal compressors, pumps, and heavy industrial rotating equipment. In turbine applications, it enables real-time monitoring of radial vibration and axial shaft position. In compressors and pump systems, it supports early detection of mechanical issues such as misalignment, imbalance, rotor instability, and bearing wear.
It is also widely implemented in power generation, oil and gas, and petrochemical facilities where API 670-compliant machinery protection systems require continuous vibration data to ensure safe and stable operation of critical assets.
Advantages
This sensor uses eddy current technology to provide accurate non-contact displacement measurement without mechanical contact or wear.
It delivers stable linear output response, making it suitable for high-speed rotating machinery. The 16mm probe design ensures a stable electromagnetic field distribution, improving measurement consistency across varying shaft conditions.
The PR6424 series is engineered for harsh industrial environments, offering strong resistance to temperature variation, vibration, and electromagnetic interference. Its low drift characteristics support long-term calibration stability, reducing maintenance frequency and improving system uptime in continuous operation environments.
Technical FAQs
Q1: What measurement principle does this sensor use?
It uses eddy current induction for non-contact displacement measurement.
Q2: What is the main function of PR6424/103-021?
It measures shaft vibration, axial displacement, and eccentricity in rotating machinery.
Q3: Where is it typically used?
It is used in turbines, compressors, pumps, and industrial rotating equipment.
Q4: Does it require physical contact with the shaft?
No, it operates without contact.
Q5: Is it suitable for high-speed machinery?
Yes, it is designed for turbomachinery and high-RPM applications.
Q6: What output does it provide?
It works with a compatible signal converter to generate a proportional voltage signal.
Q7: Can it measure both static and dynamic displacement?
Yes, it supports both steady-state and dynamic vibration measurement.
Q8: How does it perform in harsh environments?
It is resistant to vibration, temperature variation, and electromagnetic interference.
Q9: Does it require frequent calibration?
No, it is designed for long-term stability with minimal signal drift.
Q10: What industries commonly use it?
Power generation, oil and gas, petrochemical, and heavy industrial sectors.
