Brand:Epro PLC Item No.:PR6424/103-101 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

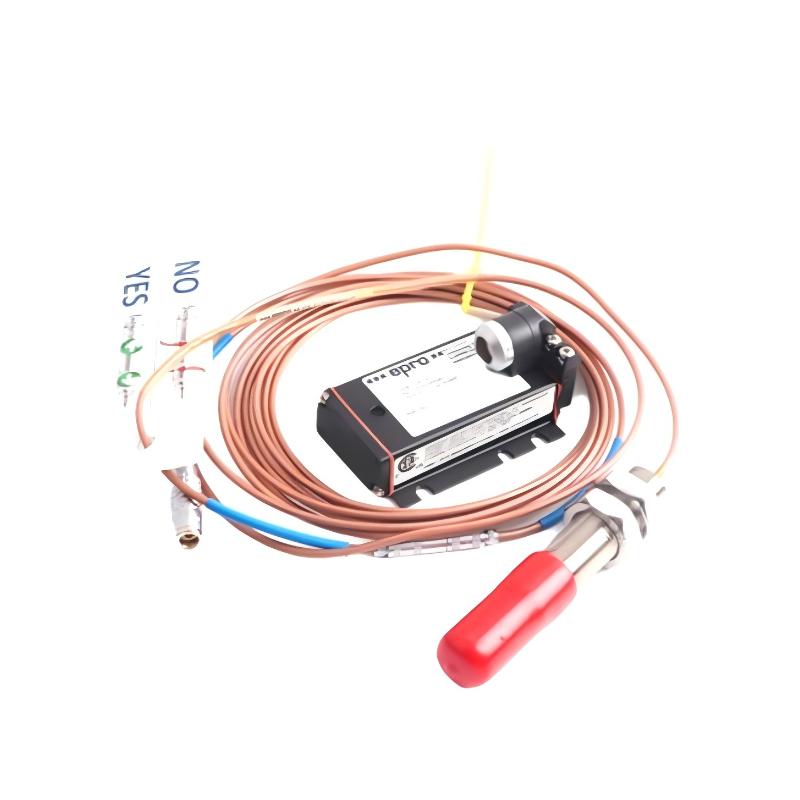

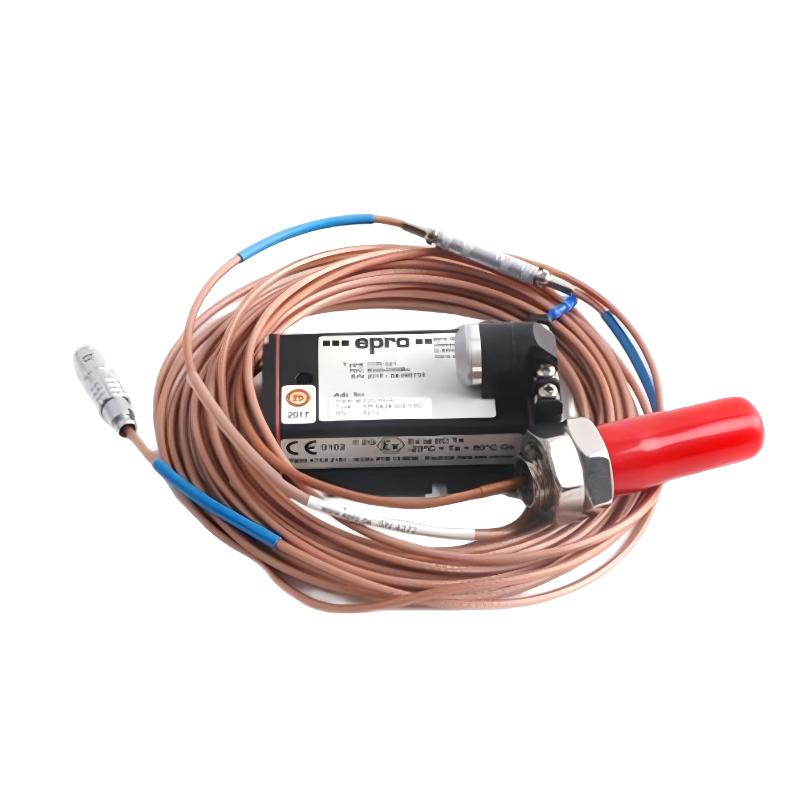

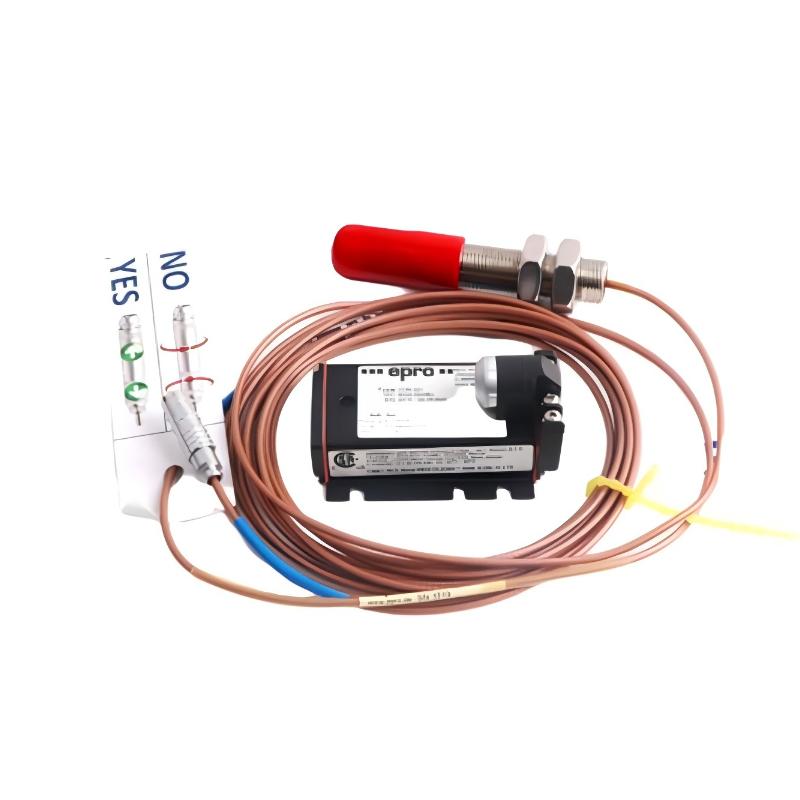

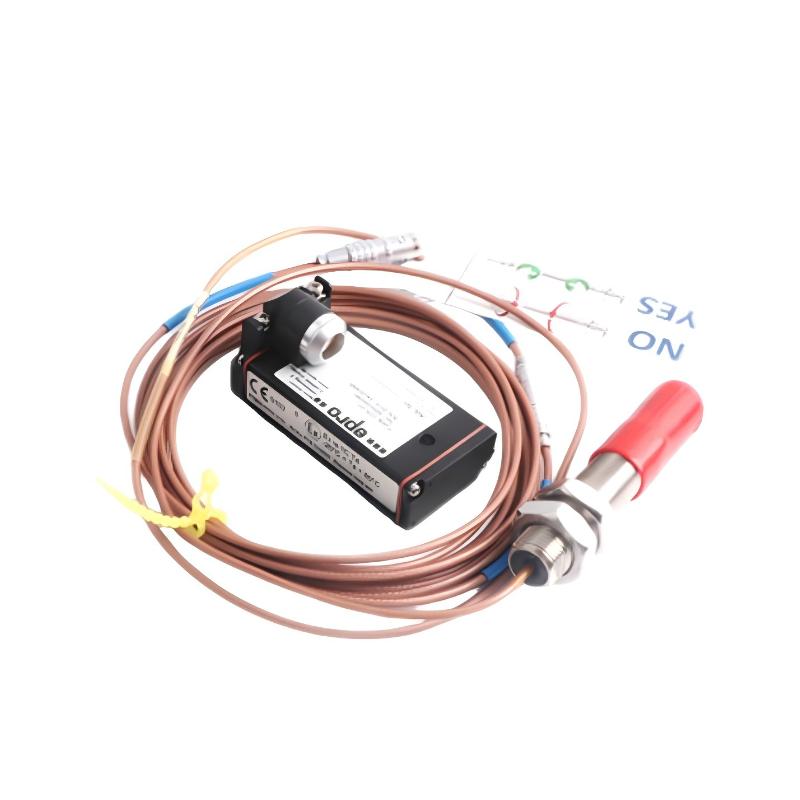

The Epro PR6424/103-101 16 mm Eddy Current Sensor is a precision industrial probe engineered for reliable turbomachinery monitoring. It delivers stable, high-resolution displacement data that supports predictive maintenance strategies and enhances operational safety in critical rotating equipment.
Technical Specifications
Parameter
Specification
Product Model
Epro PR6424/103-101
Sensor Type
Eddy Current Proximity Sensor
Probe Diameter
16 mm
Measurement Principle
Non-contact eddy current
Measurement Range
±2.0 mm (typical system dependent)
Sensitivity
4 V/mm (with compatible converter)
Target Material
Conductive ferromagnetic steel
Operating Temperature
-35°C to +180°C
Cable Length
Typically 4–10 m (system dependent)
Protection Rating
IP65 / IP67 (depending on configuration)
Weight
0.2 kg / 0.44 lb
Applications
The Epro PR6424/103-101 16 mm Eddy Current Sensor is designed for high-precision, non-contact measurement of shaft displacement and vibration in turbomachinery protection and condition monitoring systems. It is widely used where stable dynamic signal accuracy is essential for detecting early mechanical faults and ensuring continuous asset reliability.
Typical applications include steam turbines, gas turbines, hydro turbines, compressors, pumps, and industrial rotating machinery used in power generation, oil & gas, petrochemical, and heavy manufacturing industries.
Advantages
High-resolution eddy current sensing for accurate shaft vibration monitoring
16 mm probe head optimized for compact mechanical installation
Non-contact measurement reduces wear and improves long-term stability
Excellent performance under high temperature and high vibration conditions
Compatible with Epro CON series signal conditioning modules (e.g., CON011 / CON021)
Stable linear response ensures reliable protection system integration
Designed for API 670-compliant machinery monitoring architectures
Technical FAQs
Q1: What measurement principle does this sensor use?
A: It uses eddy current technology to measure displacement without physical contact.
Q2: What is the main function of this sensor?
A: It measures shaft vibration, axial position, eccentricity, and dynamic displacement.
Q3: What systems is it compatible with?
A: It works with Epro/Emerson signal converters such as CON011, CON021, and similar modules.
Q4: Is this sensor suitable for turbine applications?
A: Yes, it is widely used in steam, gas, and hydro turbines.
Q5: What kind of output does it produce?
A: It generates a signal proportional to the gap distance when paired with a converter.
Q6: Can it operate in harsh environments?
A: Yes, it is designed for high temperature and high vibration industrial conditions.
Q7: Does it require contact with the shaft?
A: No, it is a non-contact measurement sensor.
Q8: What parameters can it measure?
A: Radial displacement, axial position, vibration, and eccentricity.
Q9: Is calibration required?
A: Yes, system calibration is required with the signal conditioning unit.
Q10: Is it part of a full monitoring system?
A: Yes, it operates as part of a complete eddy current measurement chain including probe and converter.
