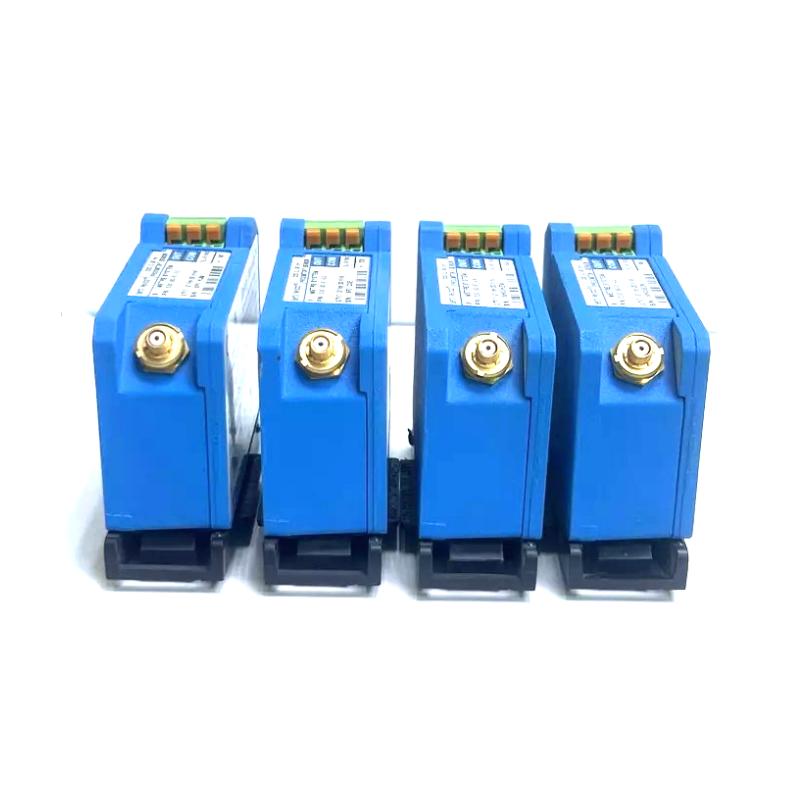

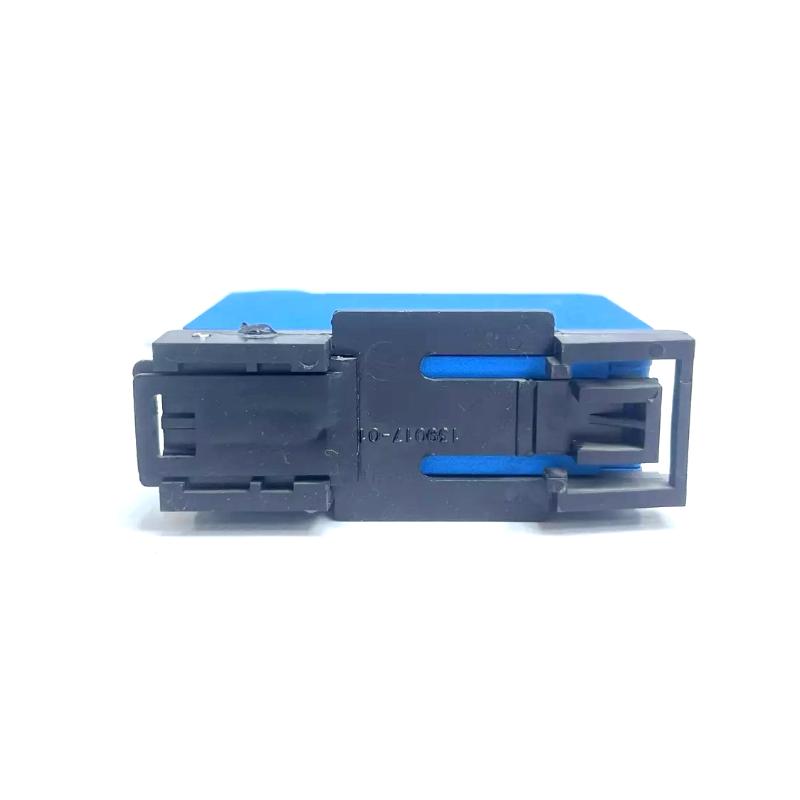

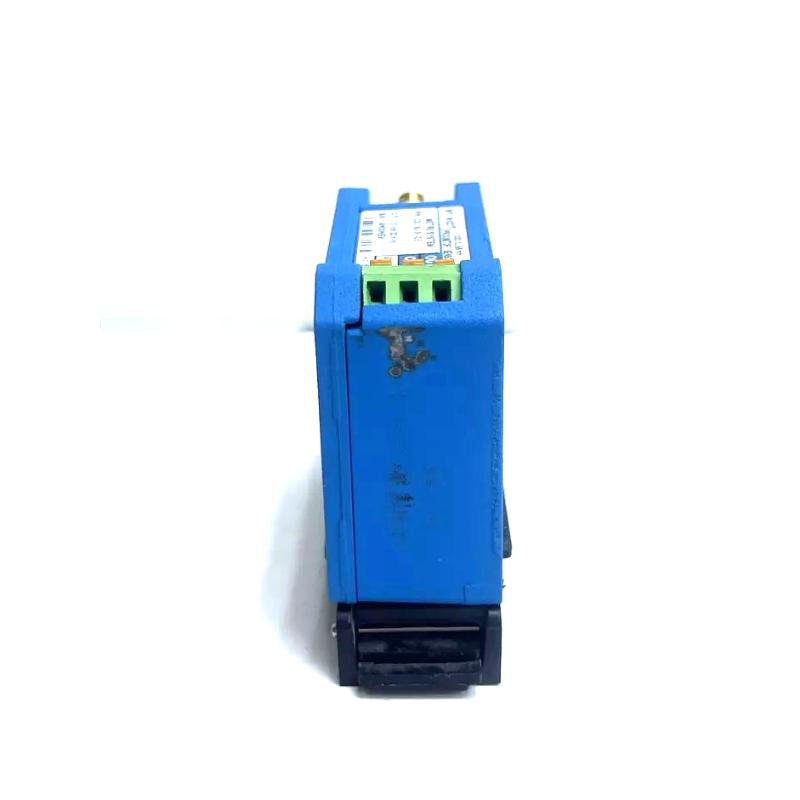

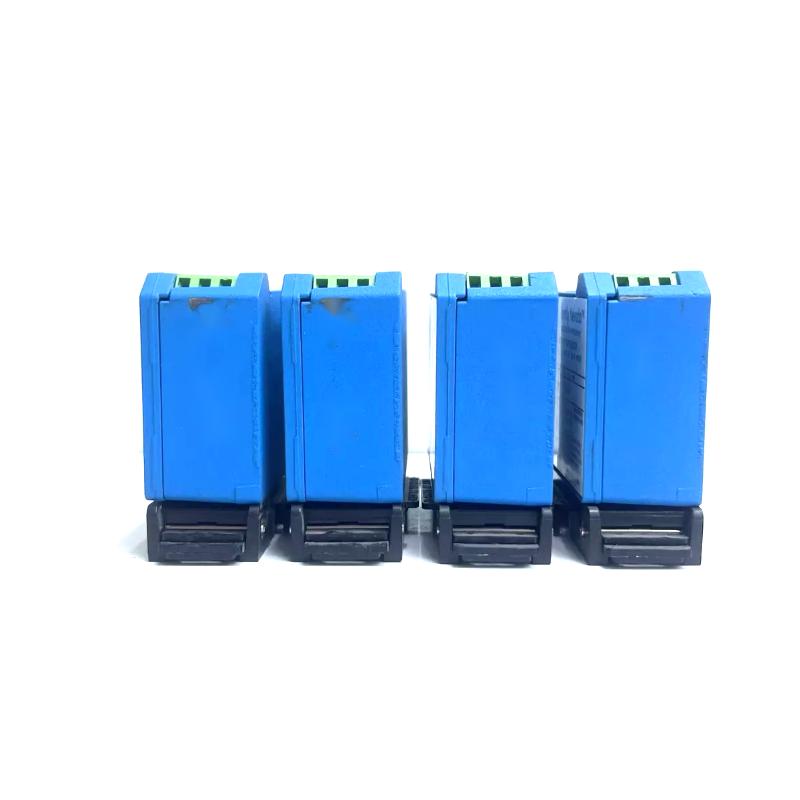

The Bently Nevada 330180-91-BR Proximitor Sensor Module is an industrial signal conditioning device used in machinery condition monitoring systems. It processes eddy current probe signals for vibration and shaft displacement measurement, supporting stable operation in rotating equipment monitoring applications.
It is commonly integrated into 3300 XL series systems and used across power generation, oil & gas, and heavy industrial environments where consistent measurement performance is required.
Technical Specifications
| Category | Details |
|---|---|
| Model | 330180-91-BR |
| Series | 3300 XL System |
| Function | Proximitor signal conditioning module |
| Input Type | Eddy current proximity probe system |
| Compatible System | 3300 XL probe & extension cable series |
| Output Signal | Conditioned analog displacement signal |
| Mounting Type | Panel / rack installation |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -51°C to +105°C |
| Housing Material | Industrial-grade aluminum alloy |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 200 mm × 120 mm × 70 mm |
| Weight | 0.2 – 0.6 kg |
The compact structure allows easy installation in control cabinets while maintaining wiring accessibility and system layout efficiency.
