Brand:Schneider PLC Item No.:171CCS78000 Product Origin:France Product Dimensions:Packaging Dimensions: 60 x 180 x 260 mm Product Weight:0.042 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

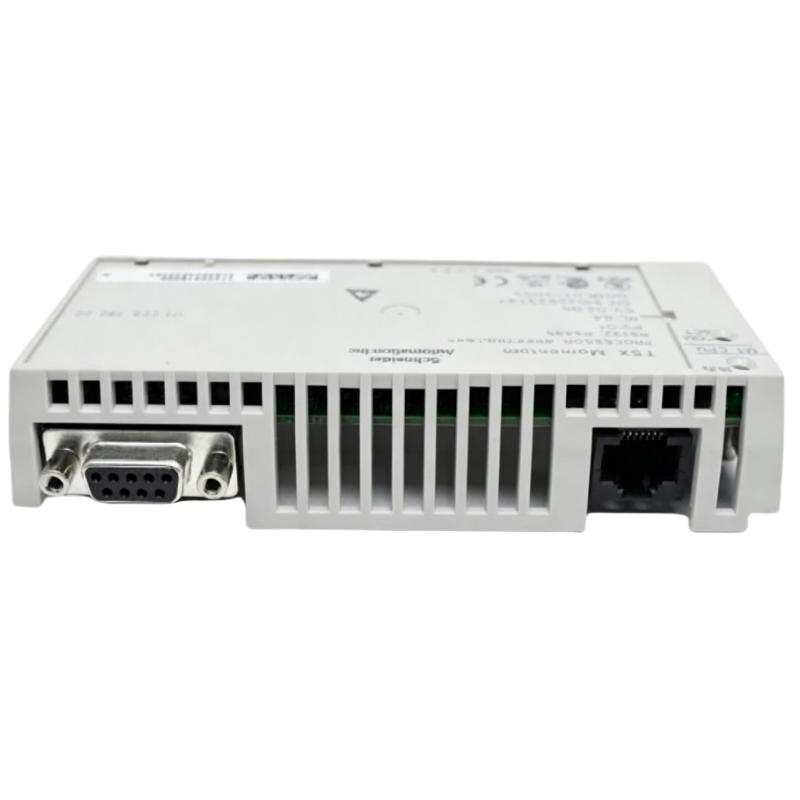

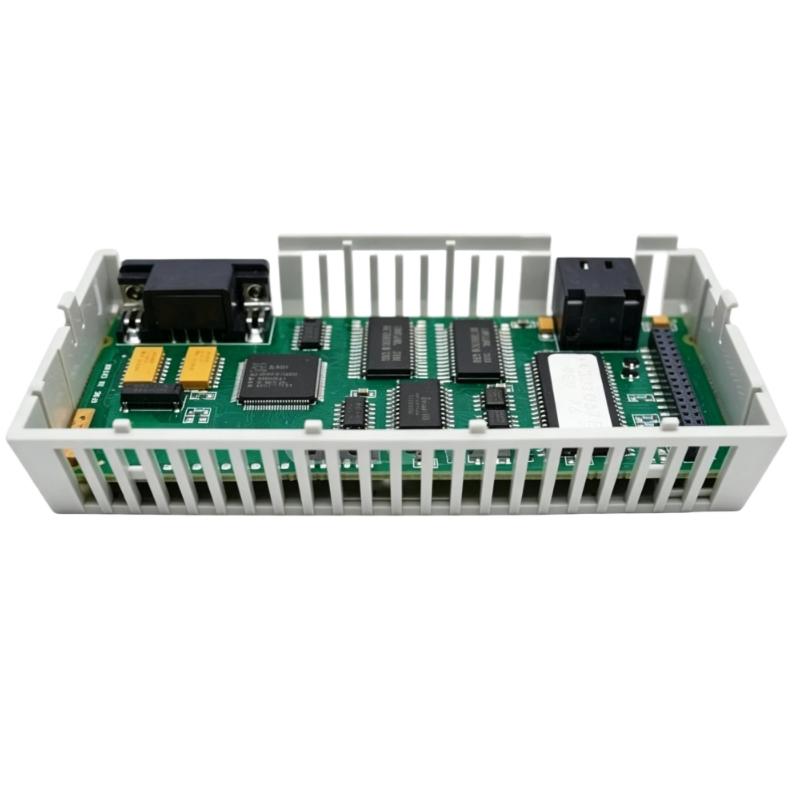

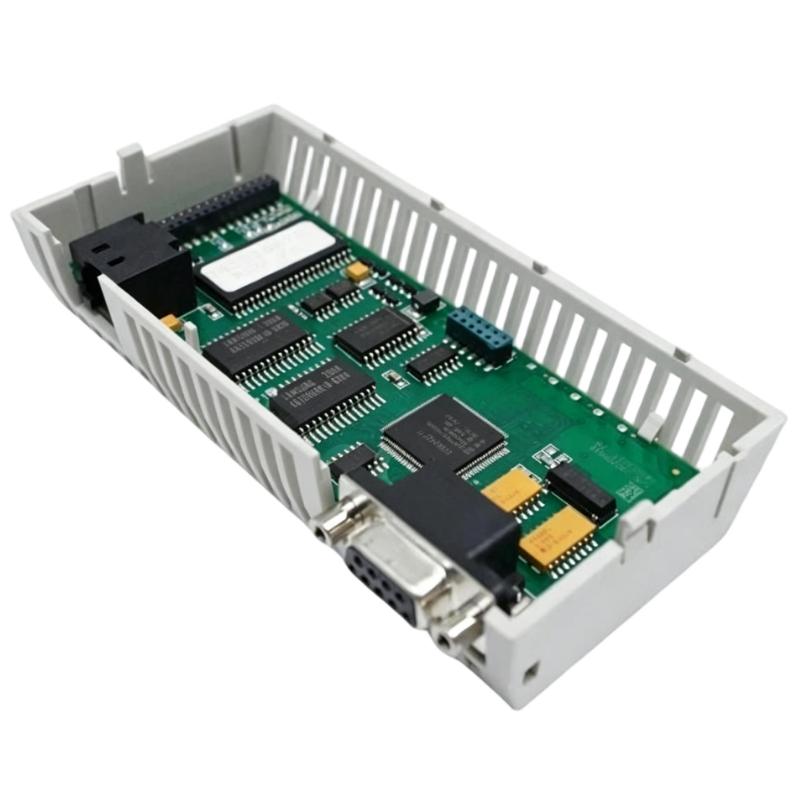

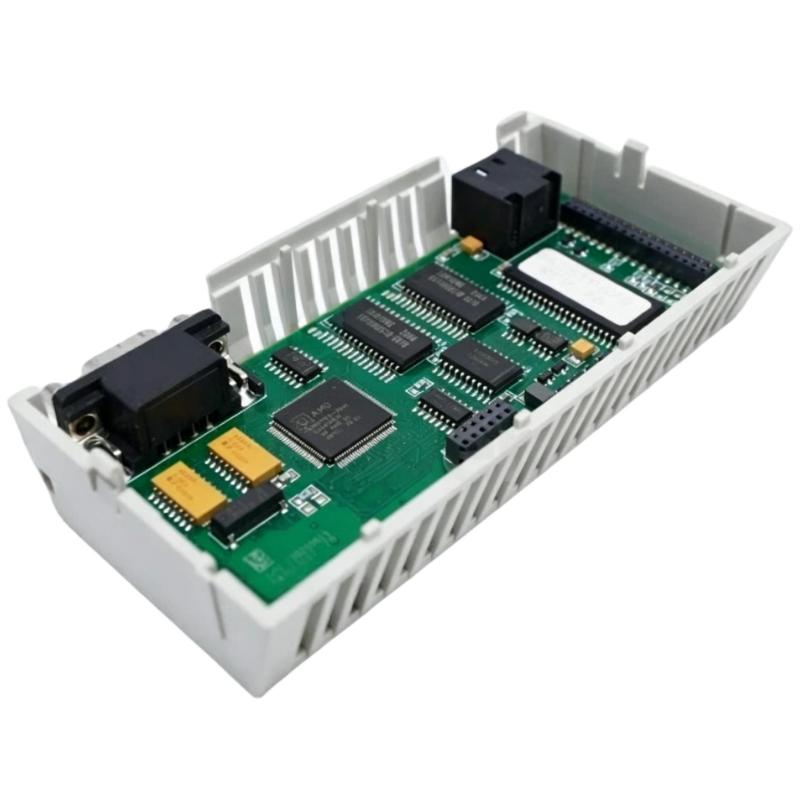

The Schneider 171CCS78000 M1/M1E Processor Adapter is designed to ensure stable communication between processor modules and Modicon Momentum I/O systems. It plays a key role in maintaining coordination and structural integrity within modular PLC architectures.
Technical Specifications
Parameter
Specification
Product Model
Schneider 171CCS78000
Product Type
M1/M1E Processor Adapter
System Platform
Modicon Momentum
Function
Processor Interface Module
Communication
System Backplane
Mounting Method
Rack / Base Mount
Operating Environment
Industrial Automation Systems
Packaging Dimensions
60 × 180 × 260 mm
Weight
0.042 kg
Recommended Related Models
Model
Product Name
Schneider 171CCS76000
M1/M1E Processor Adapter
Schneider 171CBU98090
Unity M1E Processor
Schneider 170ENT11002
Ethernet Communication Adapter
Schneider 170PNT11020
Modbus Plus Communication Adapter
Popular Related Models
Model
Product Name
Schneider 170ADI35000
Discrete Input Module
Schneider 170ADO35000
Discrete Output Module
Schneider 170AAI52040
Analog Input Module
Schneider 170AAO92100
Analog Output Module
Applications
• Used as a processor adapter in Modicon Momentum M1/M1E automation systems.
• Enables communication between processor modules and I/O bases in distributed control architectures.
• Supports industrial automation logic execution in manufacturing environments.
• Applied in machine control systems requiring stable processor-level coordination.
• Integrates into utility, energy, and infrastructure automation networks.
• Supports system expansion and modular PLC architecture design.
• Used in legacy and upgraded Momentum control systems.
Key Advantages
• Ensures stable processor-to-system communication in Momentum architectures.
• Designed for reliable operation in continuous industrial environments.
• Supports modular expansion of distributed automation systems.
• Compact structure suitable for control cabinet integration.
• Enhances system coordination between processor and I/O modules.
• Compatible with legacy and modernized Modicon Momentum systems.
• Improves system stability and control efficiency in industrial applications.
Technical FAQs
1. What is the main function of the 171CCS78000 module?
It acts as a processor adapter for Modicon Momentum M1/M1E systems.
2. Which system is it designed for?
It is designed for Schneider Electric Modicon Momentum automation platforms.
3. What role does it play in the system?
It connects processor modules with I/O bases for system coordination.
4. Is it used in distributed control systems?
Yes, it supports distributed automation architectures.
5. Can it be used for system expansion?
Yes, it is commonly used in scalable Momentum systems.
6. Does it support legacy systems?
Yes, it is used in M1/M1E legacy automation configurations.
7. How does it improve system performance?
It ensures stable communication between system components.
8. What industries use this module?
Manufacturing, utilities, and infrastructure automation systems.
9. Is it suitable for retrofit projects?
Yes, it is widely used in system upgrades and modernization.
10. Does it require special configuration tools?
Yes, configuration is handled via Schneider system software.
