Brand:Schneider PLC Item No.:ATS01N103FT Product Origin:France Product Dimensions:100 x 23 x 100 mm Product Weight:0.16 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

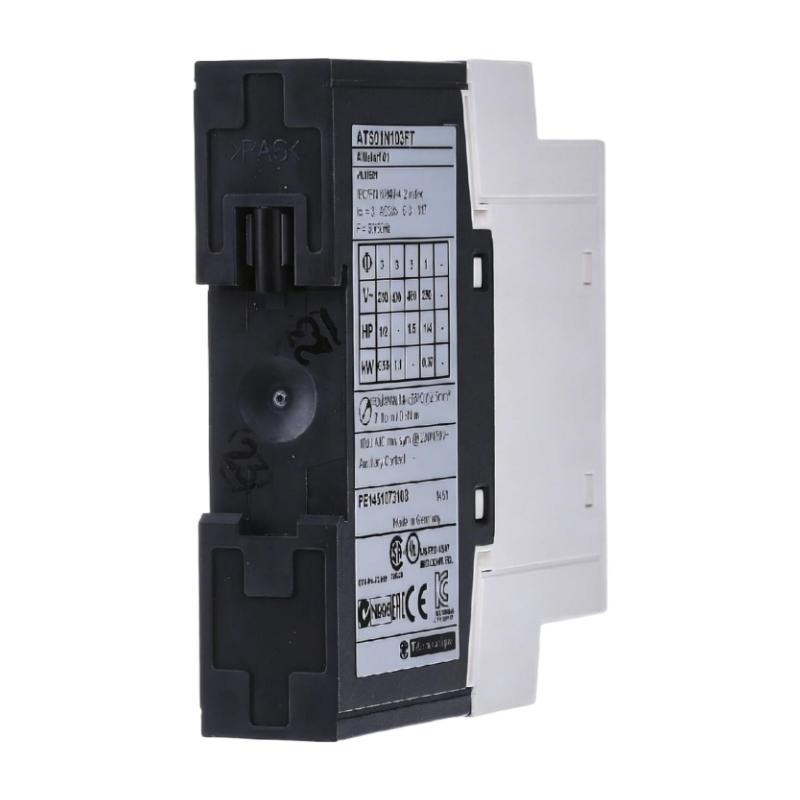

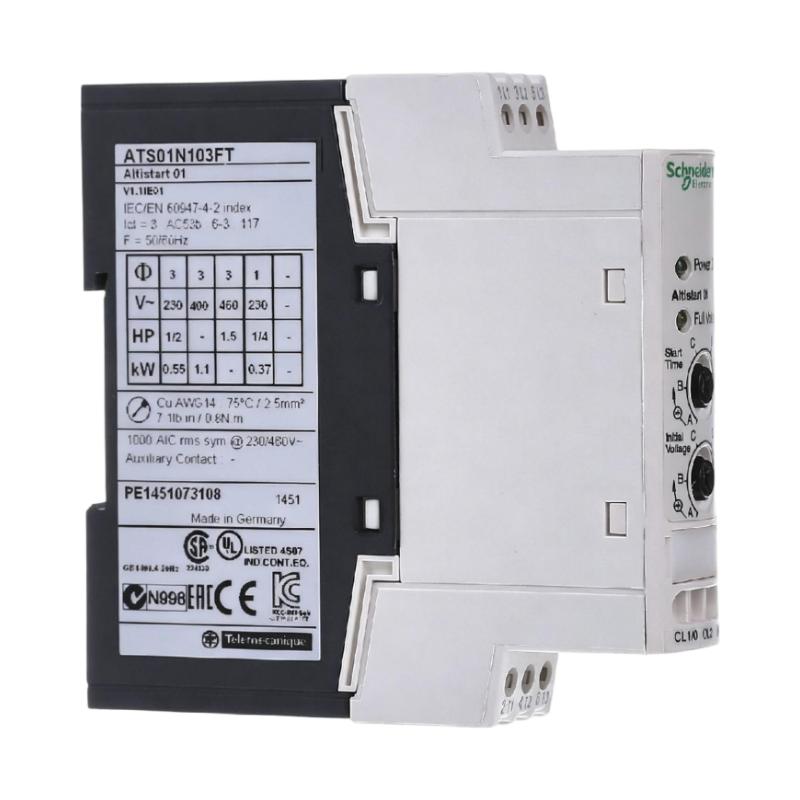

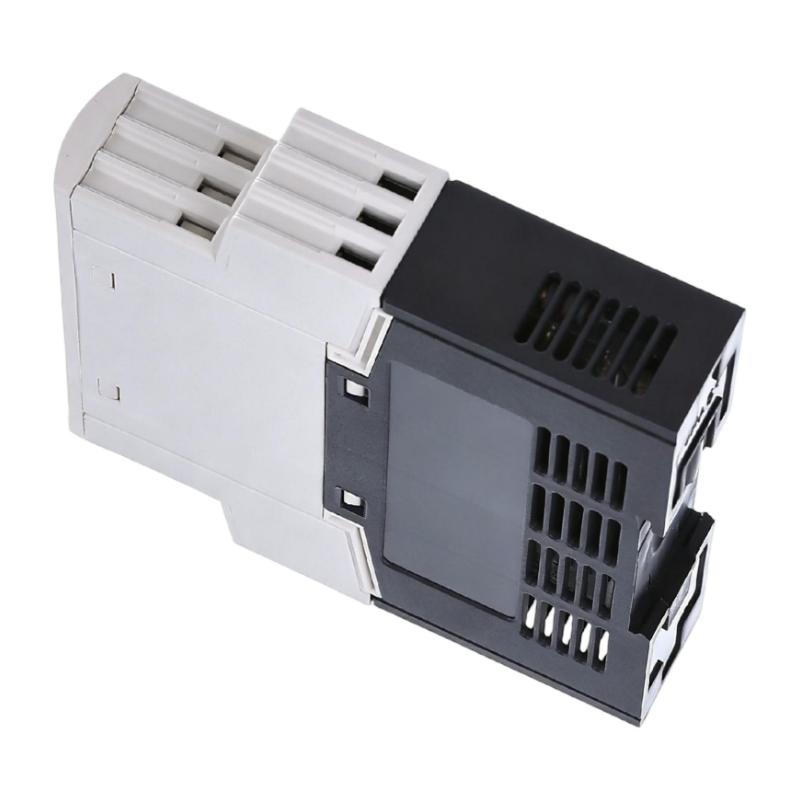

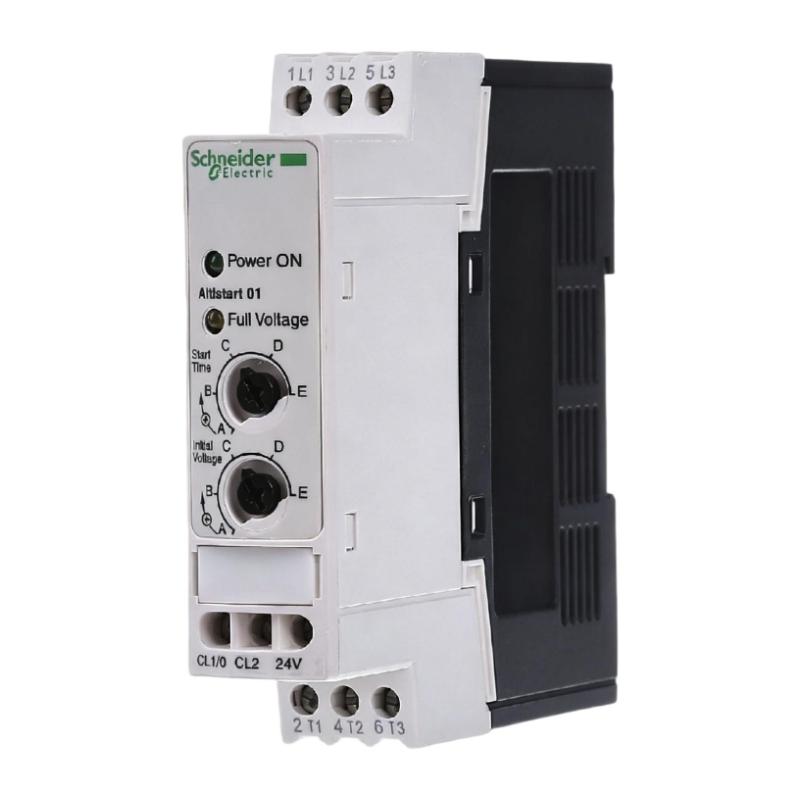

The Schneider ATS01N103FT is a compact soft starter designed for small motor applications where smooth acceleration is more important than complex control. Instead of applying full voltage instantly, it gradually ramps the motor up to speed, which helps reduce stress on both the motor and the electrical supply.
Technical Specifications
Parameter
Specification
Product Model
Schneider ATS01N103FT
Product Type
Soft Starter
Product Range
Altistart 01
Rated Current
3 A
Supply Voltage
110–480 V AC
Motor Power Range
Up to 1.1 kW (depending on supply)
Mounting Method
DIN Rail / Panel Mount
Protection Degree
IP20
Operating Temperature
-10 to 40 °C
Dimensions
100 × 23 × 100 mm
Weight
0.16 kg
Recommended Related Models
Model
Product Name
Schneider ATS01N106FT
Soft Starter 6A Model
Schneider ATS01N109FT
Soft Starter 9A Model
Schneider ATV12H018M2
Compact Variable Speed Drive
Schneider ATV320U04M2
Compact Industrial Drive
Popular Related Models
Model
Product Name
Schneider ATS01N103FT
Soft Starter 3A Model
Schneider ATS01N112FT
Soft Starter 12A Model
Schneider ATV12H037M2
Variable Speed Drive
Schneider ATV310HU15N4
Industrial Drive Inverter
Applications
• Used for smooth starting of small three-phase motors in pumps, fans, and light compressors.
• Common in conveyor systems where gradual acceleration helps avoid mechanical shock.
• Suitable for HVAC equipment to improve startup stability and reduce electrical stress.
• Applied in small machinery where direct-on-line starting may cause current spikes.
• Often used in OEM control panels for compact automation solutions.
• Helps stabilize power systems in installations with multiple motor loads.
• Works well in general industrial environments with standard duty requirements.
Key Advantages
• Reduces sudden current peaks during motor startup, helping protect the electrical network.
• Soft acceleration improves mechanical lifespan of pumps, belts, and rotating equipment.
• Compact housing makes it easy to fit into tight control cabinets.
• Straightforward setup with minimal configuration required.
• Helps reduce wear caused by repeated start-stop cycles.
• Suitable for a wide range of light industrial motor applications.
• Reliable operation in everyday industrial conditions without complex tuning.
Technical FAQs
1. What does this soft starter actually do?
It gradually increases motor voltage during startup, instead of applying full power instantly.
2. Where is it typically used?
In small pumps, fans, conveyors, and light-duty industrial machines.
3. Does it help reduce power surges?
Yes, it significantly reduces inrush current when the motor starts.
4. Can it improve mechanical lifespan?
Yes, smoother starts reduce mechanical stress on connected equipment.
5. Is it complicated to install?
No, it is designed for simple panel installation and basic wiring.
6. Can it be used in HVAC systems?
Yes, it is commonly used in ventilation and air handling units.
7. Is it suitable for heavy industrial motors?
No, it is intended for small motor applications only.
8. Does it require programming?
No complex programming is needed for basic operation.
9. What happens during motor stop?
It can also provide controlled deceleration depending on setup.
10. Why use a soft starter instead of direct start?
To reduce electrical stress and mechanical impact during startup.
