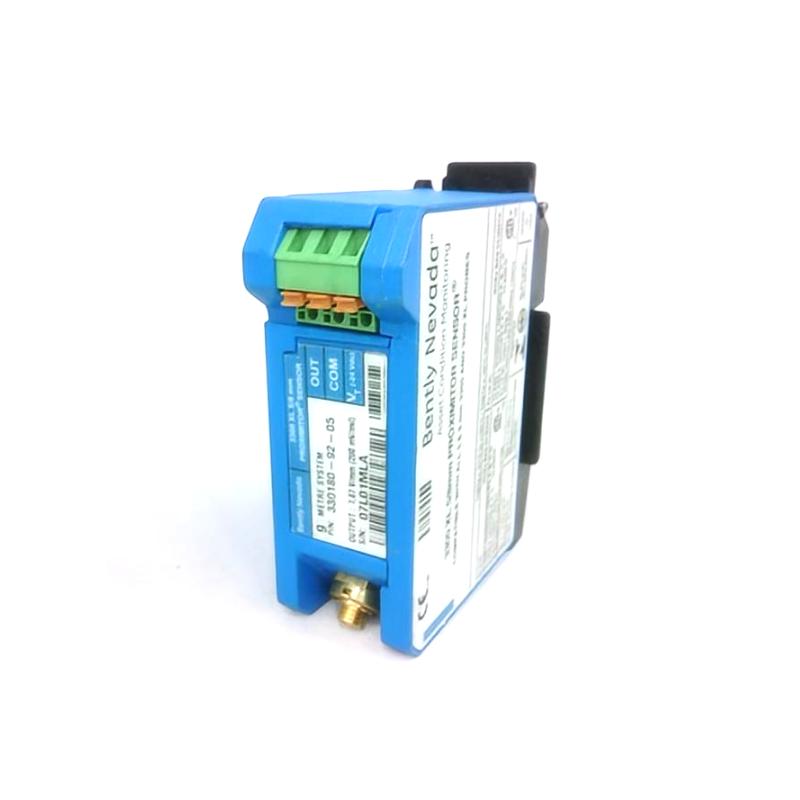

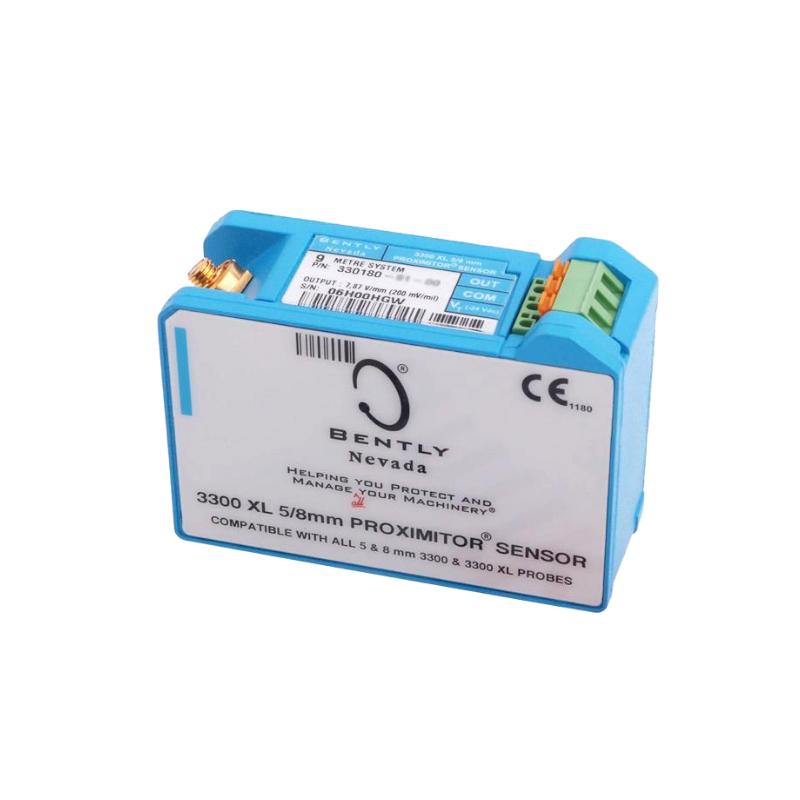

The Bently Nevada 330180-92-05 Proximitor Sensor Module is part of the 3300 XL proximity measurement system used in industrial rotating machinery monitoring applications. It is designed to process eddy current probe signals and convert them into stable, calibrated outputs for vibration and shaft displacement measurement.
This model is typically applied in power generation, oil & gas, petrochemical, and heavy industrial monitoring systems where stable signal transmission and standardized installation are required.
Technical Specifications
| Category | Details |
|---|---|
| Model | 330180-92-05 |
| Series | 3300 XL System |
| Function | Proximitor signal conditioning module |
| Input Type | Eddy current proximity probe system |
| Compatible System | 3300 XL probe & extension cable series |
| Output Signal | Conditioned analog displacement signal |
| Mounting Type | Panel / DIN rail installation |
| Housing Material | Industrial-grade aluminum alloy |
| Operating Temperature | -40°C to +100°C (typical industrial range) |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 88 mm × 34 mm × 70 mm |
| Weight | 0.22 kg |
The compact footprint supports high-density installation inside control cabinets, making it suitable for modular monitoring system designs.
Recommended Related Models
- 330104 Proximity Probe Series
- 330130 Extension Cable Series
- 330180 Series Variants (91-BR / 91-CN / 91-RU / 91-KZ)
- 3300 XL System Mounting Accessories
- 3500 Monitoring System Modules
Popular Bently Nevada Models
Within industrial condition monitoring systems from Bently Nevada, commonly used product families include:
- 330180 Proximitor Sensor Series
- 330104 Proximity Probe Series
- 330130 Extension Cable Series
- 3500 Machinery Protection System Modules
- 3300 XL Monitoring System Components
These product lines are widely used in rotating machinery protection and predictive maintenance systems.
