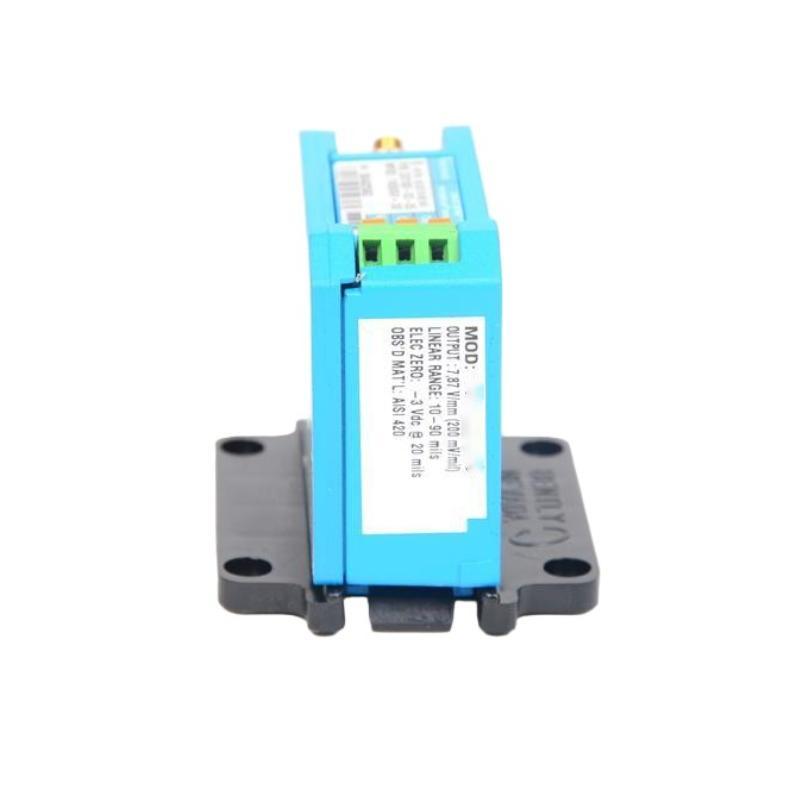

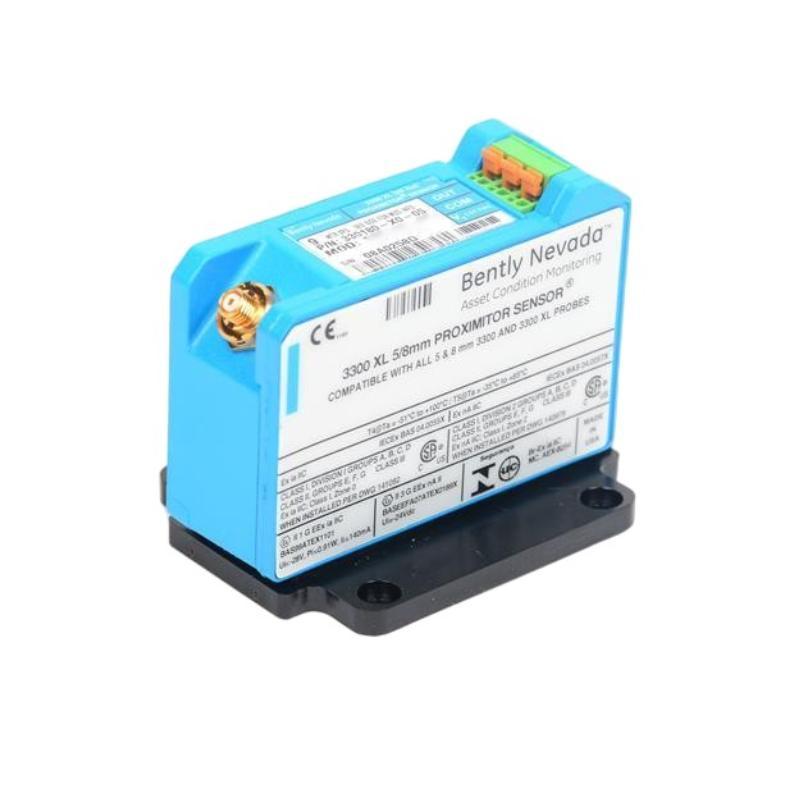

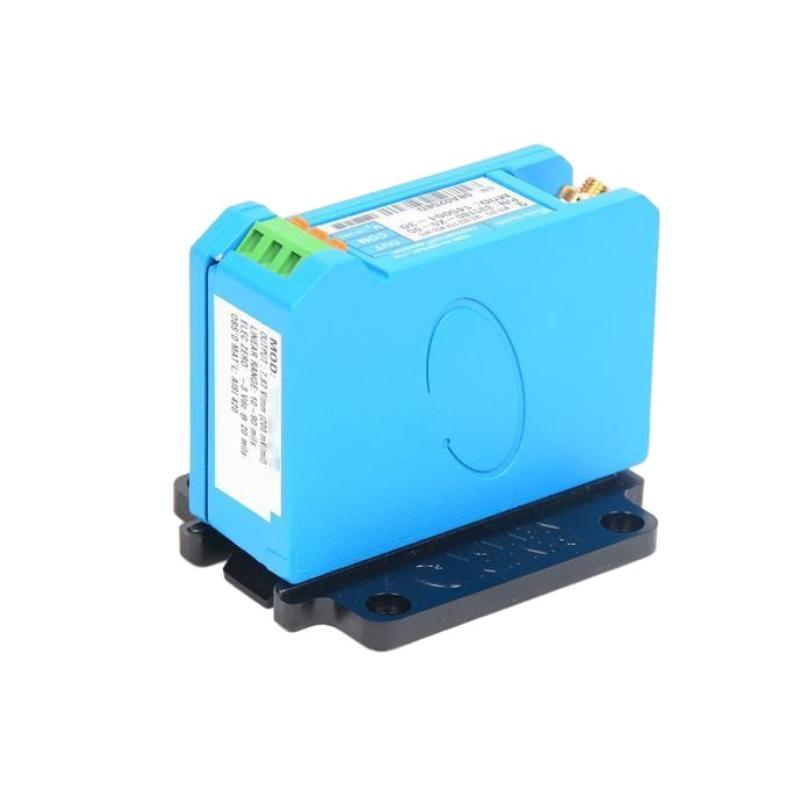

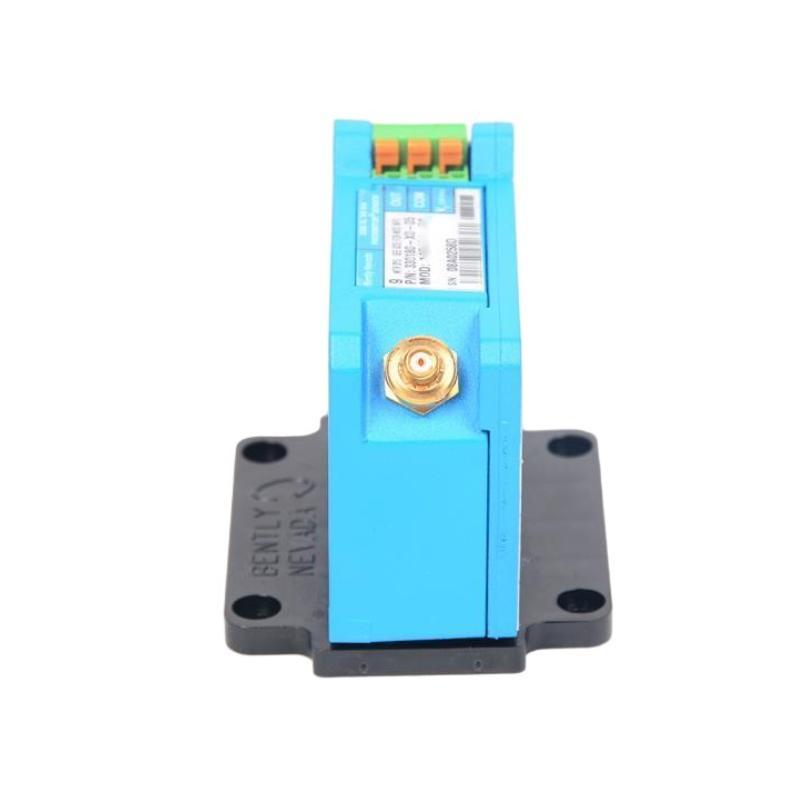

The Bently Nevada 330180-X0-05 / 145004-05 Proximitor Sensor Module is part of the 3300 XL proximity transducer system used for industrial machinery condition monitoring. It is designed to interface with eddy current proximity probes and provide stable signal conditioning for vibration and shaft displacement measurement applications.
This module is typically installed in control cabinets or rack-based monitoring systems and is widely used in rotating machinery protection systems across power generation, oil & gas, petrochemical, and industrial processing environments.
Technical Specifications
| Category | Details |
|---|---|
| Model | 330180-X0-05 / 145004-05 |
| Series | 3300 XL System |
| Function | Proximitor signal conditioning module |
| Input Type | Eddy current proximity probe system |
| Compatible System | 3300 XL probe and extension cable system |
| Output Signal | Conditioned analog displacement signal |
| Mounting Type | Panel / rack installation |
| Housing Material | Industrial-grade aluminum alloy |
| Operating Temperature | -40°C to +85°C (typical industrial range) |
| Power Supply | System-dependent DC supply |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 81 mm × 50 mm × 64 mm |
| Weight | Approx. 0.22 – 0.25 kg |
The compact structure supports dense cabinet installation while maintaining stable electrical performance and standardized wiring layout.
