Bently Nevada 330180-X1-05 143416-49 3300 XL 8 mm Preamplifier Sensor
Bently Nevada 330180-X1-05 143416-49 3300 XL 8 mm Preamplifier Sensor
0.0
Points
Brand:Bently Nevada PLC Item No.:330180-X1-05 Product Origin:USA Product Dimensions:81.3 x 35.1 x 63.5 mm Product Weight:0.246 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

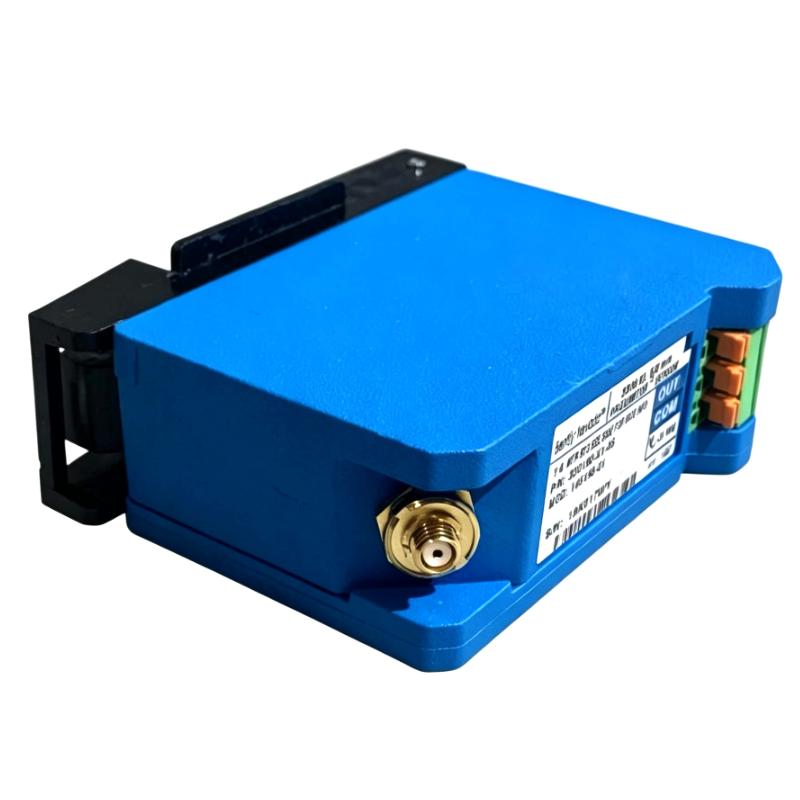

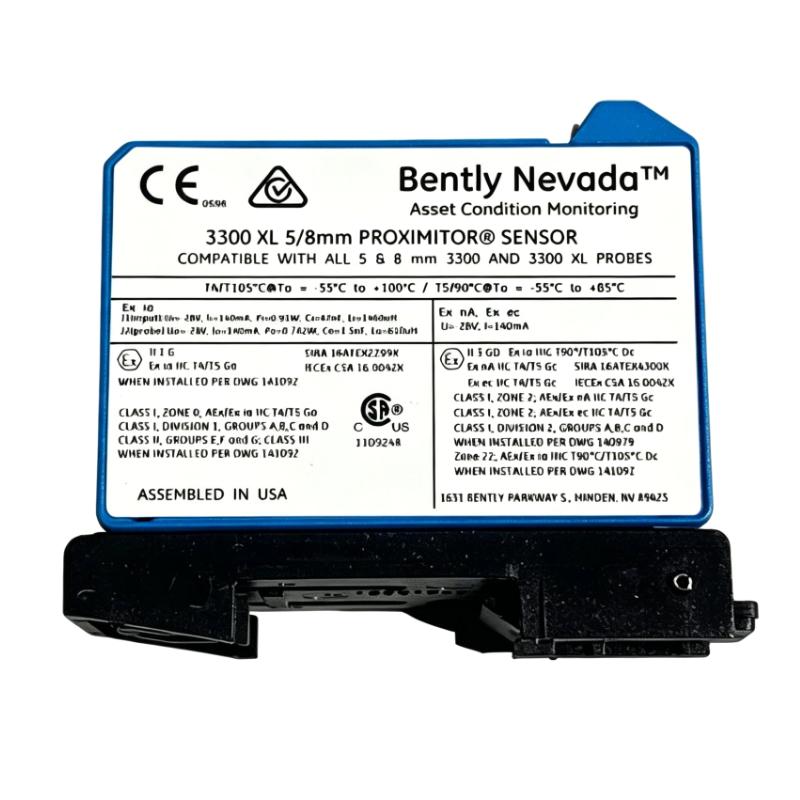

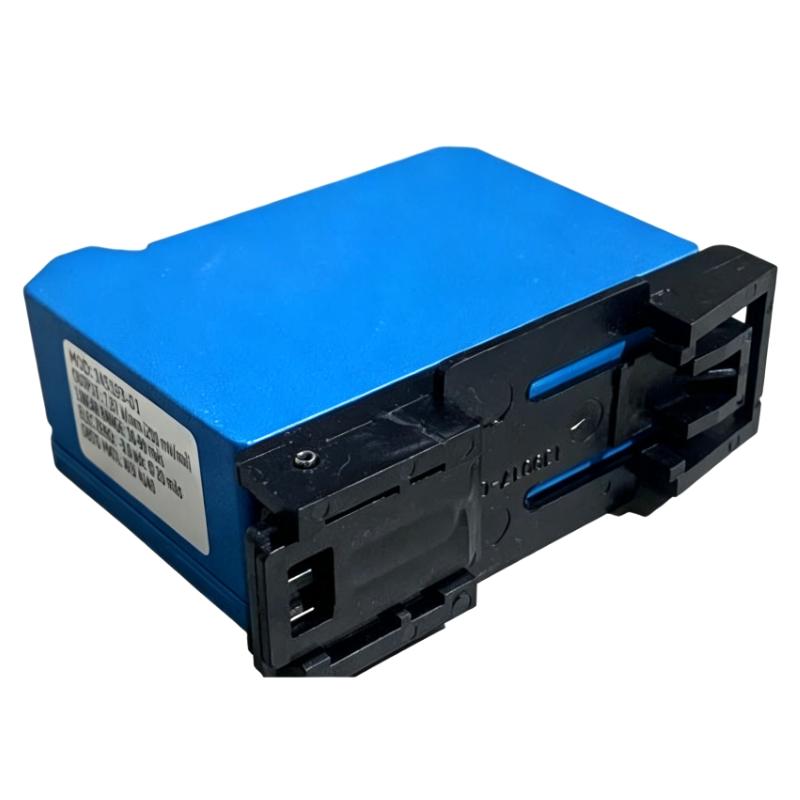

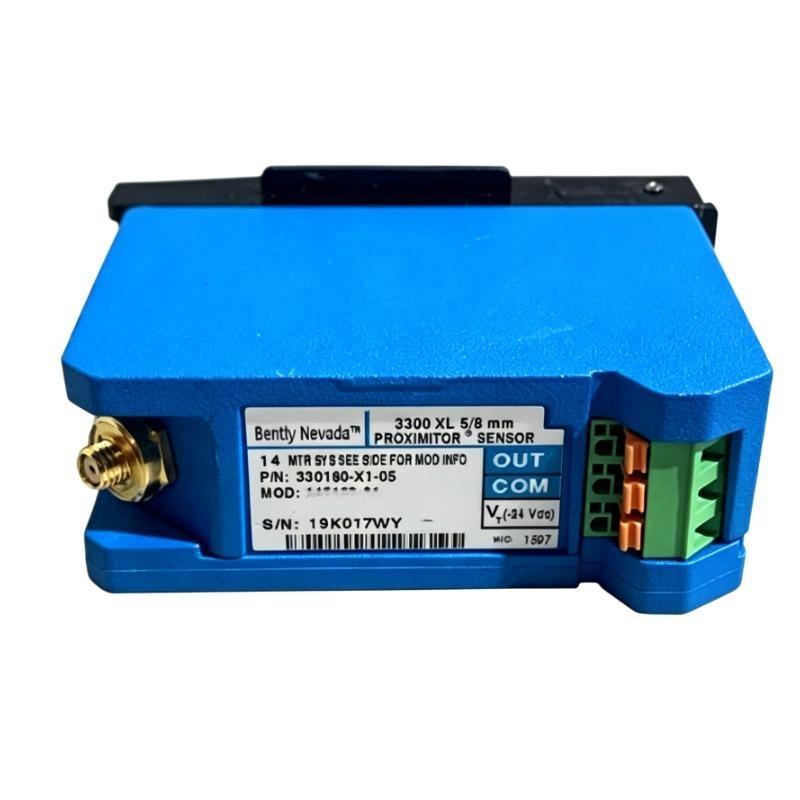

The Bently Nevada 330180-X1-05 (143416-49) is a 3300 XL 8 mm preamplifier sensor used in vibration monitoring systems. It serves as the key signal conditioning component that links proximity probes with monitoring and protection equipment.
In industrial applications, it is widely used for measuring shaft vibration and position in rotating machinery such as turbines, compressors, and pumps. Its role is critical because it ensures that raw sensor signals are converted into stable and usable electrical outputs.
Technical Specifications
Parameter
Specification
Product Model
330180-X1-05 / 143416-49
Product Type
3300 XL 8 mm Preamplifier Sensor
System
Bently Nevada 3300 XL
Function
Signal Conditioning Unit
Input
8 mm Proximity Probe System
Output
Linear Voltage Signal
Mounting
Panel / DIN rail mount
Operating Environment
Industrial machinery monitoring
Dimensions
81.3 × 35.1 × 63.5 mm
Weight
0.246 kg
Recommended Related Models
Model
Product Name
Bently Nevada 330130-080-10-05
8 m Extension Cable
Bently Nevada 330130-045-11-00
4.5 m Extension Cable
Bently Nevada 330105-02-12-15-12-05
Reverse Mount Probe
Bently Nevada 330104-03-18-50-02-RU
8 mm Proximity Probe
Popular Related Models
Model
Product Name
Bently Nevada 3300 XL 8 mm Probe System
Proximity Measurement System
Bently Nevada 3300 XL Extension Cable Series
Signal Transmission Cables
Bently Nevada 3300 XL Proximitor Sensor Series
Conditioning Modules
Bently Nevada 3500/42M Vibration Monitor
Machinery Monitoring Module
Applications
• Used as the signal conditioning unit in the Bently Nevada 3300 XL 8 mm proximity transducer system.
• Converts raw probe eddy current signals into stable voltage outputs for vibration and displacement monitoring.
• Applied in turbines, compressors, pumps, and other rotating machinery protection systems.
• Used in condition monitoring systems across power generation, oil & gas, and heavy industry.
• Supports continuous monitoring of shaft vibration and position in critical assets.
• Integrated into predictive maintenance systems for early fault detection and machinery protection.
• Installed in control cabinets as part of complete proximity measurement chains.
Key Advantages
• Provides stable and accurate signal conversion for proximity measurement systems.
• Designed specifically for Bently Nevada 3300 XL probe and cable assemblies.
• High resistance to electrical noise ensures reliable industrial signal output.
• Compact housing allows easy installation in dense control panel layouts.
• Supports long-term operation in harsh industrial environments.
• Maintains measurement consistency across full system configurations.
• Widely used in critical rotating equipment monitoring applications.
Technical FAQs
1. What is the function of the 330180-X1-05 sensor?
It acts as a proximitor (preamplifier) that converts probe signals into usable measurement outputs.
2. What system is it used with?
It is part of the Bently Nevada 3300 XL 8 mm proximity transducer system.
3. What does it measure indirectly?
It supports measurement of shaft vibration and displacement when paired with a probe and cable.
4. Is it a standalone device?
No, it works as part of a full system including probe, cable, and sensor.
5. Where is it typically installed?
Inside control panels or industrial monitoring cabinets.
6. What industries use it?
Power generation, petrochemical, oil & gas, and heavy manufacturing.
7. Is it suitable for harsh environments?
Yes, it is designed for industrial-grade reliability.
8. What is the role in the system chain?
It conditions the signal between the probe and monitoring equipment.
9. Can it be replaced individually?
Yes, it is a modular component of the 3300 XL system.
10. Why is it important in machinery protection?
Because it ensures accurate signal conversion for reliable monitoring decisions.
