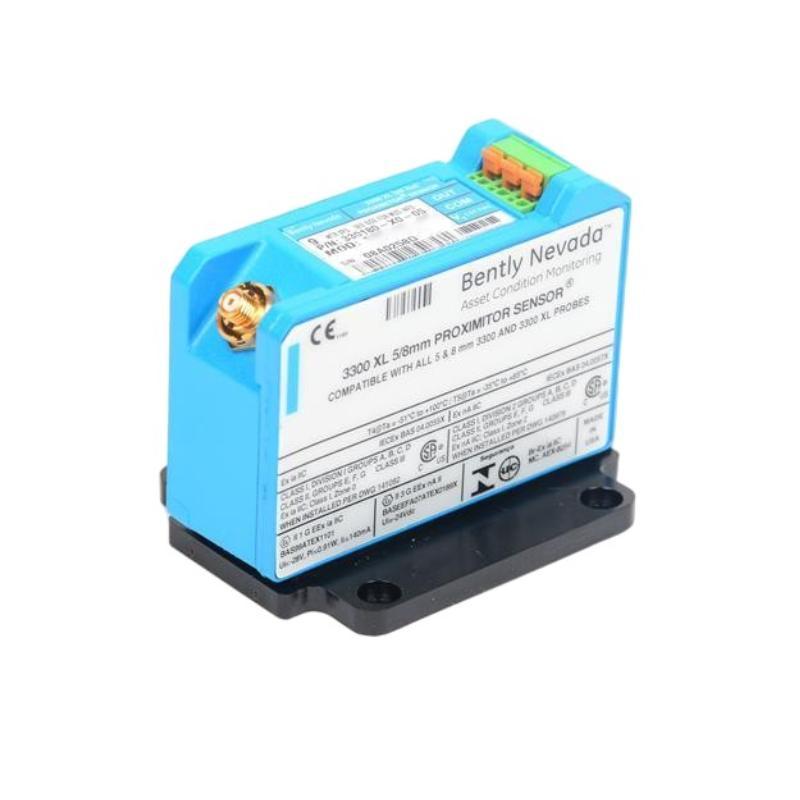

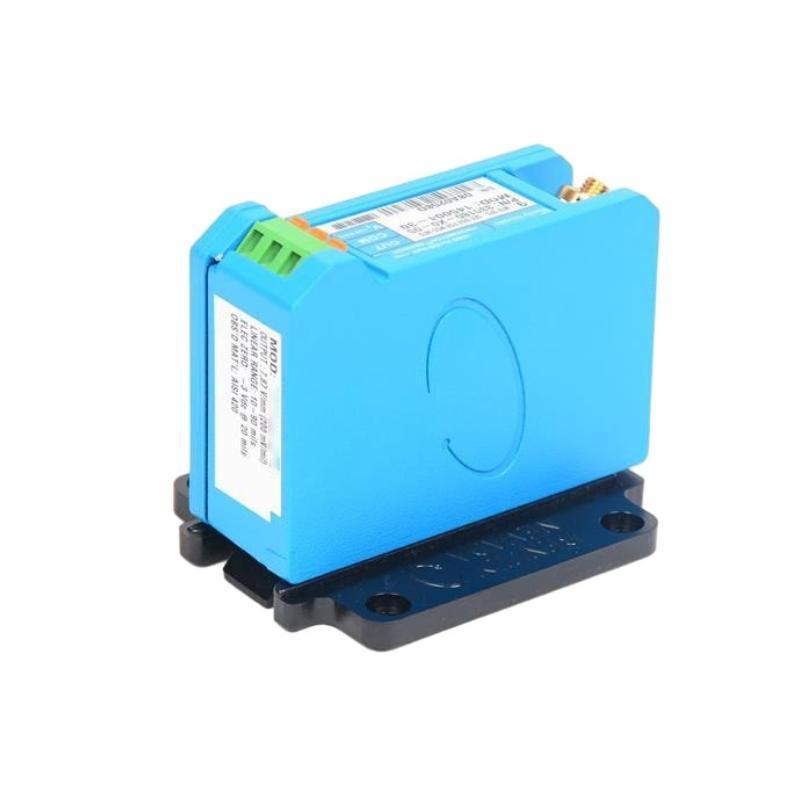

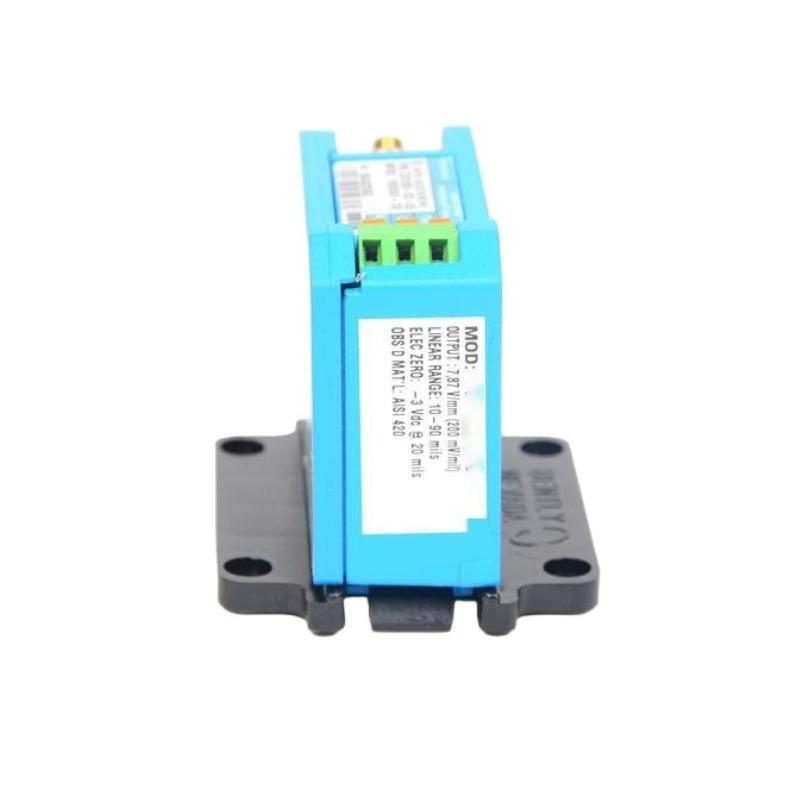

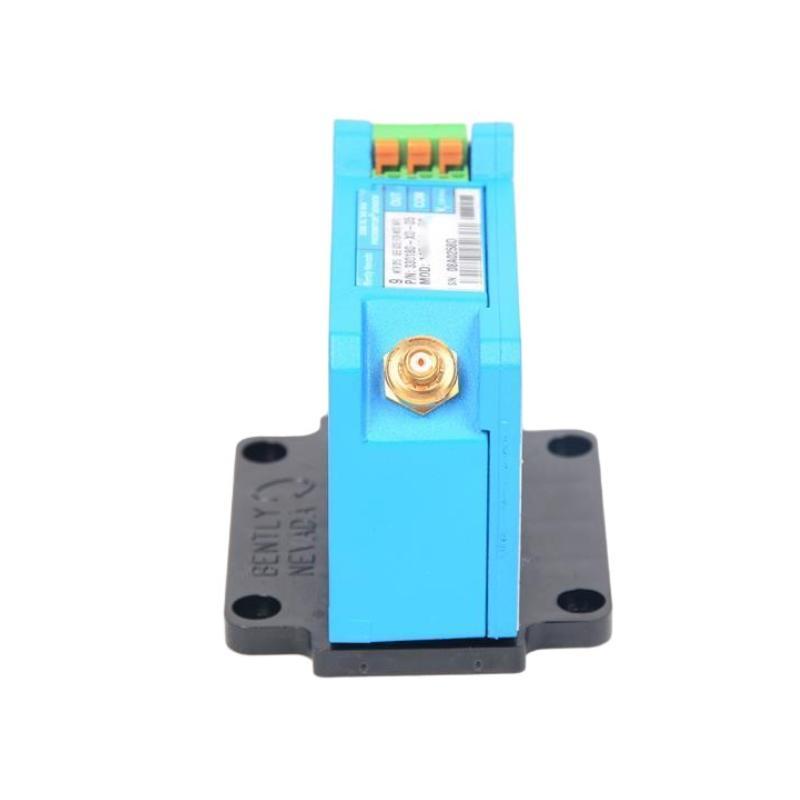

The Bently Nevada 330180-X1-05 / 145004-14 Proximitor Sensor Module is a configuration variant within the 3300 XL proximity transducer system used for industrial machinery monitoring applications. It is designed to interface with eddy current proximity probes and convert displacement signals into stable conditioned outputs for vibration and shaft position measurement.
This module is commonly applied in rotating equipment protection systems across power generation, oil & gas, petrochemical, and heavy industrial environments. It is installed in control cabinets or rack-based monitoring systems as part of a complete proximity measurement chain.
Industry listings indicate that the 145004-14 code is used as a modification/configuration identifier within the 3300 XL series ordering structure.
Technical Specifications
| Category | Details |
|---|---|
| Model | 330180-X1-05 / 145004-14 |
| Series | 3300 XL System |
| Function | Proximitor signal conditioning module |
| Input Type | Eddy current proximity probe system |
| Compatible System | 3300 XL probe and extension cable system |
| Output Signal | Conditioned analog displacement signal |
| Mounting Type | Panel / rack installation |
| Housing Material | Industrial-grade aluminum alloy |
| Operating Temperature | -40°C to +85°C (typical industrial range) |
| Power Supply | System-dependent DC supply |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 81 mm × 50 mm × 64 mm |
| Weight | Approx. 0.22 – 0.25 kg |
The compact design supports high-density installation in industrial control cabinets while maintaining stable electrical performance and standardized wiring layout.
