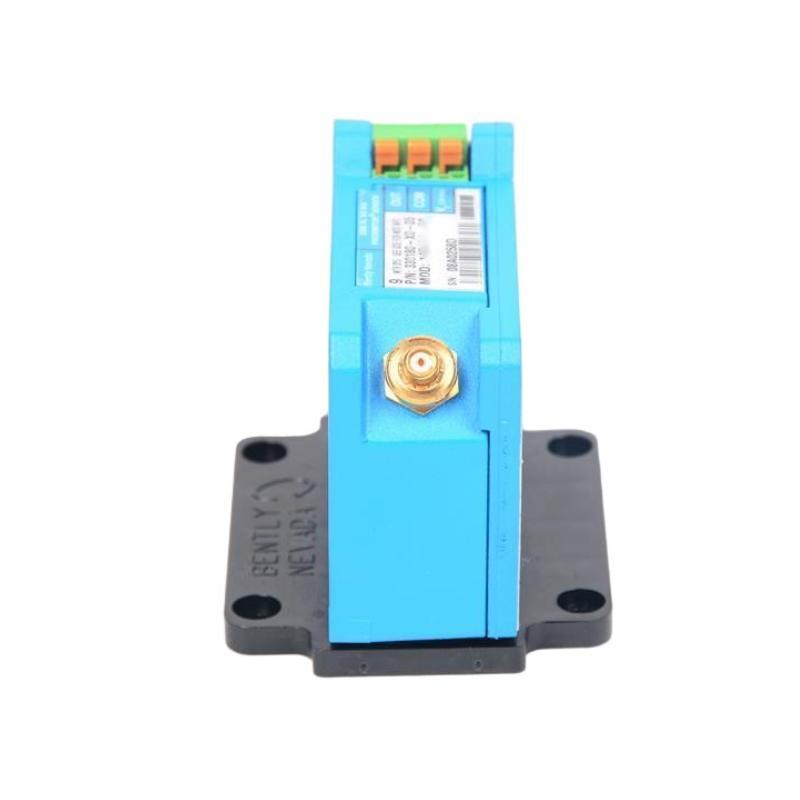

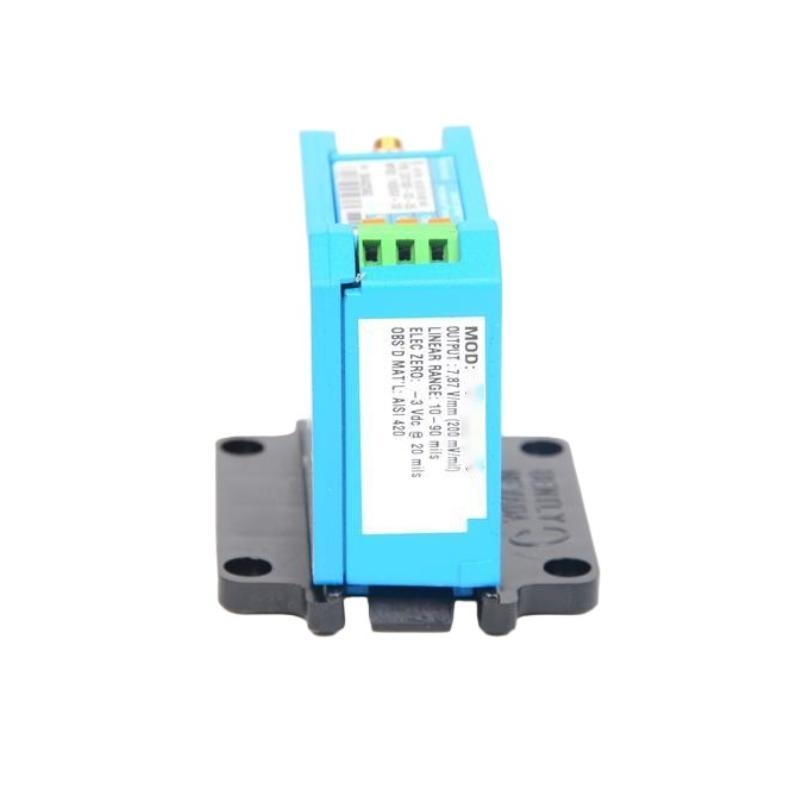

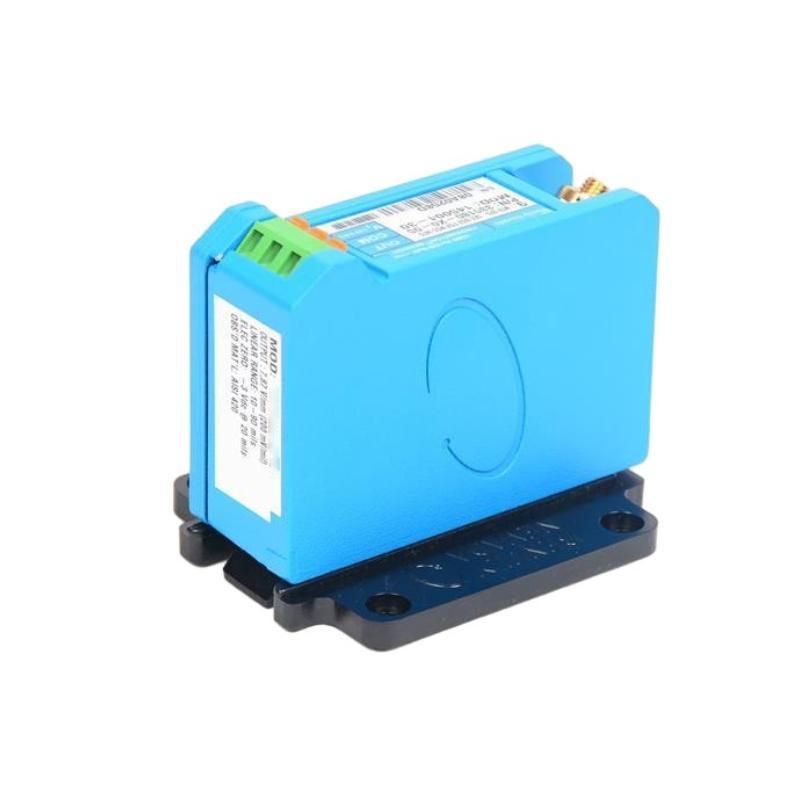

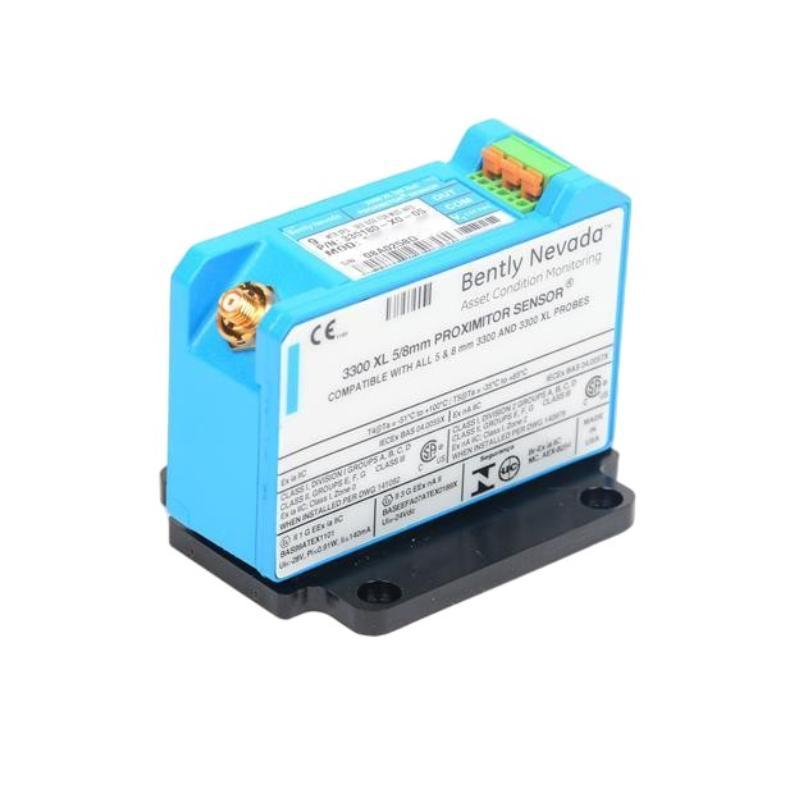

The Bently Nevada 330180-X1-05 / 145004-37 Proximitor Sensor Module is a configuration variant within the 3300 XL proximity transducer system used for industrial machinery monitoring applications. It is designed to interface with eddy current proximity probes and convert shaft vibration and displacement signals into stable conditioned outputs for monitoring and protection systems.

This module is typically installed in control cabinets or rack-based monitoring systems and is widely used in rotating machinery applications across power generation, oil & gas, petrochemical, and heavy industrial environments. It operates as part of a complete proximity measurement chain supporting continuous condition monitoring.

Industry listings show that 145004-37 belongs to a group of configuration identifiers used for system-level ordering or approval variants within the 3300 XL platform.

Technical Specifications

Category	Details
Model	330180-X1-05 / 145004-37
Series	3300 XL System
Function	Proximitor signal conditioning module
Input Type	Eddy current proximity probe system
Compatible System	3300 XL probe and extension cable system
Output Signal	Conditioned analog displacement signal
Mounting Type	Panel / rack installation
Housing Material	Industrial-grade aluminum alloy
Operating Temperature	-40°C to +85°C (typical industrial range)
Power Supply	System-dependent DC supply

Physical Dimensions & Weight

Parameter	Specification
Dimensions (L × W × H)	81 mm × 50 mm × 64 mm
Weight	Approx. 0.22 – 0.25 kg

The compact enclosure design supports high-density installation in industrial control cabinets while maintaining stable electrical performance and standardized wiring layout.

Recommended Related Models

330104 Proximity Probe Series
330130 Extension Cable Series
330180 Series Variants (X0 / X1 / CN / RU / KZ / A51-B00 / 92-05)
3500 Machinery Protection System Modules
3300 XL System Mounting Accessories

Popular Bently Nevada Models

Within industrial monitoring systems from Bently Nevada, commonly used product families include:

330180 Proximitor Sensor Series
330104 Proximity Probe Series
330130 Extension Cable Series
3500 Machinery Protection System Modules
3300 XL System Components

Applications

Turbine vibration monitoring systems
Compressor condition monitoring systems
Pump and motor vibration measurement
Power generation equipment monitoring
Oil & gas rotating machinery systems
Industrial machinery diagnostics

Advantages

Stable signal conditioning for proximity measurement systems
Compatible with 3300 XL architecture
Compact design for cabinet integration
Suitable for continuous industrial operation
Standardized system integration
Reliable performance in industrial environments
Supports structured monitoring applications

Technical FAQs

1. What is the function of this module?
It converts eddy current probe signals into conditioned outputs for vibration and displacement monitoring.

2. What system is it used with?
It is designed for the 3300 XL monitoring system.

3. What are the dimensions?
81 mm × 50 mm × 64 mm (L × W × H).

4. What is the weight?
Approximately 0.22 – 0.25 kg.

5. Where is it installed?
Inside industrial control cabinets or monitoring racks.

6. Which industries use it?
Power generation, oil & gas, petrochemical, and industrial manufacturing.

7. Is it suitable for continuous operation?
Yes, it is designed for continuous monitoring applications.

8. What type of output does it provide?
Conditioned analog displacement signal.

9. Does it operate alone?
No, it works as part of a complete proximity measurement system.

10. What does 145004-37 represent?
It is a configuration or ordering/approval variant used within system-specific customization of the 3300 XL platform.
