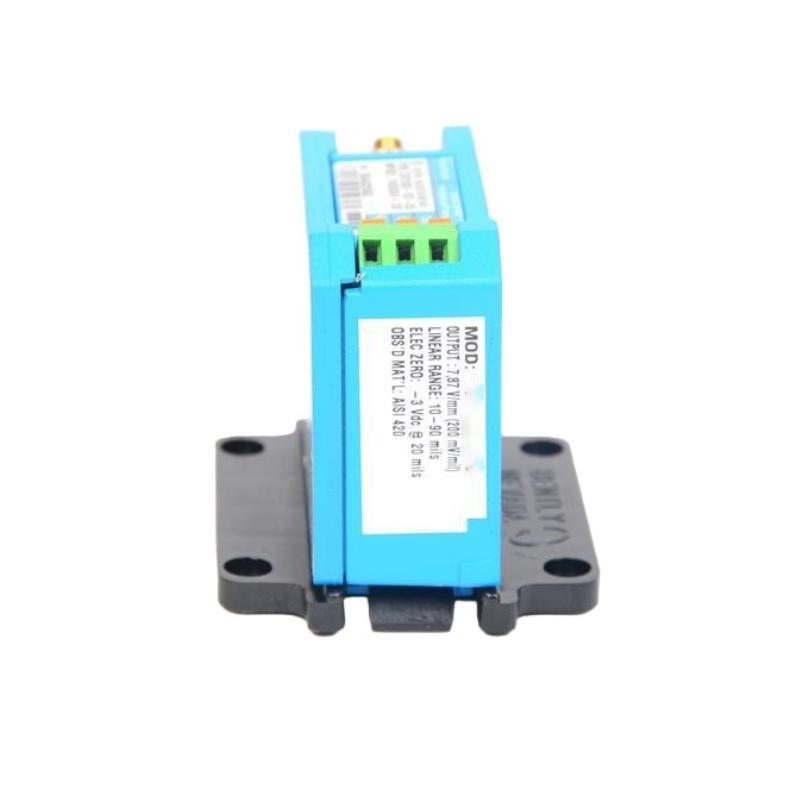

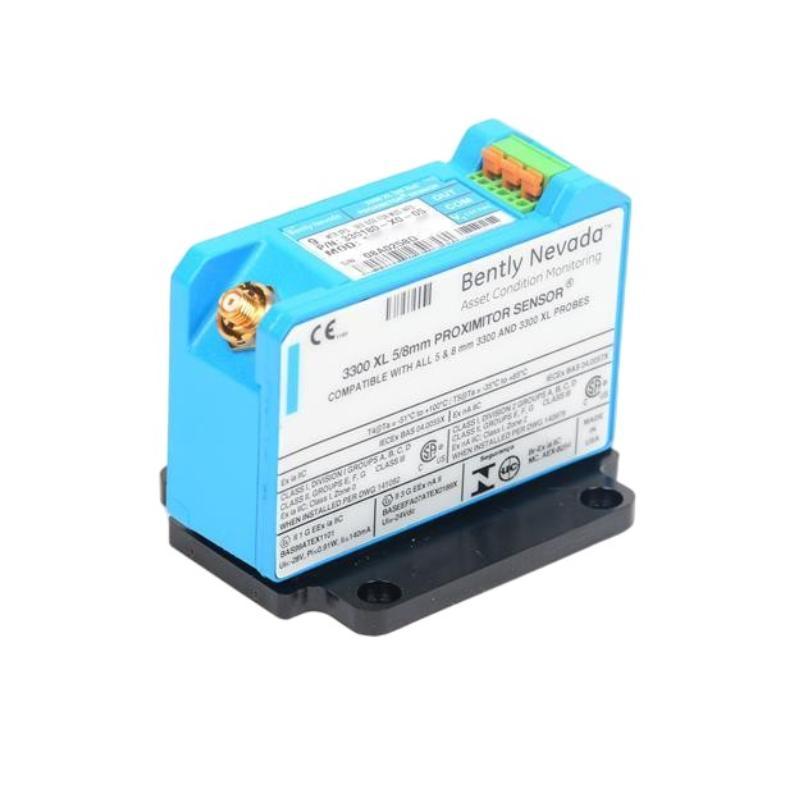

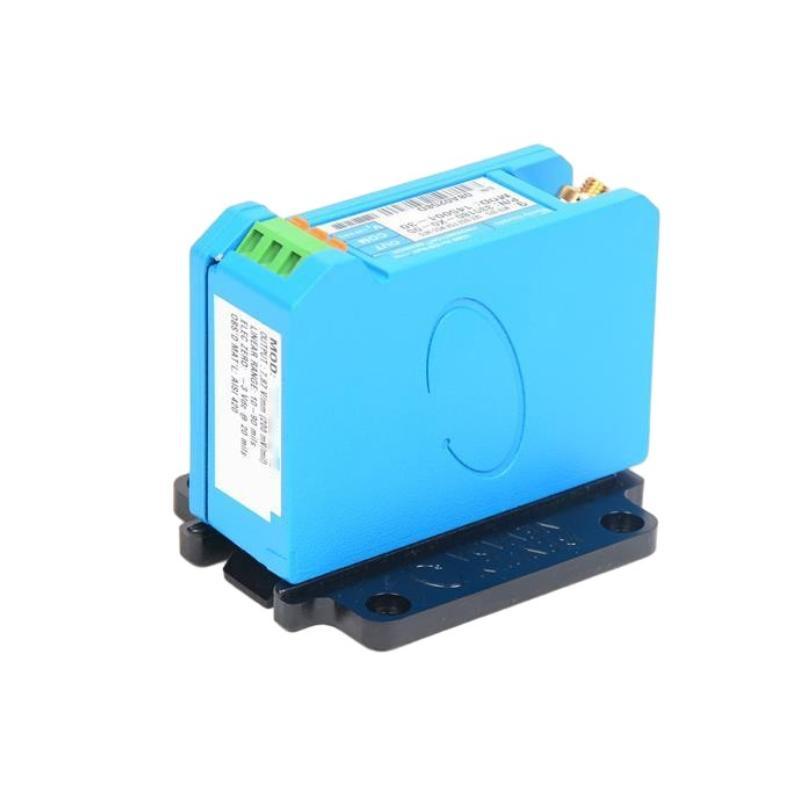

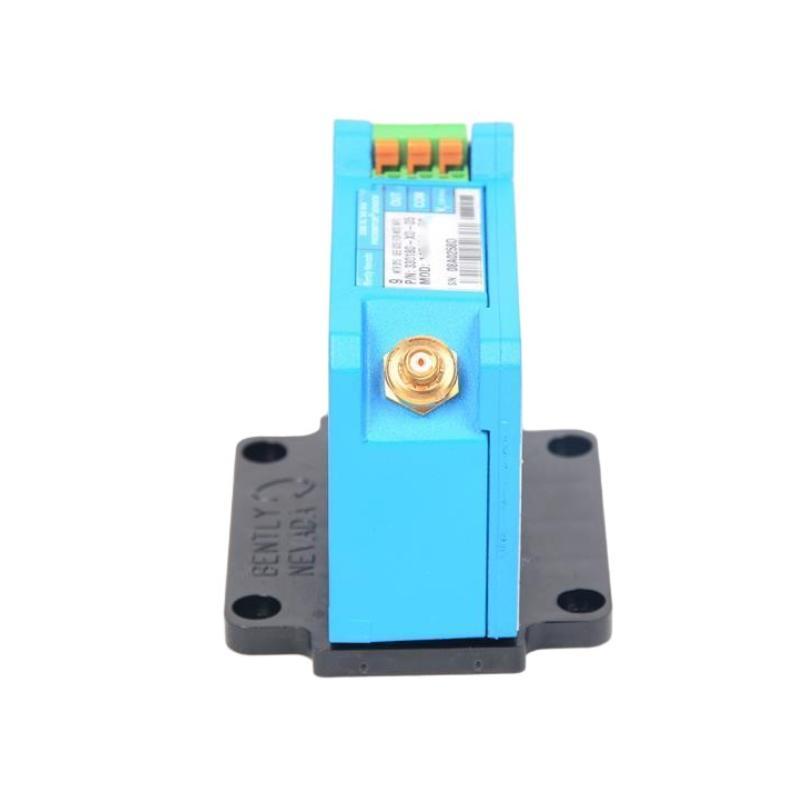

The Bently Nevada 330180-X1-05 / 145004-66 Proximitor Sensor Module is a configuration variant within the 3300 XL proximity measurement system used for industrial machinery monitoring applications. It is designed to interface with eddy current proximity probes and convert mechanical displacement signals into stable conditioned outputs for vibration and shaft position monitoring.
This module is typically installed in control cabinets or rack-based monitoring systems and is widely used in rotating machinery protection systems across power generation, oil & gas, petrochemical, and heavy industrial environments. It operates as part of a complete proximity transducer chain designed for continuous condition monitoring of critical rotating equipment.
Based on industrial supplier listings, the 145004-66 code is used as a system configuration or modification identifier associated with 3300 XL series ordering variants and installation options.
Technical Specifications
| Category | Details |
|---|---|
| Model | 330180-X1-05 / 145004-66 |
| Series | 3300 XL System |
| Function | Proximitor signal conditioning module |
| Input Type | Eddy current proximity probe system |
| Compatible System | 3300 XL probe and extension cable system |
| Output Signal | Conditioned analog displacement signal |
| Mounting Type | Panel / rack installation |
| Housing Material | Industrial-grade aluminum alloy |
| Operating Temperature | -40°C to +85°C (typical industrial range) |
| Power Supply | System-dependent DC supply |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 88 mm × 35 mm × 70 mm |
| Weight | Approx. 0.20 – 0.25 kg |
The compact enclosure design supports high-density installation in industrial control cabinets while maintaining stable electrical performance and standardized wiring layout.
