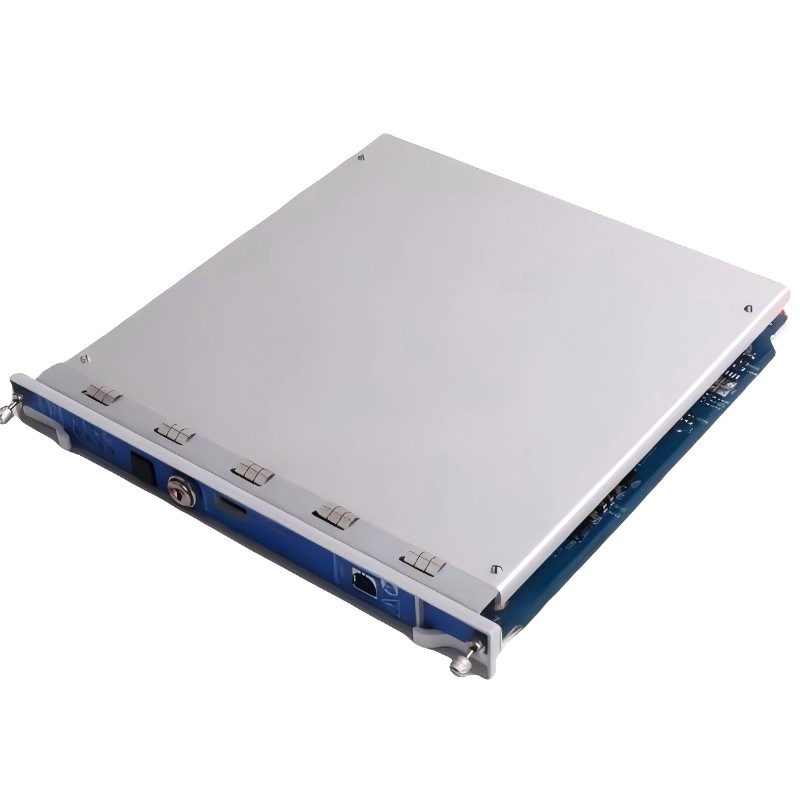

Bently Nevada 3500/22M-01-01 Transient Data Interface Module
Bently Nevada 3500/22M-01-01 Transient Data Interface Module
0.0
Points
Brand:Bently Nevada PLC Item No.:3500/22M-01-01 Product Origin:USA Product Dimensions:241.3 x 24.4 x 241.8 mm Product Weight:0.91 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 3500/22M-01-01 is a Transient Data Interface (TDI) module used in the 3500 machinery protection system. It serves as the central communication gateway between monitoring modules and external diagnostic software.
This module collects both steady-state and transient vibration data, allowing engineers to perform in-depth analysis of rotating machinery behavior. It plays a key role in modern condition monitoring strategies.
Technical Specifications
Parameter
Specification
Product Model
3500/22M-01-01
Product Type
Transient Data Interface (TDI) Module
System
Bently Nevada 3500 Series
Dimensions
241.3 × 24.4 × 241.8 mm
Weight
0.91 kg
Function
Data acquisition & communication interface
Data Types
Steady-state + transient waveform
Communication
Ethernet-based industrial network
Installation Position
Adjacent to power supply slot
Operating Environment
Industrial machinery monitoring
Recommended Related Models
Model
Product Name
Bently Nevada 3500/15-02-02-RU
Power Supply Module
Bently Nevada 3500/42M
Vibration Monitor Module
Bently Nevada 3500/25
Keyphasor Module
Bently Nevada 3500/92
Communication Gateway Module
Popular Related Models
Model
Product Name
Bently Nevada 3500 Rack System
Machinery protection rack
Bently Nevada 3500/32M
Relay Output Module
Bently Nevada 3500/20M
Rack Interface Module
Bently Nevada 3500 Series Modules
Monitoring system components
Applications
• Used as the communication and data interface module in Bently Nevada 3500 machinery protection systems.
• Collects both steady-state and transient waveform data from 3500 monitor modules.
• Applied in turbines, compressors, pumps, and other critical rotating machinery systems.
• Supports condition monitoring and advanced diagnostic data acquisition.
• Interfaces with System 1 software for centralized machinery analysis.
• Used in power generation, oil & gas, and heavy industrial monitoring applications.
• Enables high-speed data transfer for vibration and machinery health analysis.
Key Advantages
• Provides real-time access to transient waveform and condition data.
• Integrates communication and rack interface functions in a single module.
• Supports Ethernet-based data transmission for industrial monitoring systems.
• Enhances diagnostic capability through high-resolution data collection.
• Designed for reliable operation in continuous industrial environments.
• Seamlessly integrates with the Bently Nevada 3500 monitoring platform.
• Improves overall system visibility and predictive maintenance capability.
Technical FAQs
1. What is the main function of this module?
It acts as a communication interface for collecting and transmitting data from the 3500 monitoring system.
2. What type of data does it collect?
It collects both steady-state signals and transient waveform data.
3. What systems is it compatible with?
It works with the Bently Nevada 3500 series and System 1 software.
4. Where is it installed?
It is installed in the rack slot adjacent to the power supply modules.
5. Does it support Ethernet communication?
Yes, it supports Ethernet-based data transmission.
6. What is its role in machinery protection?
It enables advanced diagnostics by providing detailed machine condition data.
7. Can it operate continuously?
Yes, it is designed for 24/7 industrial monitoring environments.
8. Does it replace other modules?
It combines functions of rack interface and communication processing modules.
9. What industries use it?
Power generation, petrochemical, oil & gas, and heavy industry.
10. Why is it important in the system?
Because it enables high-speed data acquisition for advanced machine diagnostics.
