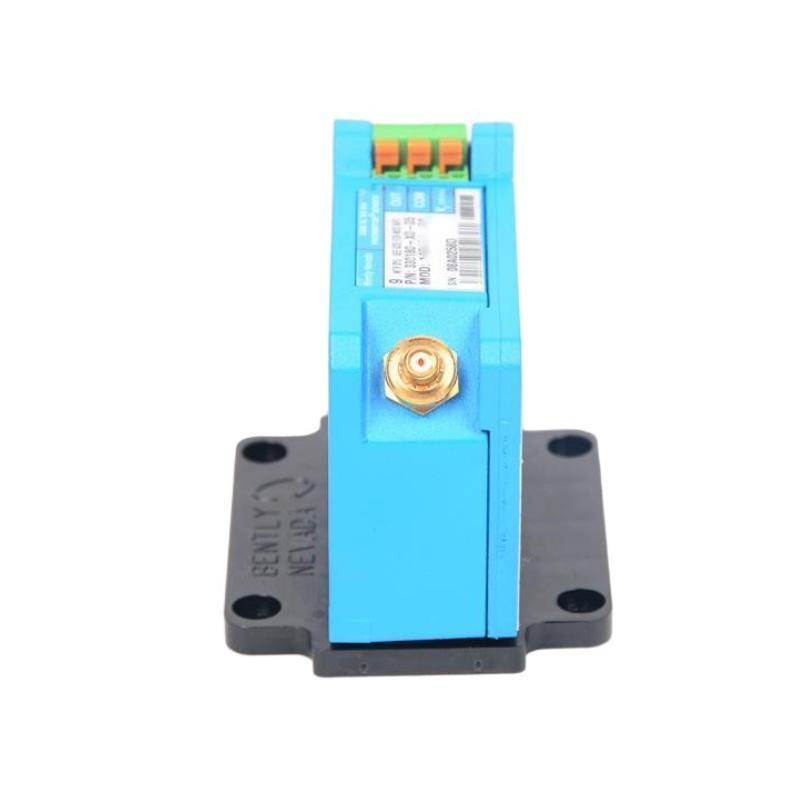

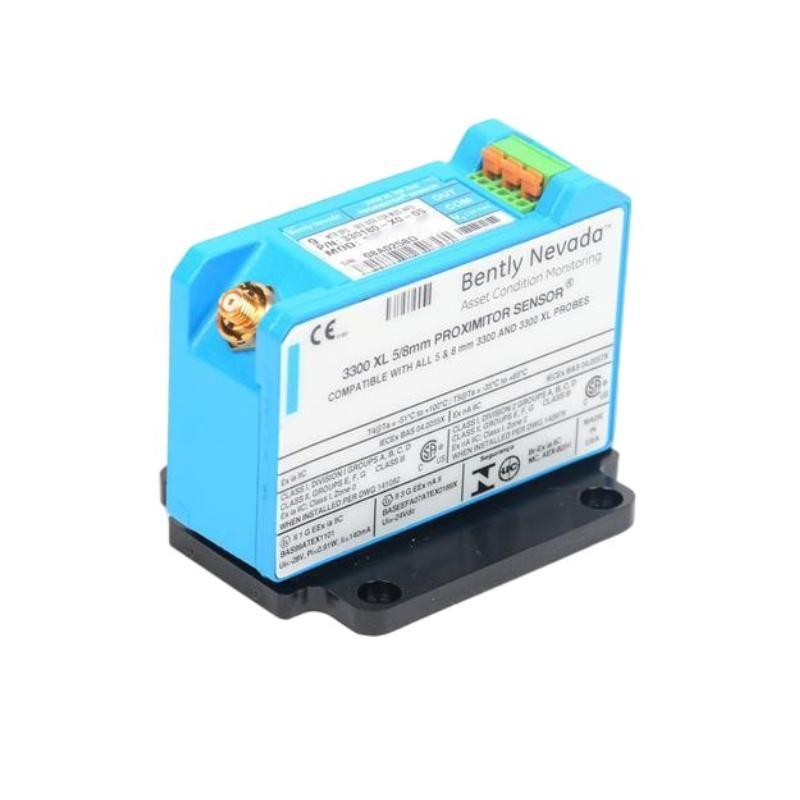

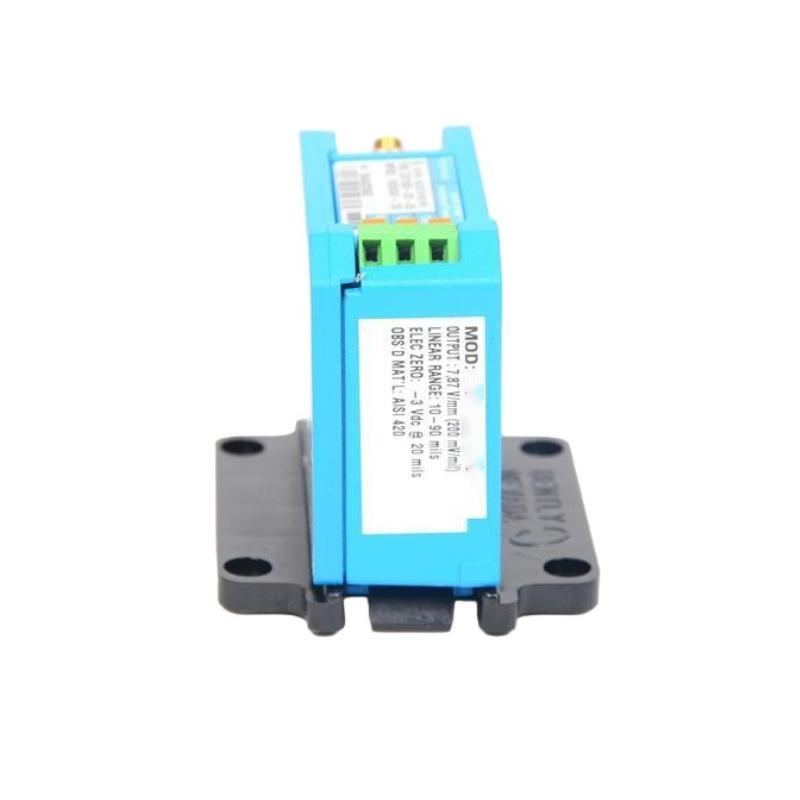

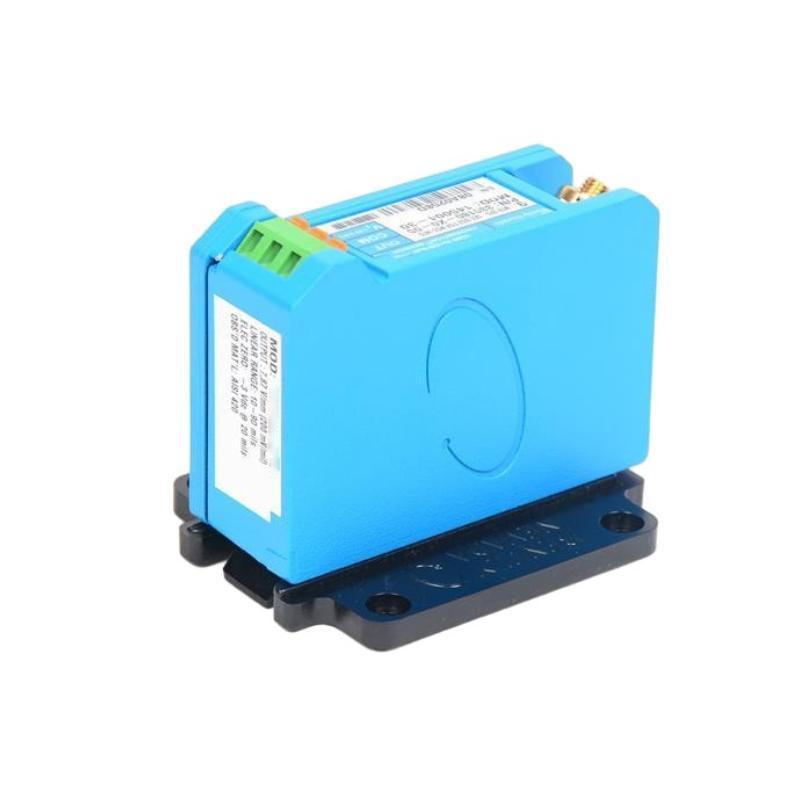

The Bently Nevada 330180-X1-05 / 145004-75 Proximitor Sensor Module is a configuration variant within the 3300 XL proximity transducer system used for industrial machinery monitoring applications. It is designed to interface with eddy current proximity probes and convert shaft vibration and displacement signals into stable conditioned outputs for continuous monitoring and protection systems.
This module is typically installed in control cabinets or rack-based monitoring systems and is widely used in power generation, oil & gas, petrochemical, and heavy industrial environments. It operates as part of a complete proximity measurement chain for rotating machinery condition monitoring.
Based on multiple industrial listings, 145004-75 is referenced as a system configuration or ordering variant associated with 3300 XL series modular options.
Technical Specifications
| Category | Details |
|---|---|
| Model | 330180-X1-05 / 145004-75 |
| Series | 3300 XL System |
| Function | Proximitor signal conditioning module |
| Input Type | Eddy current proximity probe system |
| Compatible System | 3300 XL probe and extension cable system |
| Output Signal | Conditioned analog displacement signal |
| Mounting Type | Panel / rack installation |
| Housing Material | Industrial-grade aluminum alloy |
| Operating Temperature | -40°C to +85°C (typical industrial range) |
| Power Supply | System-dependent DC supply |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 88 mm × 35 mm × 70 mm |
| Weight | Approx. 0.20 – 0.25 kg |
The compact structure supports high-density installation in industrial control cabinets while maintaining stable electrical performance and standardized wiring layout.
