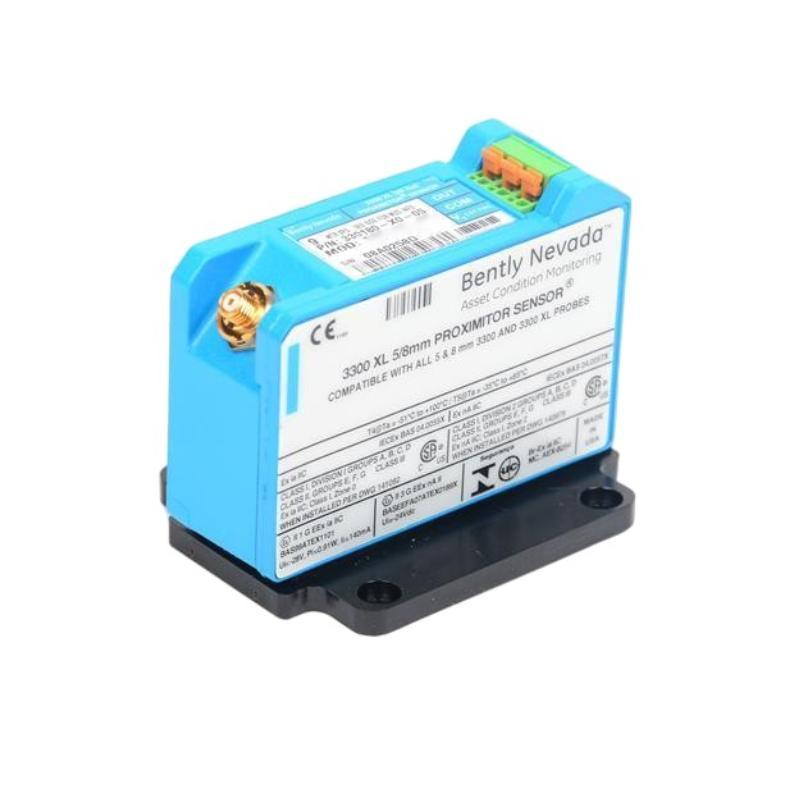

The Bently Nevada 330180-X1-05 / 145004-94 Proximitor Sensor Module is a configuration variant within the 3300 XL proximity transducer system used for industrial machinery condition monitoring applications. It is designed to interface with eddy current proximity probes and convert shaft vibration and displacement signals into stable conditioned outputs for continuous monitoring and protection systems.
This module is typically installed in control cabinets or rack-mounted monitoring systems and is widely used in rotating machinery environments such as power generation, oil & gas, petrochemical, and heavy industrial applications. It functions as part of a complete proximity measurement chain for machinery protection.
Recent industrial listings indicate that 145004-94 is used as a system configuration or ordering variant within 3300 XL series sensor assemblies.
Technical Specifications
| Category | Details |
|---|---|
| Model | 330180-X1-05 / 145004-94 |
| Series | 3300 XL System |
| Function | Proximitor signal conditioning module |
| Input Type | Eddy current proximity probe system |
| Compatible System | 3300 XL probe and extension cable system |
| Output Signal | Conditioned analog displacement signal |
| Mounting Type | Panel / rack installation |
| Housing Material | Industrial-grade aluminum alloy |
| Operating Temperature | -40°C to +85°C (typical industrial range) |
| Power Supply | System-dependent DC supply |
Physical Dimensions & Weight
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 88 mm × 35 mm × 70 mm |
| Weight | Approx. 0.20 – 0.25 kg |
The compact design supports high-density installation in industrial control cabinets while maintaining stable electrical performance and standardized wiring layout.
