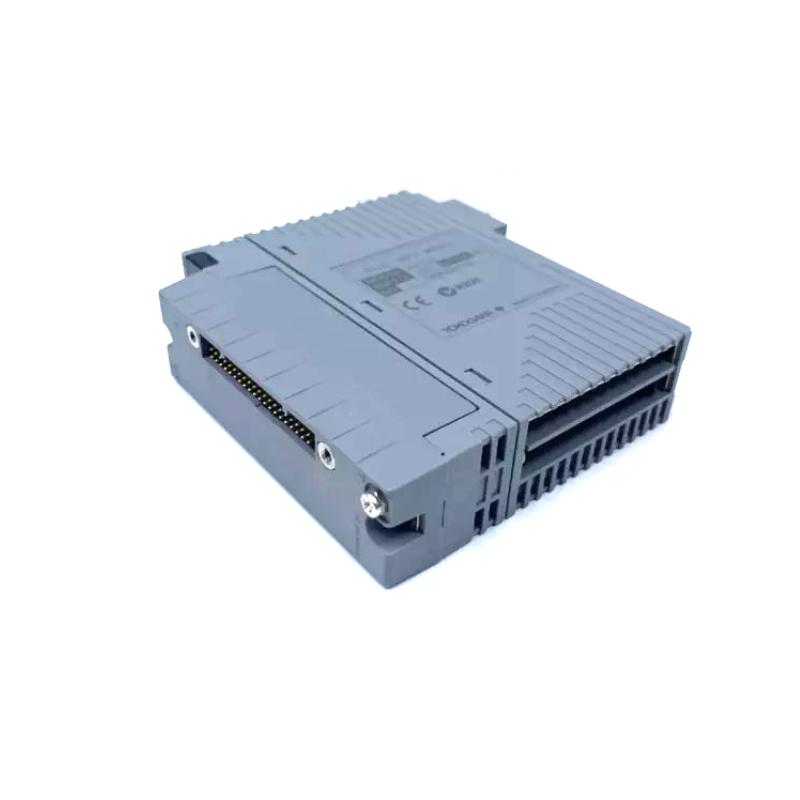

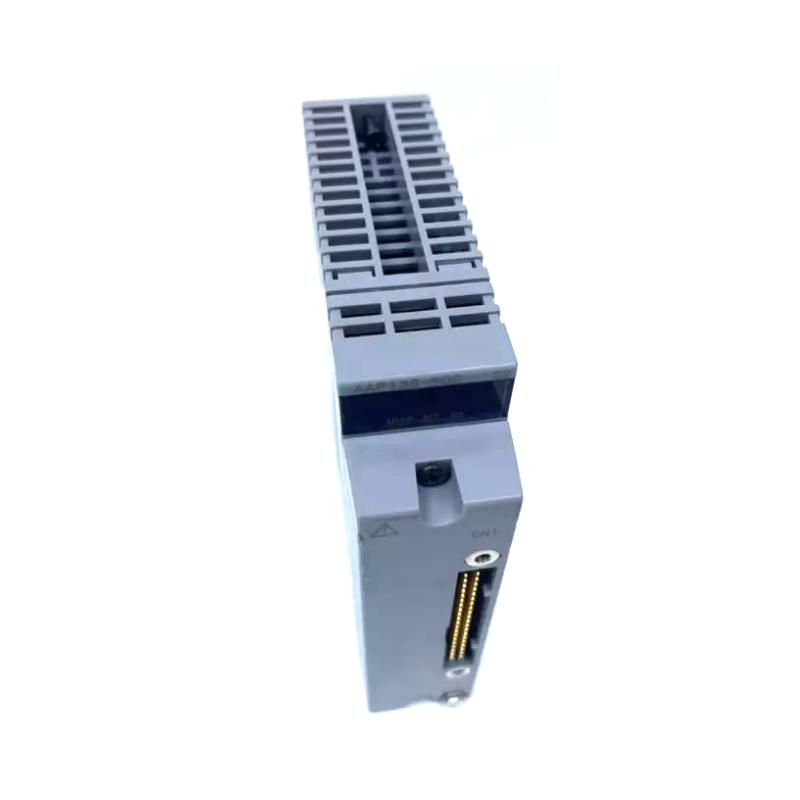

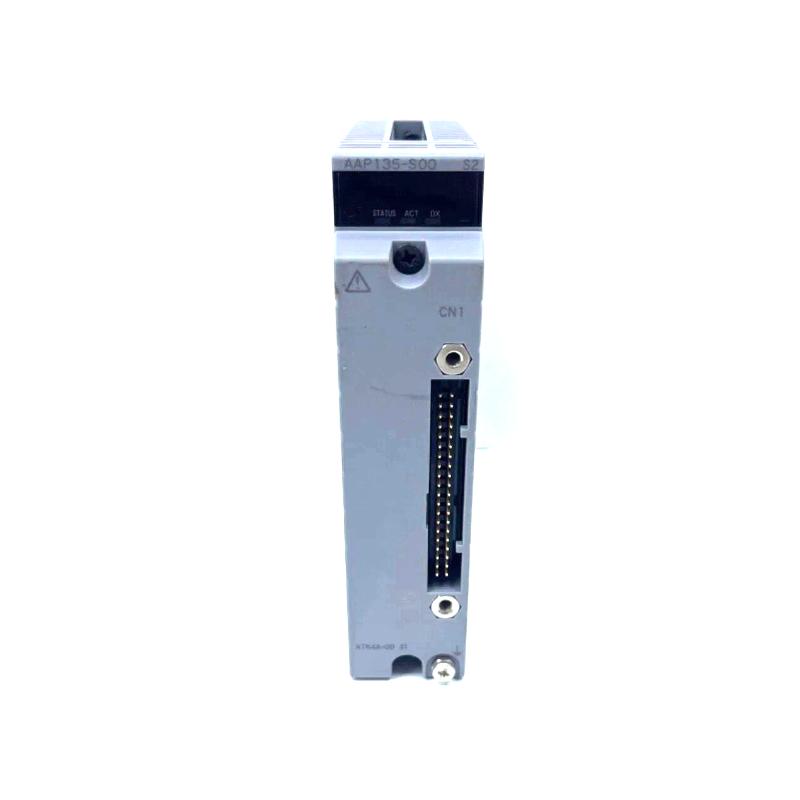

The Yokogawa AAP135 is a high-performance analog input/output module designed to support both input and output functionalities for a variety of industrial automation and process control applications. This module enables seamless conversion of analog signals, offering high precision, rapid response, and reliable operation in critical environments. The AAP135 is engineered to integrate smoothly with Yokogawa’s distributed control systems, making it ideal for industries such as energy, manufacturing, and water treatment, where real-time data acquisition and control are paramount.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Yokogawa AAP135 |
| Module Type | Analog Input/Output Module |
| Input Channels | 4 |
| Output Channels | 4 |
| Input Signal Types | Voltage and Current |
| Output Signal Types | Voltage and Current |
| Input Range | Voltage: –10 V to +10 V; Current: 4–20 mA |
| Output Range | Voltage: 0–10 V; Current: 4–20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% full scale |
| Isolation | Galvanic isolation for both input and output |
| Sample Rate | 1000 Hz (Input); 2 ms (Output) |
| Operating Temperature Range | −20 °C to +60 °C |
| Dimensions (W×H×D) | 50 mm × 120 mm × 150 mm |
| Weight | 0.34 kg |
