Brand:Bently Nevada PLC Item No.:Bently Nevada 330180-X1-05 145193-01 Product Origin:USA Product Dimensions:88 × 36 × 71 mm Product Weight:0.25 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

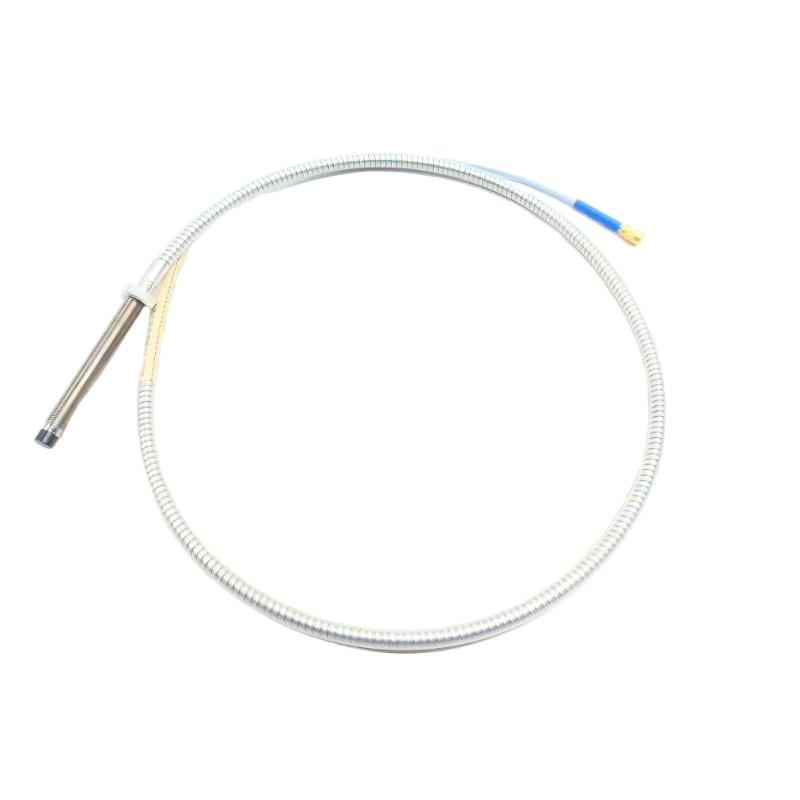

The Bently Nevada 330180-X1-05 145193-01 Proximitor Sensor is part of the widely used 3300 XL proximity transducer system, designed for high-accuracy vibration and shaft displacement measurement in rotating machinery. It is commonly applied in turbine, compressor, pump, and industrial drivetrain monitoring systems where continuous condition tracking is essential.
This sensor operates using eddy current technology, enabling non-contact measurement of conductive target surfaces. It provides stable, linear signal output for both static position and dynamic vibration monitoring, making it a core component in predictive maintenance and machinery protection systems.
Engineered for harsh industrial environments, the module maintains reliable performance under vibration, temperature variation, and electrical noise, ensuring accurate long-term signal stability in mission-critical operations.
Technical Specifications
Specification
Details
Brand
Bently Nevada
Series
3300 XL
Model
330180-X1-05
Modification
145193-01
Type
Proximitor Sensor (Eddy Current System Interface)
Measurement Range
Up to 25.4 mm (1 inch system dependent)
Operating Voltage
10–30 VDC
Output Signal
Analog voltage (linear proportional)
Operating Temperature
-40°C to +85°C
Application
Vibration / Displacement / Position Monitoring
System Compatibility
3300 XL probe and extension cable system
Physical Dimensions & Weight
Parameter
Value
Size (L × W × H)
88 × 36 × 71 mm
Weight
0.20–0.25 kg (≈ 200–250 g, typical industrial assembly range)
Recommended Related Models
330103 Proximity Probe
330104 Proximity Probe
330130 Extension Cable
330180-X1-00 Proximitor Sensor
330780 Vibration Monitor Module
3500/42M Monitoring Module
3500/15 Power Supply Module
3500/05 Rack Interface Module
Popular Bently Nevada Monitoring Products
3300 XL Proximitor Sensor Series
330103 / 330104 Probe Series
330130 Extension Cable System
3500 Machinery Protection System
3500/42M Vibration Monitoring Module
3500/15 Power Supply Module
3500/32 Relay Module
1900/65A General Purpose Monitor
Industrial Applications
This module is widely used in critical asset monitoring systems across heavy industries where equipment reliability is essential.
Typical applications include:
Steam turbine monitoring systems
Gas turbine condition monitoring
Centrifugal and axial compressors
Industrial pump vibration monitoring
Electric motor shaft displacement tracking
Petrochemical processing equipment
Offshore drilling systems
Power generation plants
Steel and heavy manufacturing equipment
Marine propulsion systems
Its non-contact sensing capability ensures continuous measurement without mechanical wear, making it ideal for long-term industrial deployment.
Key Advantages
High-precision non-contact measurement technology
Stable analog signal output for monitoring systems
Strong resistance to electromagnetic interference
Designed for continuous 24/7 operation
Compatible with 3300 XL monitoring architecture
Supports predictive maintenance strategies
Reliable performance in harsh environments
Long operational lifecycle with minimal maintenance
Proven industrial-grade measurement stability
Widely adopted in global power and process industries
Technical FAQs
Q1: What is the main function of this sensor?
It converts eddy current probe signals into usable vibration and displacement monitoring data.
Q2: Is it a contact or non-contact sensor?
It is a non-contact eddy current proximity measurement system.
Q3: What is the operating voltage range?
It operates on 10–30 VDC.
Q4: What is its measurement purpose?
It is used for vibration, shaft position, and displacement monitoring.
Q5: What is the operating temperature range?
-40°C to +85°C.
Q6: What are its physical dimensions?
88 × 36 × 71 mm (L × W × H).
Q7: What is its weight?
Approximately 0.20–0.25 kg depending on configuration.
Q8: What systems is it compatible with?
It is compatible with the Bently Nevada 3300 XL system.
Q9: Where is it commonly used?
Power generation, oil & gas, petrochemical, and heavy industry.
Q10: Why is it widely used in industry?
Because it provides stable, accurate, and continuous machinery condition monitoring.
