Brand:Bently Nevada PLC Item No.:Bently Nevada 330180-X1-05 145347-16 Product Origin:USA Product Dimensions:88 × 36 × 71 mm Product Weight:0.25 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

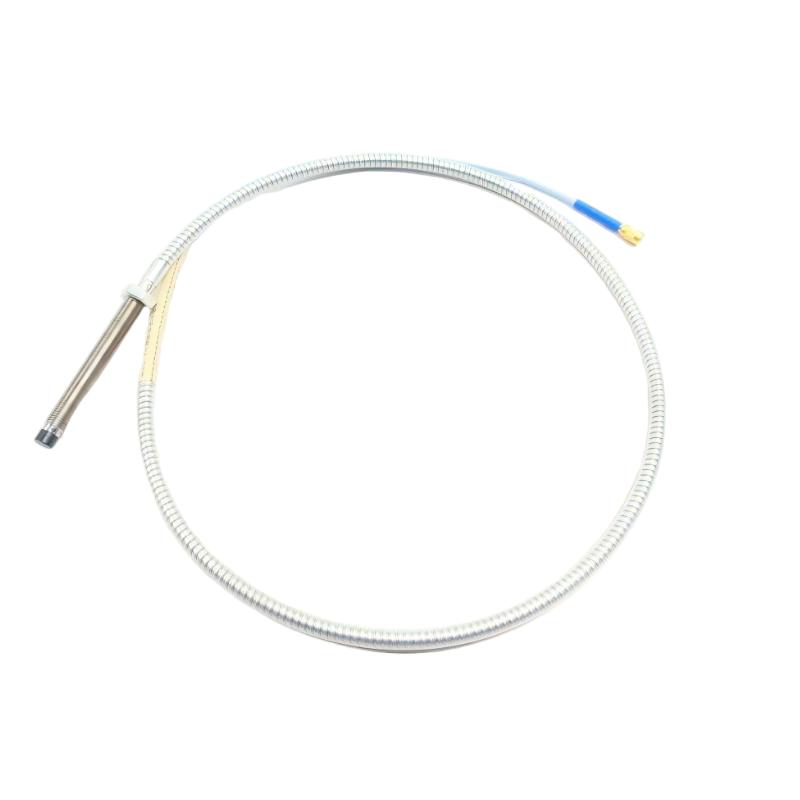

The Bently Nevada 330180-X1-05 145347-16 Proximitor Sensor is part of the 3300 XL eddy current proximity transducer system used for high-accuracy vibration, shaft position, and displacement measurement in rotating machinery protection applications.
It is designed for integration with Bently Nevada monitoring platforms in turbines, compressors, pumps, and other critical rotating equipment. The module converts probe signals into stable electrical outputs that can be used by condition monitoring and protection systems, enabling continuous real-time machinery diagnostics.
This sensor is widely used in industrial environments where long-term stability, noise immunity, and high measurement accuracy are essential for predictive maintenance strategies.
Technical Specifications
Specification
Details
Brand
Bently Nevada
Series
3300 XL
Model
330180-X1-05
Modification
145347-16
Type
Proximitor Sensor / Signal Conditioning Interface
Measurement System
Eddy current non-contact transducer system
Function
Vibration / displacement / shaft position monitoring
Operating Voltage
10–30 VDC
Output Type
Linear analog voltage signal
System Compatibility
3300 XL probe & extension cable system
Application
Machinery protection & condition monitoring
Physical Dimensions & Weight
Parameter
Value
Size (L × W × H)
88 × 36 × 71 mm
Weight
0.20–0.25 kg
Recommended Related Models
330103 Proximity Probe
330104 Proximity Probe
330130 Extension Cable
330180-X1-00 Proximitor Sensor
330780 Vibration Monitor Module
3500/40M Proximitor Monitor
3500/42M Vibration Monitor Module
3500/15 Power Supply Module
Popular Bently Nevada Monitoring Components
3300 XL Proximitor Sensor Series
3300 XL Proximity Probe Series
330130 Extension Cable System
3500 Machinery Protection System
3500/42M Vibration Monitoring Module
3500/40M Proximitor Monitor
3500/05 Rack Interface Module
1900/65A General Purpose Monitor
Industrial Applications
The 330180-X1-05 145347-16 module is widely used in industrial asset protection systems where continuous condition monitoring is required.
Typical applications include:
Steam turbine monitoring systems
Gas turbine condition monitoring
Centrifugal compressor protection
Industrial pump vibration monitoring
Motor shaft displacement tracking
Petrochemical processing equipment
Offshore oil & gas platforms
Power generation plants
Steel and heavy industry machinery
Marine propulsion systems
Its non-contact measurement principle ensures long-term reliability without mechanical wear, making it ideal for continuous monitoring in harsh industrial environments.
Key Advantages
High-precision non-contact measurement technology
Stable analog signal output for monitoring systems
Strong resistance to electromagnetic interference
Designed for continuous 24/7 operation
Compatible with 3300 XL architecture
Supports predictive maintenance systems
Reliable performance in harsh industrial conditions
Long service life with minimal maintenance
Proven industrial-grade measurement stability
Widely used in global rotating machinery systems
Technical FAQs
Q1: What is the function of this module?
It processes eddy current probe signals for vibration and displacement monitoring.
Q2: Is it a contact or non-contact device?
It is a non-contact eddy current measurement interface.
Q3: What voltage does it require?
It operates on 10–30 VDC.
Q4: What is its main application?
Machinery protection and condition monitoring.
Q5: What systems is it compatible with?
Bently Nevada 3300 XL monitoring systems.
Q6: What are its dimensions?
88 × 36 × 71 mm (L × W × H).
Q7: What is its weight?
Approximately 0.20–0.25 kg.
Q8: Where is it commonly used?
Power plants, oil & gas, and heavy industry.
Q9: Is it suitable for harsh environments?
Yes, it is designed for industrial-grade harsh conditions.
Q10: Why is it widely used?
Because it provides stable, accurate, long-term machinery monitoring.
