Introduction

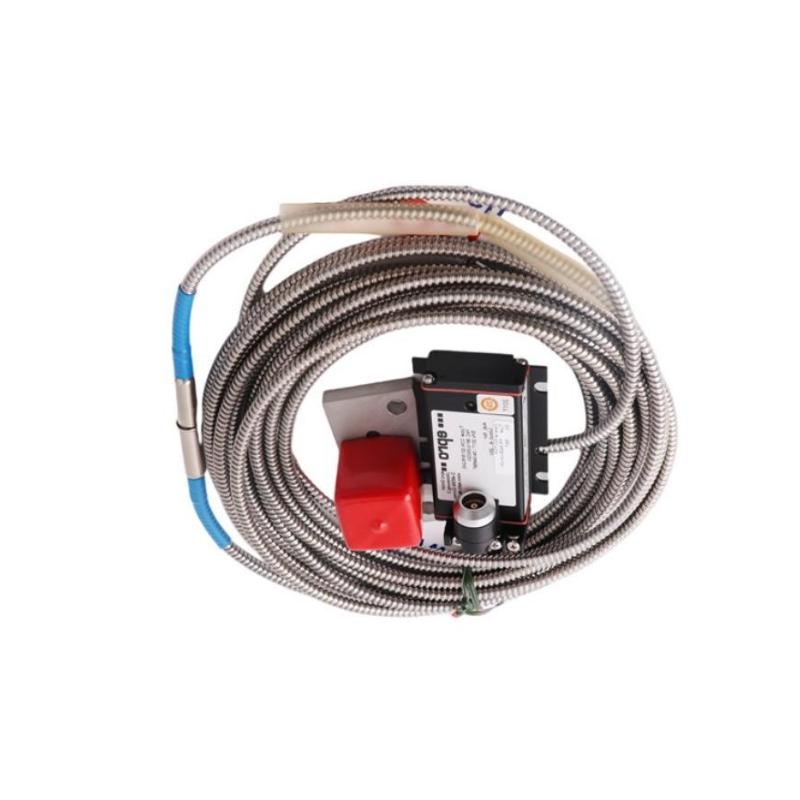

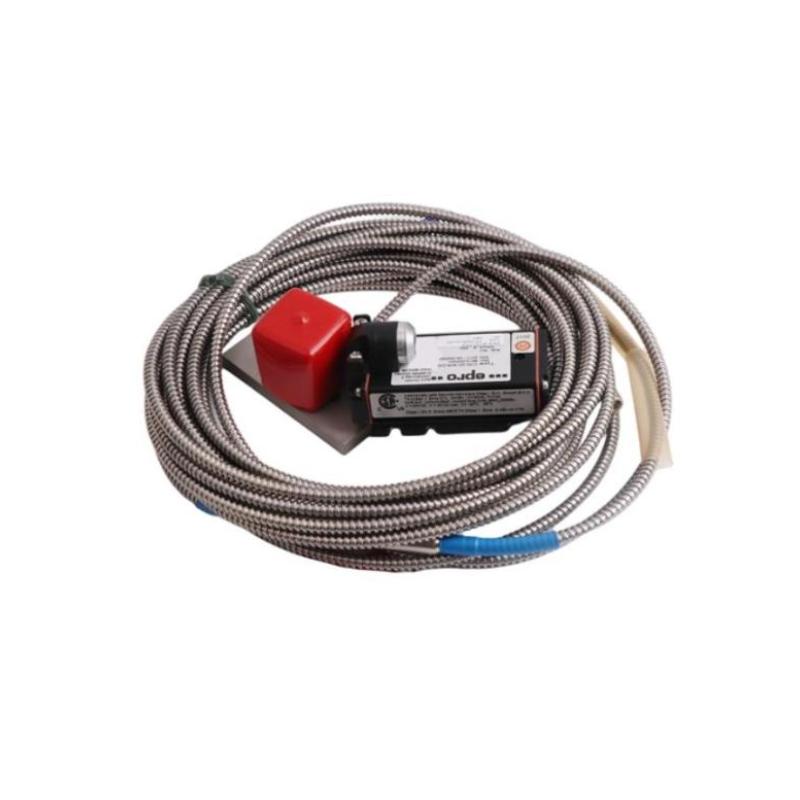

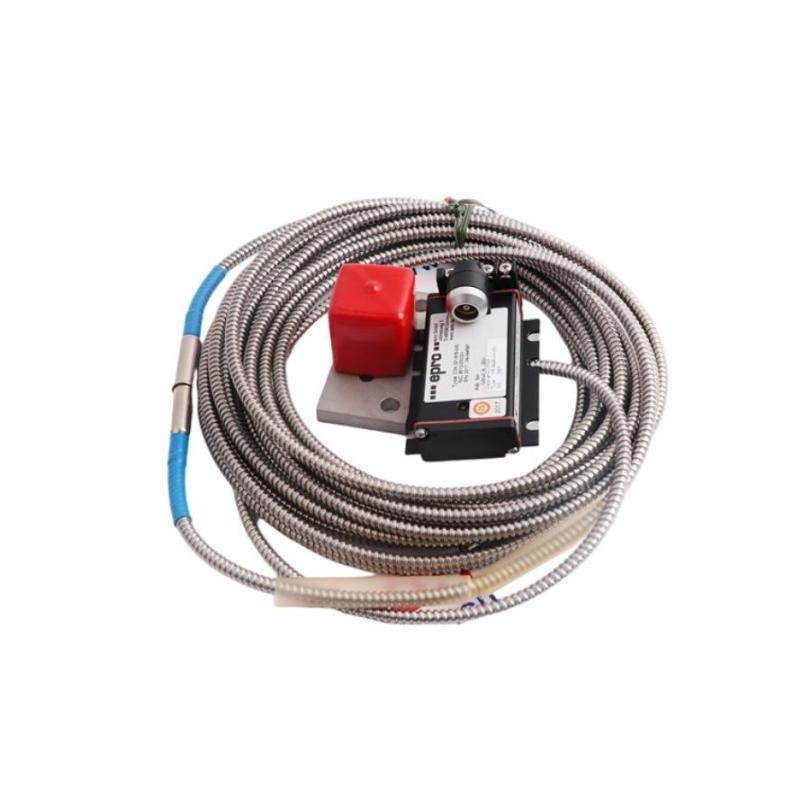

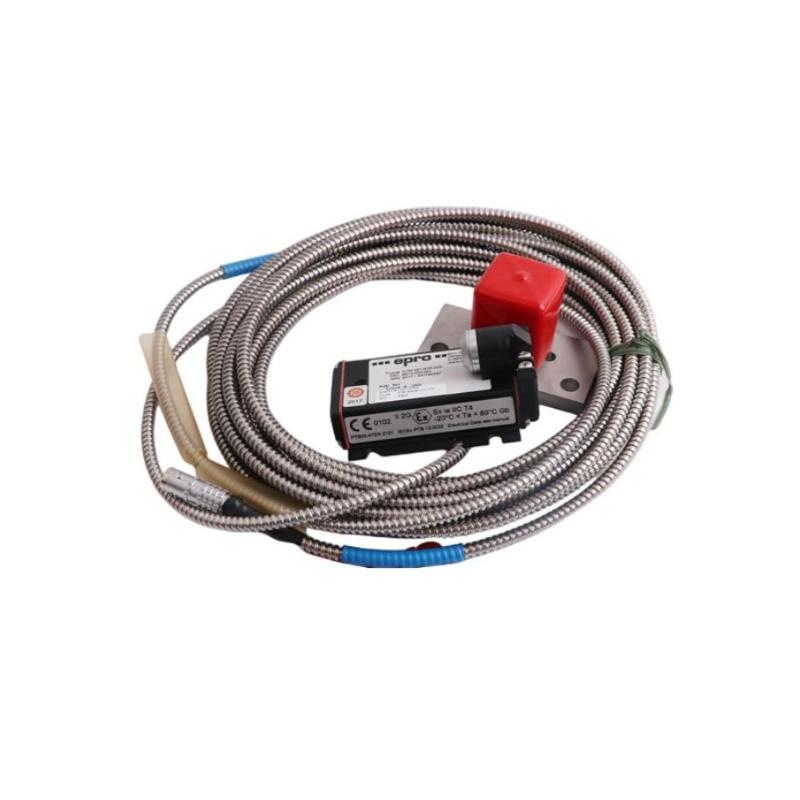

The PR6426/000-111 is a 32 mm eddy current proximity sensor used for precise monitoring of shaft displacement in large rotating machinery. It operates without contact, enabling accurate detection of vibration, eccentricity, and positional changes in industrial equipment.

The PR6426 series is widely used in turbine and compressor condition monitoring systems for critical rotating assets. According to manufacturer technical documentation for the PR6426 platform, the sensor is designed for large shaft measurement applications (≥200 mm shaft diameter) and supports high-stability monitoring in harsh industrial environments.

This makes it suitable for continuous monitoring systems where reliability and long-term stability are essential for machine protection and predictive maintenance strategies.

Technical Specifications

Parameter	Value
Model	PR6426/000-111
Sensor Type	Eddy Current Proximity Sensor
Probe Head Diameter	32 mm
Measurement Principle	Non-contact eddy current
Measurement Type	Shaft displacement / vibration monitoring
Operating Temperature	-35°C to +180°C (system dependent)
Measurement Range	±4.0 mm (typical system range)
Sensitivity	2 V/mm (typical)
Weight	0.8 kg (1.76 lb)
Installation Type	Industrial probe mounting system

Recommended Related Models

Epro PR6426/000-000
Epro PR6426/000-001
Epro PR6426/000-020
Epro PR6426/000-040
Epro PR6425/010-A20

Popular Related Models

PR6426/000-000
PR6426/000-020
PR6426/000-030
PR6426/000-040
PR6425/010-A20

Applications

The Epro PR6426/000-111 32 mm Eddy Current Sensor is a non-contact proximity sensor designed for high-precision shaft displacement monitoring in large rotating machinery. It is commonly used in industrial condition monitoring systems where stable and continuous measurement is required for machine protection.

Typical applications include:

Steam turbine shaft vibration monitoring
Gas turbine rotor displacement measurement
Large compressor shaft condition monitoring
Hydro turbine stability monitoring
Industrial pump vibration detection
Gearbox shaft movement supervision
Heavy rotating machinery protection systems
Power generation predictive maintenance systems

Advantages

Non-contact eddy current measurement eliminates mechanical wear
Stable long-term operation in continuous monitoring systems
Designed for large rotating machinery applications
Strong resistance to vibration and harsh industrial environments
High reliability for critical asset protection
Compatible with standard eddy current signal conditioning systems
Suitable for 24/7 industrial operation
Consistent measurement performance for predictive maintenance

Technical FAQs

Q1: What is the main function of this sensor?
A1: It measures shaft displacement, vibration, and eccentricity using eddy current non-contact technology.

Q2: Does it require physical contact with the shaft?
A2: No, it operates without any physical contact.

Q3: What type of machinery is it used for?
A3: It is used in turbines, compressors, pumps, and large rotating machinery.

Q4: What is the sensor head diameter?
A4: The sensor head diameter is 32 mm.

Q5: Can it operate continuously?
A5: Yes, it is designed for continuous industrial monitoring.

Q6: Does it measure vibration?
A6: Yes, it can be used for vibration and displacement monitoring depending on system configuration.

Q7: Is it suitable for harsh environments?
A7: Yes, it is designed for industrial operating conditions.

Q8: Does it require signal processing equipment?
A8: Yes, it is typically used with compatible eddy current converters or monitoring modules.

Q9: What industries use this sensor?
A9: Power generation, oil & gas, petrochemical, and heavy industry sectors.

Q10: What does the “000-111” suffix mean?
A10: It indicates a specific configuration variant within the PR6426 32 mm sensor platform, typically related to system integration options while maintaining the same measurement principle.
