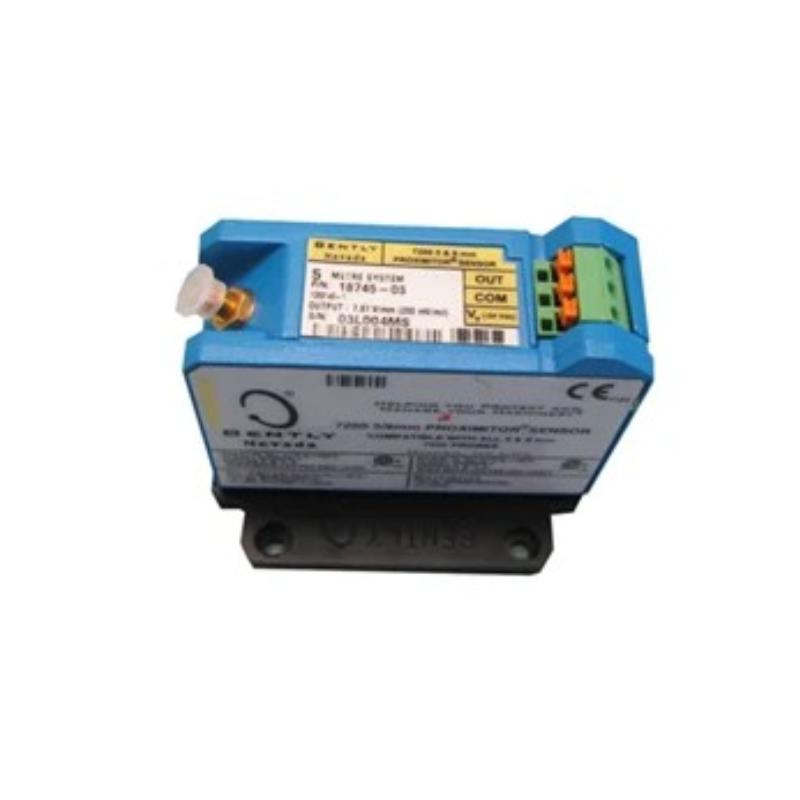

The Bently Nevada 330180-X1-05 145347-39 Proximitor Sensor is part of the 3300 XL proximity transducer system used for continuous vibration, shaft displacement, and position monitoring in critical rotating machinery. It is designed to work with proximity probes and extension cables to provide stable, linear signal conversion for machinery protection and condition monitoring systems.
This module is widely applied in power generation, oil & gas, and heavy industrial environments where real-time monitoring accuracy directly impacts operational safety and equipment reliability. Its non-contact measurement principle ensures long-term stability without mechanical wear, making it suitable for continuous 24/7 industrial operation.
The 145347-39 modification indicates a specific engineering or configuration variant within the 330180 platform, typically related to system integration, approvals, or internal calibration differences depending on application requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330180-X1-05 |
| Modification | 145347-39 |
| Type | Proximitor Sensor / Signal Conditioning Module |
| Measurement System | Eddy current non-contact transducer system |
| Function | Vibration / shaft position / displacement monitoring |
| Operating Voltage | 10–30 VDC |
| Output Signal | Linear analog voltage proportional to gap distance |
| System Compatibility | 3300 XL probe & extension cable system |
| Application | Machinery protection and condition monitoring |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Size (L × W × H) | 88 × 36 × 71 mm |
| Weight | 0.20–0.25 kg |
