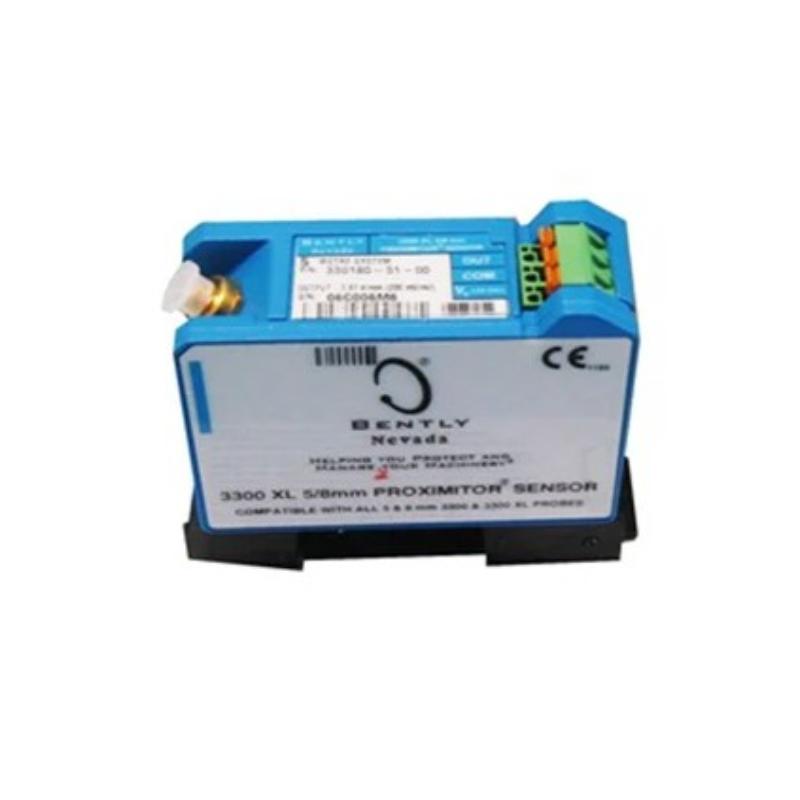

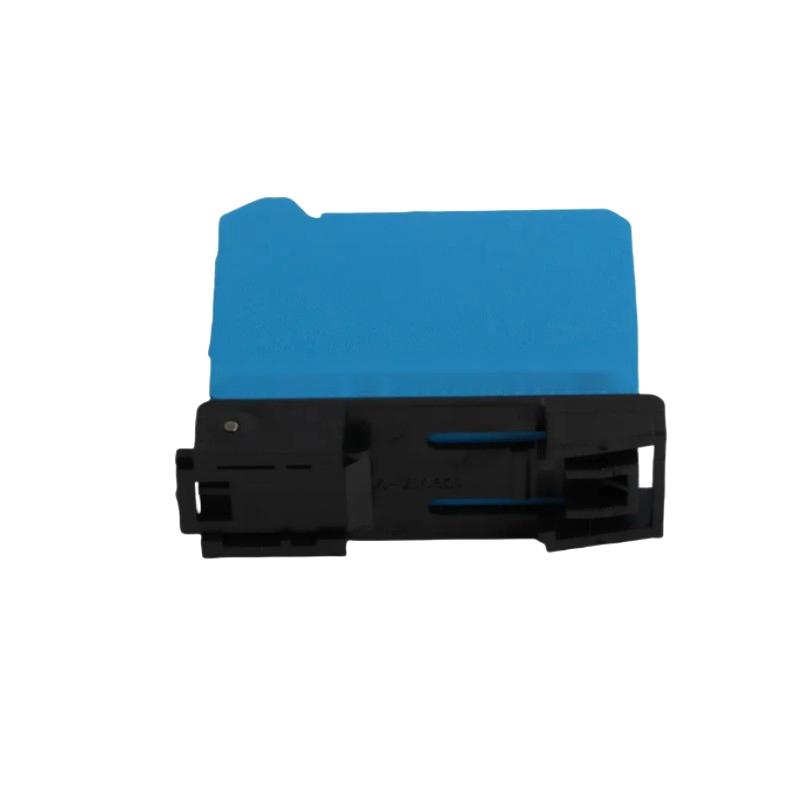

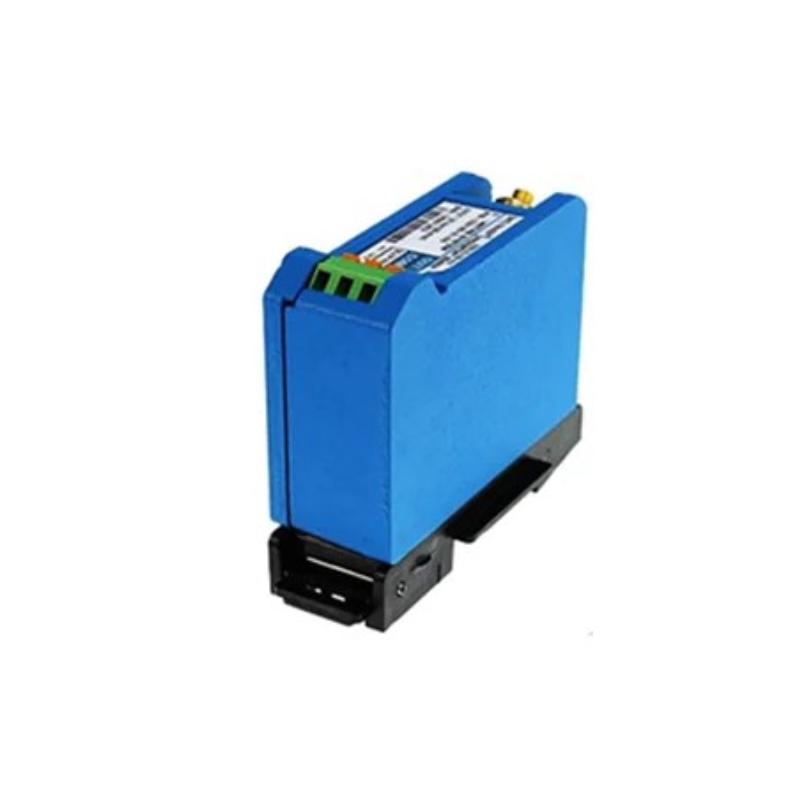

The Bently Nevada 330180-X1-05 167066-01 Proximitor Sensor is part of the 3300 XL eddy current proximity transducer system used in high-precision vibration and shaft displacement monitoring applications. It is designed for integration into machinery protection architectures used in turbines, compressors, pumps, and other rotating equipment where continuous condition monitoring is required.
This module converts probe-generated eddy current signals into stable, linear analog outputs for monitoring systems, enabling accurate measurement of shaft position, vibration amplitude, and mechanical movement trends. It is widely deployed in power generation, oil & gas, and heavy industrial environments where equipment reliability and predictive maintenance are critical.
The 167066-01 configuration represents a system-specific engineering variant within the 3300 XL platform, typically related to calibration, certification, or integration requirements depending on installation standards.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330180-X1-05 |
| Modification | 167066-01 |
| Type | Proximitor Sensor / Signal Conditioning Interface |
| Measurement System | Eddy current non-contact transducer system |
| Function | Vibration / shaft position / displacement monitoring |
| Operating Voltage | 10–30 VDC |
| Output Signal | Linear analog voltage proportional to gap distance |
| System Compatibility | 3300 XL probe & extension cable system |
| Application | Machinery protection & condition monitoring |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Size (L × W × H) | 88 × 36 × 71 mm |
| Weight | 0.20–0.25 kg |
