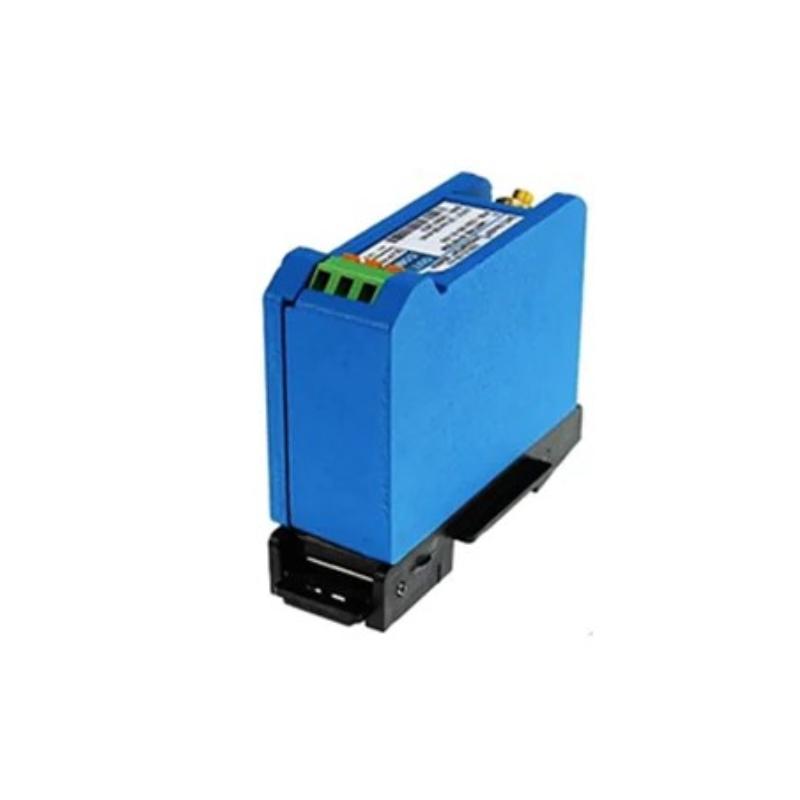

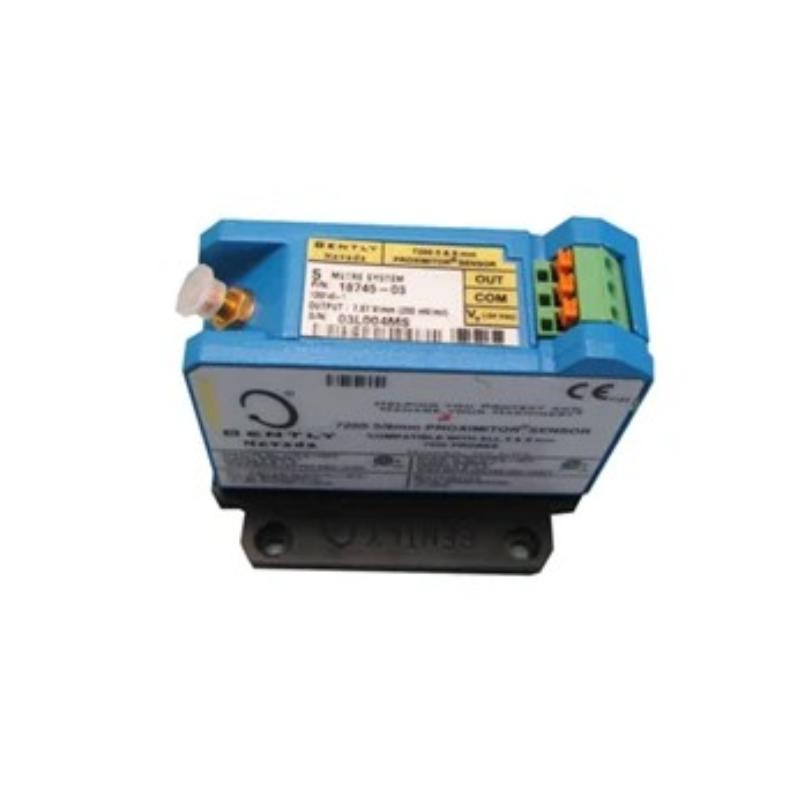

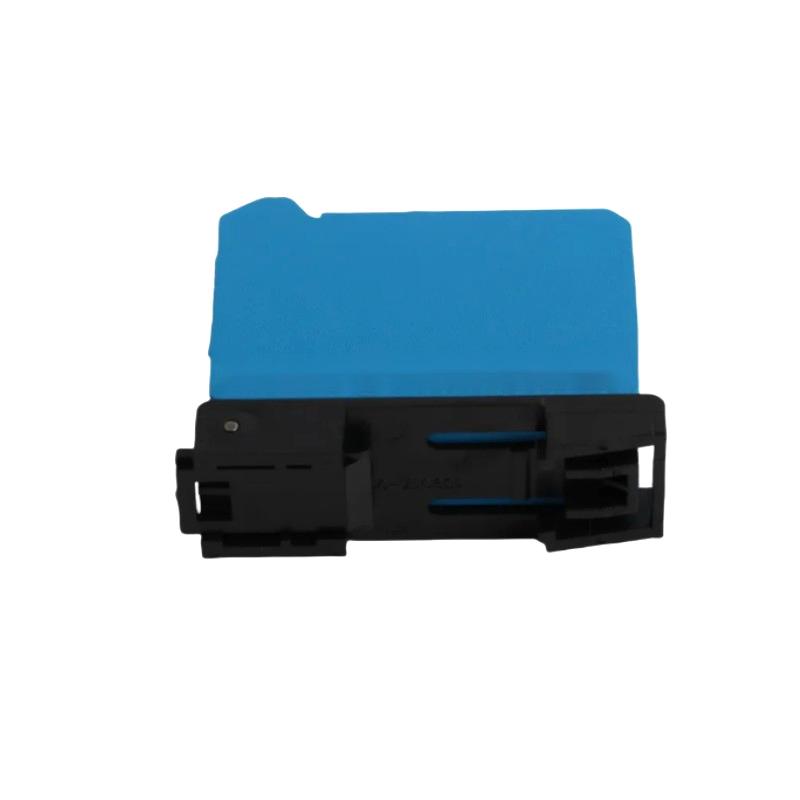

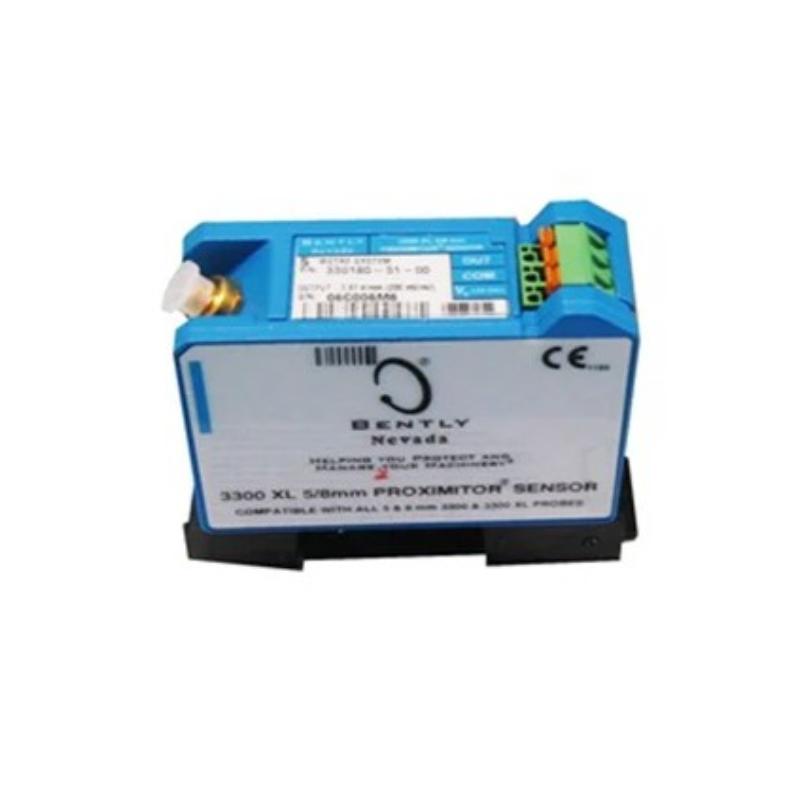

The Bently Nevada 330180-X1-IN 145004-137 Proximitor Sensor is part of the 3300 XL proximity transducer system used for continuous vibration, shaft displacement, and position monitoring in rotating machinery protection applications.
It is designed to work with eddy current proximity probes and extension cables, converting gap variation signals into stable analog outputs for industrial condition monitoring systems. This enables accurate real-time tracking of rotor behavior in turbines, compressors, pumps, and other critical rotating equipment.
The 145004-137 modification code represents a configuration-specific variant within the 330180 platform, typically related to certification, assembly revision, or system integration requirements depending on application or regional compliance needs.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330180-X1-IN |
| Modification | 145004-137 |
| Type | Proximitor Sensor / Signal Conditioning Module |
| Measurement System | Eddy current non-contact transducer system |
| Function | Vibration / shaft position / displacement monitoring |
| Operating Voltage | 10–30 VDC |
| Output Signal | Linear analog voltage proportional to gap distance |
| System Compatibility | 3300 XL probe & extension cable system |
| Application | Machinery protection and condition monitoring |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Size (L × W × H) | 88 × 36 × 71 mm |
| Weight | 0.20–0.25 kg |
