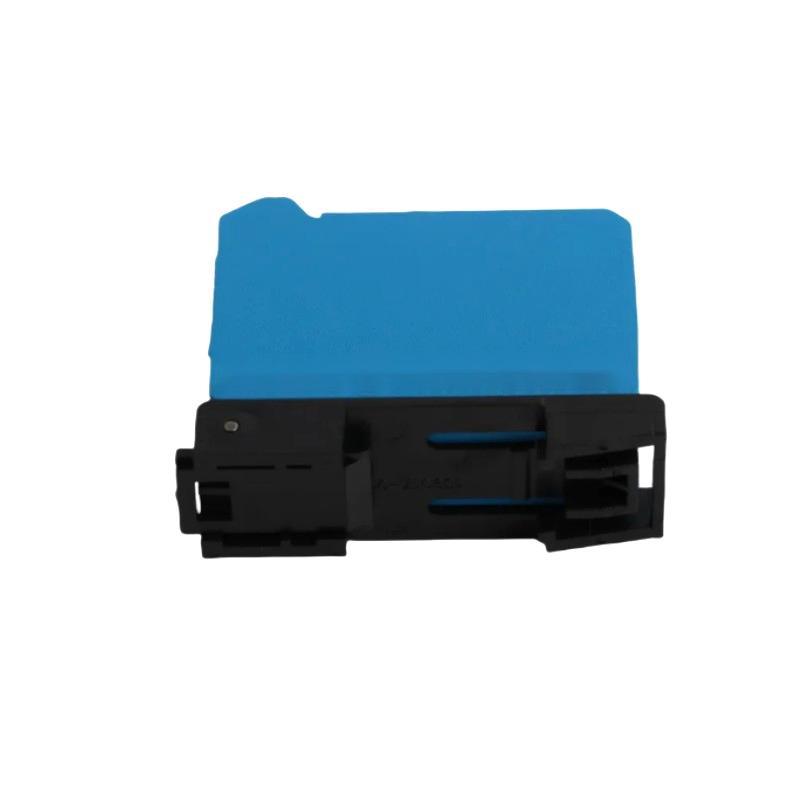

The Bently Nevada 330180-X1-RU 143416-49 Proximitor Sensor is part of the 3300 XL proximity transducer system used for continuous monitoring of vibration, shaft displacement, and rotor position in rotating machinery.
It works in combination with proximity probes and extension cables to convert eddy current gap signals into stable analog outputs. This allows condition monitoring systems to accurately track machine behavior in real time, supporting predictive maintenance and machinery protection strategies in critical industrial environments.
The 143416-49 modification code represents a configuration-specific variant within the 330180 platform, typically associated with regional configuration, assembly revision, or system integration requirements.
Based on available 3300 XL system documentation, this series is designed for compatibility with standardized Bently Nevada proximity systems used in turbines, compressors, pumps, and other high-value rotating assets.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330180-X1-RU |
| Modification | 143416-49 |
| Type | Proximitor Sensor / Signal Conditioning Interface |
| Measurement System | Eddy current non-contact transducer system |
| Function | Vibration / shaft position / displacement monitoring |
| Operating Voltage | 10–30 VDC |
| Output Signal | Linear analog voltage proportional to gap distance |
| System Compatibility | 3300 XL probe & extension cable system |
| Application | Machinery protection and condition monitoring |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Size (L × W × H) | 88 × 36 × 71 mm |
| Weight | 0.20–0.25 kg |
