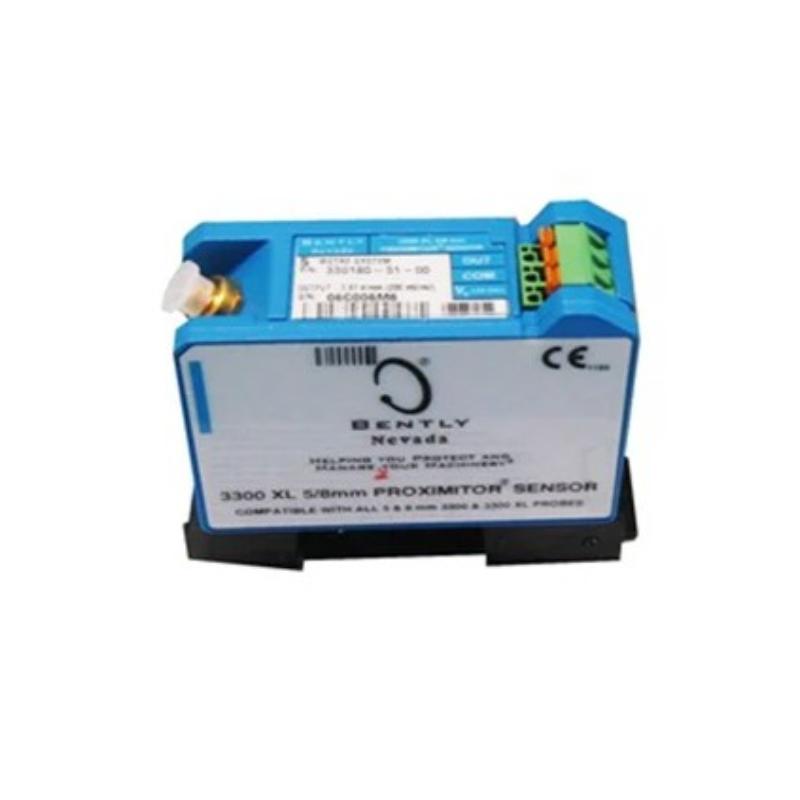

The Bently Nevada 330180-X1-RU 145655-23 Proximitor Sensor is part of the 3300 XL proximity transducer system, designed for continuous monitoring of vibration, shaft displacement, and rotor position in critical rotating machinery.
It works with proximity probes and extension cables to convert eddy current gap changes into stable analog voltage signals, which are then used by machinery protection and condition monitoring systems. This enables real-time tracking of equipment health in turbines, compressors, pumps, and other high-value rotating assets.
The 145655-23 modification code represents a configuration-specific variant within the 330180 platform, typically associated with assembly revision, regional compliance, or system integration differences within the same product family.
Based on 3300 XL system documentation, the platform is engineered for high electromagnetic immunity and stable long-term performance in demanding industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330180-X1-RU |
| Modification | 145655-23 |
| Type | Proximitor Sensor / Signal Conditioning Module |
| Measurement System | Eddy current non-contact transducer system |
| Function | Vibration / shaft position / displacement monitoring |
| Operating Voltage | 10–30 VDC |
| Output Signal | Linear analog voltage proportional to gap distance |
| System Compatibility | 3300 XL probe & extension cable system |
| Application | Machinery protection and condition monitoring |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Size (L × W × H) | 88 × 36 × 71 mm |
| Weight | 0.20–0.25 kg |
