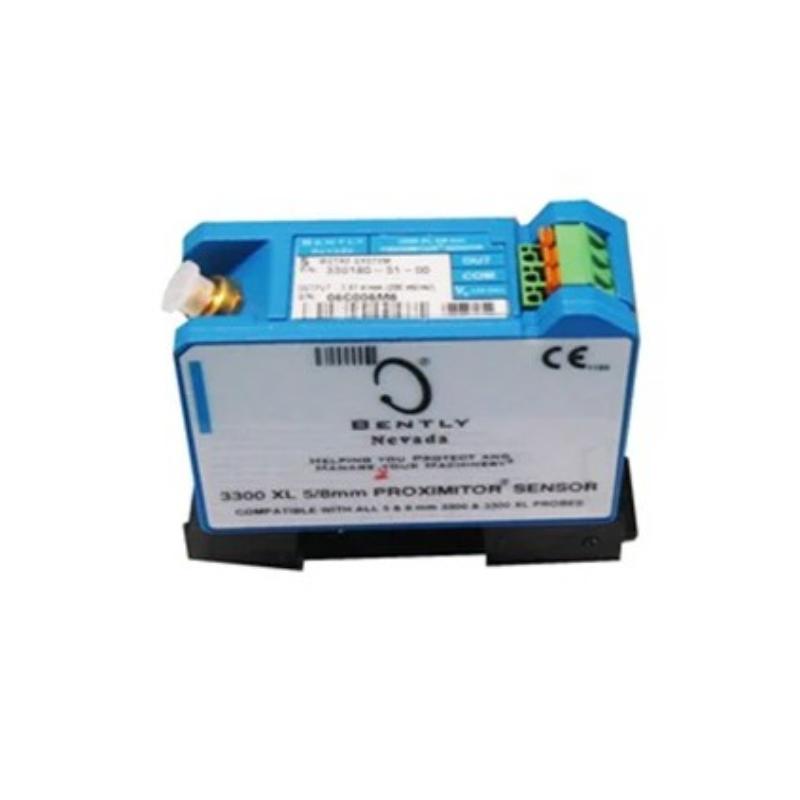

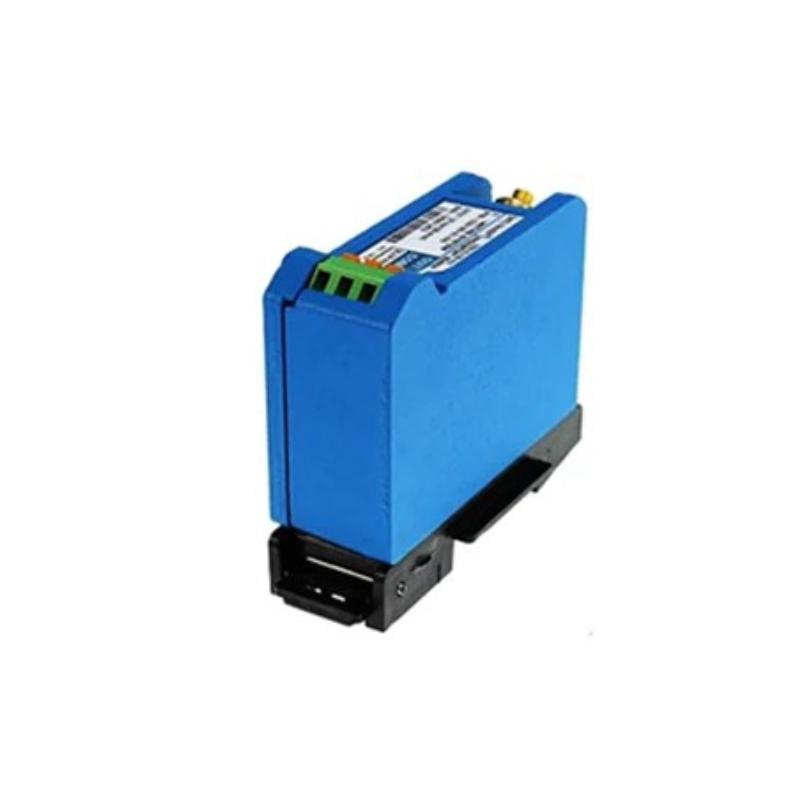

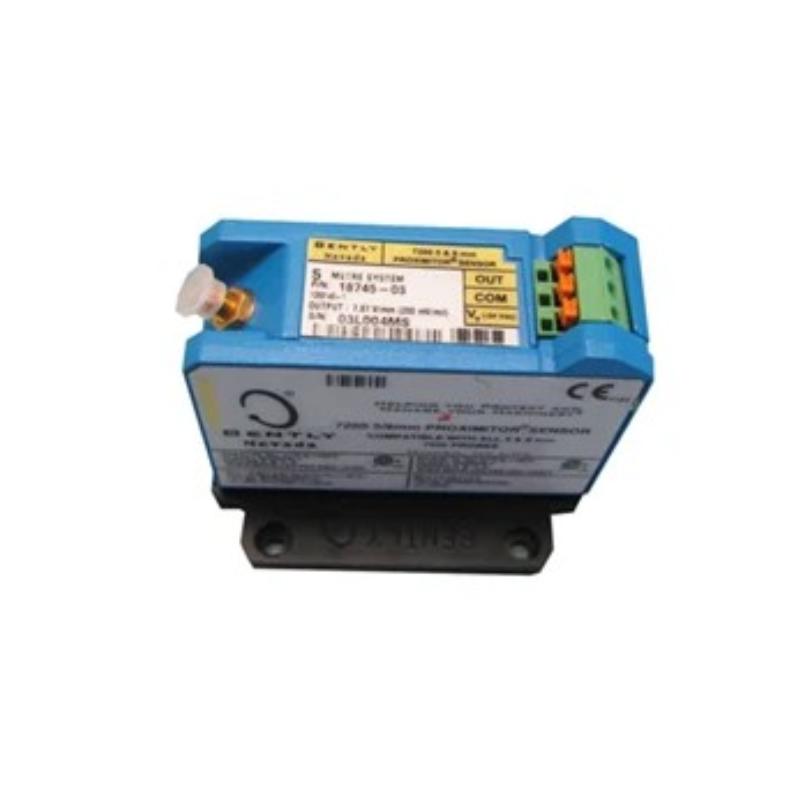

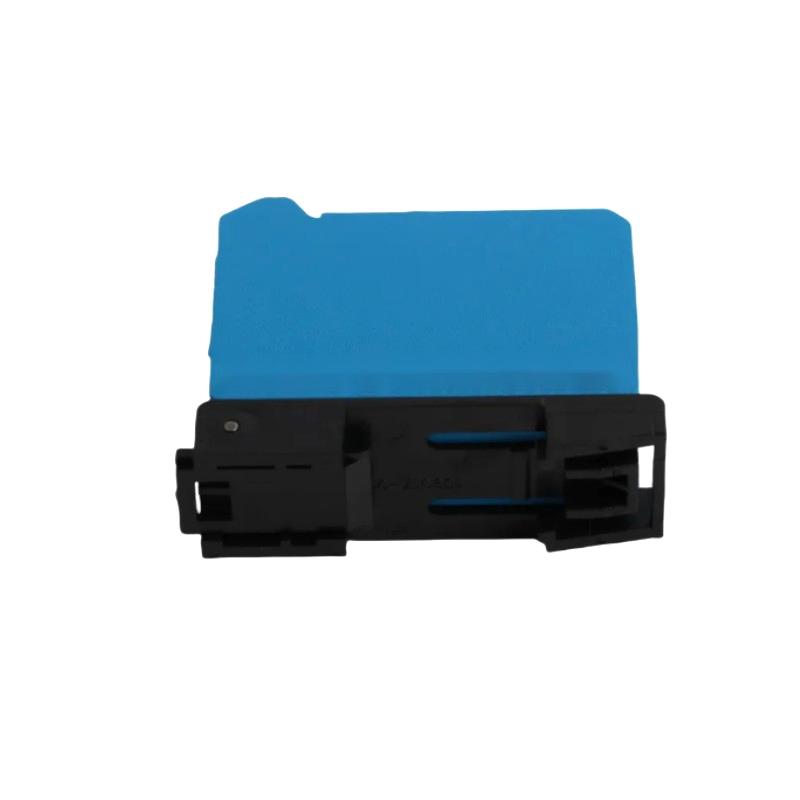

The Bently Nevada 330180-X2-05 163358-02 Proximitor Sensor is part of the 3300 XL proximity transducer system, designed for continuous monitoring of vibration, shaft displacement, and rotor position in critical rotating machinery.
It operates with eddy current proximity probes and extension cables, converting gap variation signals into stable analog outputs for machinery protection and condition monitoring systems. This enables accurate real-time tracking of equipment health in turbines, compressors, pumps, and other high-value rotating assets.
Based on 3300 XL series documentation, the 330180 platform is engineered for high stability, strong electromagnetic immunity, and long-term operation in harsh industrial environments used in power generation and process industries.
The 163358-02 modification code represents a configuration-specific variant within the 330180 platform, typically related to calibration, certification, or system integration differences.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Bently Nevada |
| Series | 3300 XL |
| Model | 330180-X2-05 |
| Modification | 163358-02 |
| Type | Proximitor Sensor / Signal Conditioning Module |
| Measurement System | Eddy current non-contact transducer system |
| Function | Vibration / shaft position / displacement monitoring |
| Operating Voltage | 10–30 VDC |
| Output Signal | Linear analog voltage proportional to gap distance |
| System Compatibility | 3300 XL probe & extension cable system |
| Application | Machinery protection and condition monitoring |
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Size (L × W × H) | 88 × 36 × 71 mm |
| Weight | 0.20–0.25 kg |
