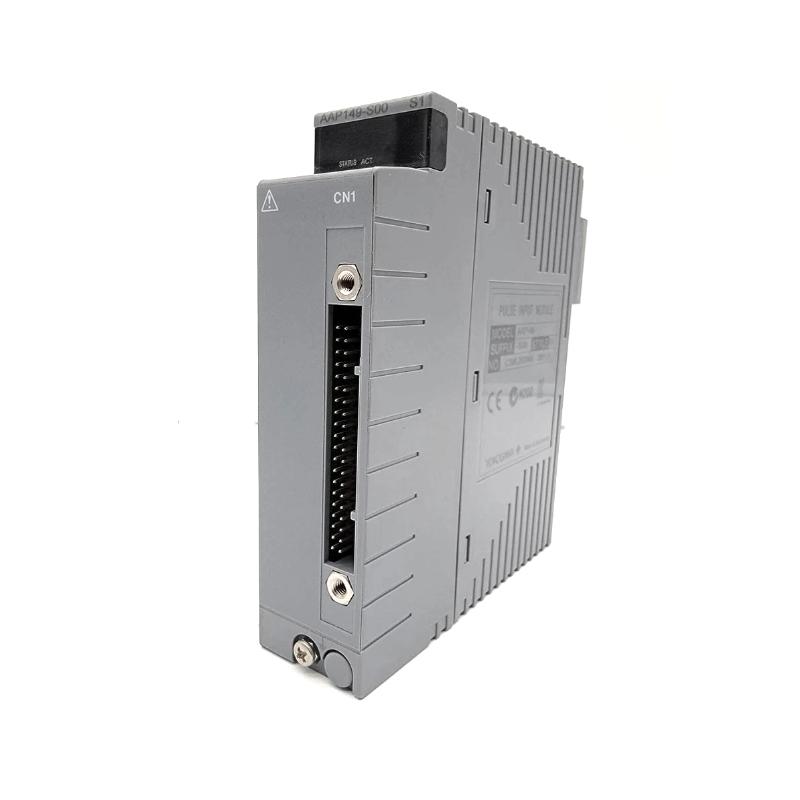

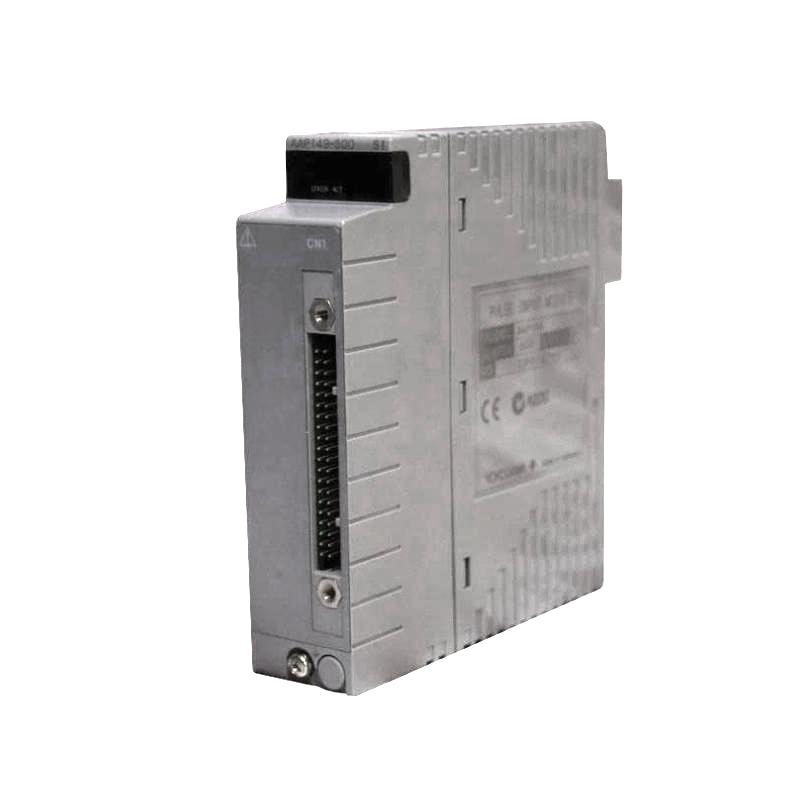

Yokogawa AAP149 Analog Input/Output Module Brand New Original

Applications

• Process Control – Provides accurate analog measurements and control for temperature, pressure, flow, and level loops.

• Industrial Automation – Manages analog I/O for synchronized machine operation and high-speed control.

• Energy Management Systems – Captures and outputs analog data for energy monitoring, regulation, and optimization.

• Environmental Monitoring – Interfaces with environmental sensors for precise data acquisition and actuator control.

Advantages

• High Channel Count – With 8 inputs and 8 outputs, the AAP149 consolidates analog I/O into a single module, minimizing cabinet space and complexity.

• Precision and Performance – 16-bit resolution and ±0.1% accuracy deliver reliable and fine-grained analog control.

• Fast Response – 1000 Hz input sampling and 2 ms output response support real-time system demands.

• Robust Noise Immunity – Galvanic isolation enhances signal integrity in electrically challenging environments.

• Wide Operating Range – Operates reliably across a broad temperature spectrum, suitable for diverse industrial conditions.

• Modular and Scalable – Easy to integrate and expand in Yokogawa control systems, supporting scalable automation architectures.

Technical FAQs

1. How many input and output channels does the Yokogawa AAP149 have?
   It provides 8 analog input channels and 8 analog output channels.

2. What types of signals does the AAP149 support?
   It supports both voltage (–10 V to +10 V) and current (4–20 mA) signals.

3. What is the resolution of the module?
   The AAP149 offers 16-bit resolution for high-precision analog data handling.

4. What is the typical input sampling rate?
   Inputs are sampled at a rate of 1000 Hz.

5. How fast does the module respond on outputs?
   Outputs update with a response time of approximately 2 ms per channel.

6. Does the AAP149 provide galvanic isolation?
   Yes — all channels are galvanically isolated to maintain signal fidelity.

7. What is the operating temperature range of this module?
   It operates within −20 °C to +60 °C, suitable for industrial environments.

8. What are the physical dimensions of the AAP149?
   The module measures 60 mm × 125 mm × 150 mm.

9. How much does the AAP149 weigh?
   The module weighs approximately 0.42 kg.

10. What applications is the AAP149 best suited for?
    It is ideal for process control, industrial automation, energy monitoring, and environmental data acquisition systems.
