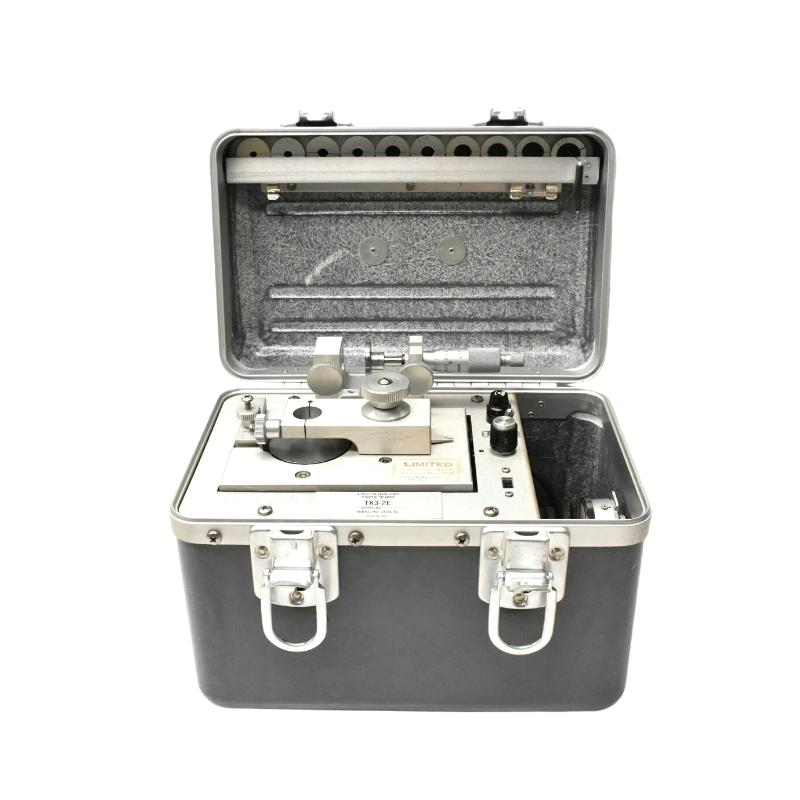

Bently Nevada TK3-2E 14700-01 Calibration Instruments

Applications

• Performs functional calibration of Bently Nevada proximity transducer systems before equipment commissioning.

• Simulates shaft vibration and shaft position for testing machinery protection systems without operating the machine.

• Verifies the accuracy of vibration monitors installed on turbines, compressors, generators, and industrial motors.

• Supports routine maintenance and preventive inspection of machinery condition monitoring systems.

• Ideal for field service engineers, maintenance departments, and equipment commissioning teams.

• Widely used in power generation, oil & gas, petrochemical, and heavy industrial facilities for instrumentation verification.

Key Advantages

• Generates precise mechanical vibration signals for accurate monitor calibration.

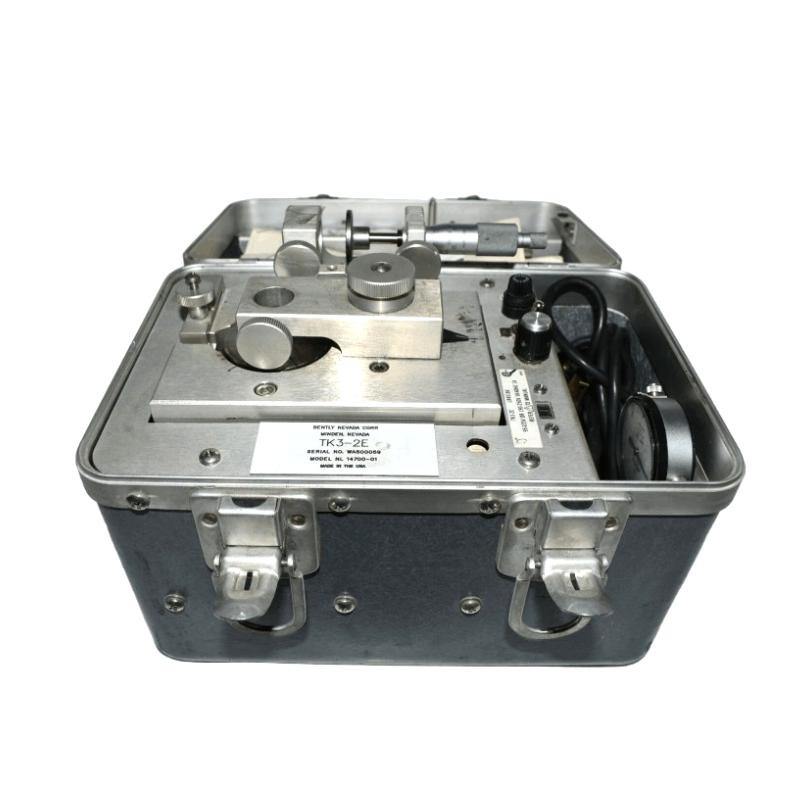

• Simulates both shaft vibration and shaft position using an integrated wobble plate and spindle micrometer.

• Eliminates the need to operate rotating machinery during calibration and functional testing.

• Portable, rugged design makes it suitable for both workshop and on-site maintenance activities.

• Helps improve the accuracy and reliability of machinery protection systems.

• Reduces maintenance time while increasing confidence in vibration monitoring performance.

Technical FAQs

Q1: What is the primary purpose of the TK3-2E Calibration Instrument?
It is designed to simulate shaft vibration and shaft position for testing and calibrating Bently Nevada machinery monitoring systems.

Q2: Which monitoring systems can it calibrate?
It is commonly used with Bently Nevada proximity transducer systems and vibration monitor modules.

Q3: Does the instrument generate real mechanical vibration?
Yes. It uses a motor-driven wobble plate to generate precise mechanical vibration for calibration purposes.

Q4: Can it verify shaft position measurements?
Yes. An integrated spindle micrometer allows accurate shaft position simulation.

Q5: Is the TK3-2E intended for field use?
Yes. It is suitable for both workshop calibration and on-site commissioning.

Q6: What industries commonly use this calibration instrument?
Power generation, petrochemical, oil & gas, mining, pulp & paper, and heavy manufacturing.

Q7: Does it require rotating machinery during calibration?
No. Calibration can be performed without operating the machine.

Q8: Can it improve maintenance efficiency?
Yes. It enables quick verification of monitoring system performance before equipment startup.

Q9: Is it compatible with proximity probes?
Yes. It is designed to test compatible Bently Nevada proximity probe systems.

Q10: Why is regular calibration important?
Routine calibration ensures vibration monitoring systems maintain measurement accuracy and dependable machinery protection.
