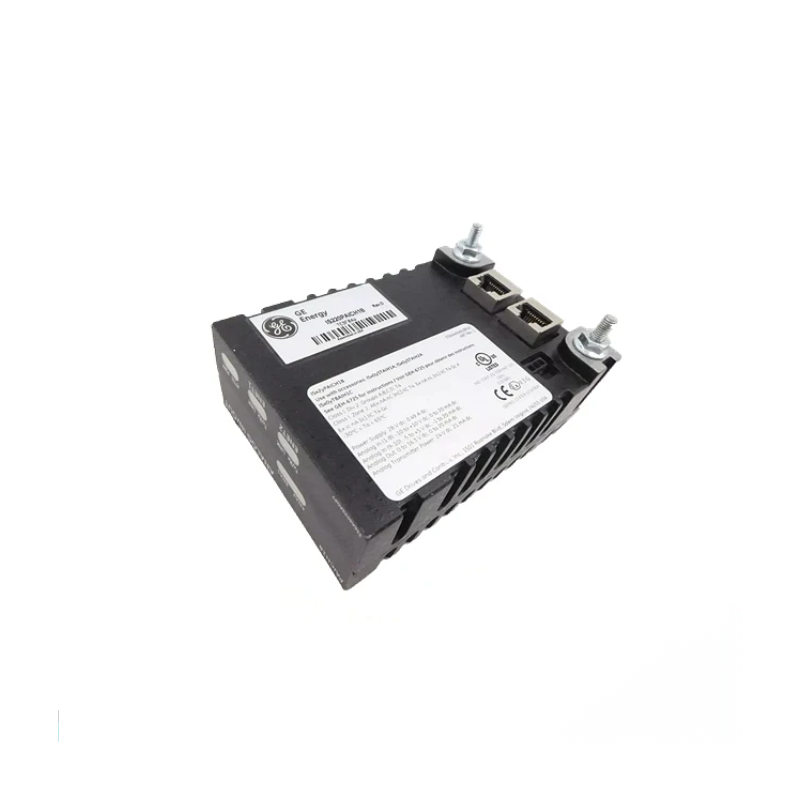

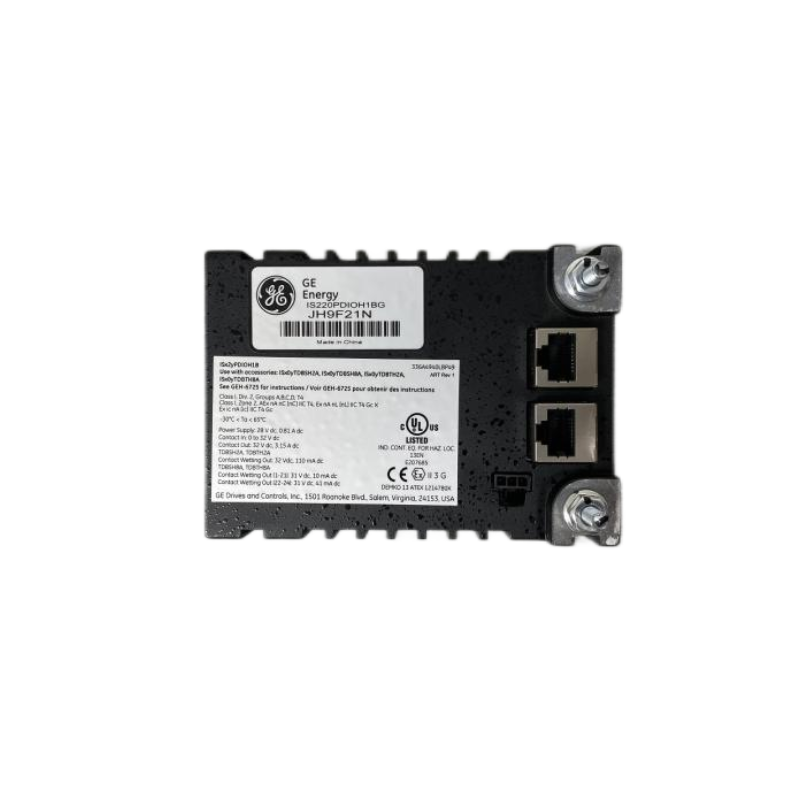

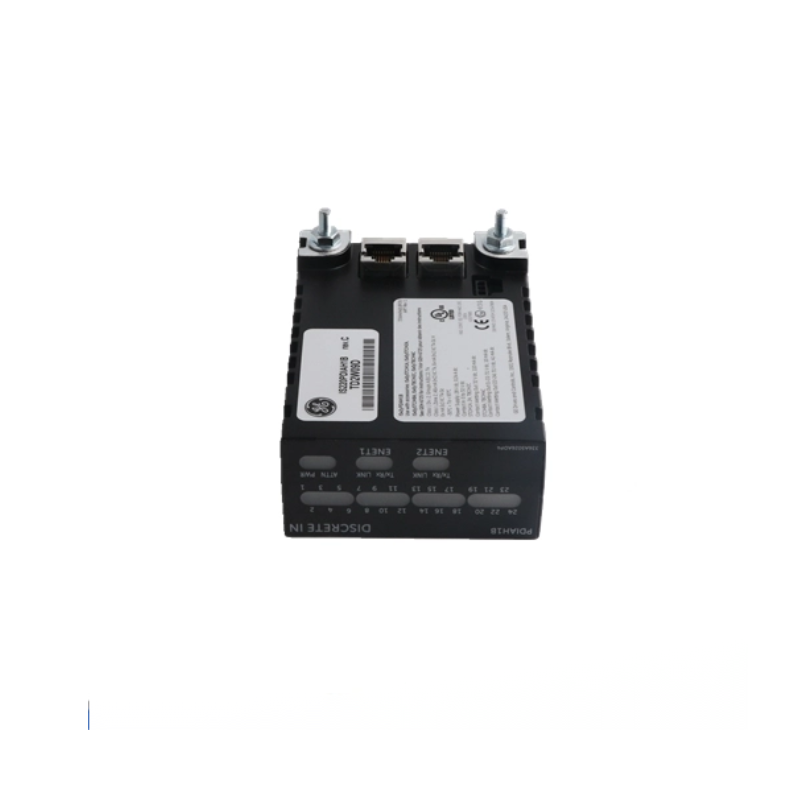

GE IS220PDIOH1B Discrete Input/Output Module for Mark VIe Control System
GE IS220PDIOH1B Discrete Input/Output Module for Mark VIe Control System
0.0
Points
Brand:GE Fanuc PLC Item No.:GE IS220PDIOH1B Product Origin: USA Product Dimensions:125 × 83 × 42 mm Product Weight:0.88 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IS220PDIOH1B is a robust discrete input/output (I/O) module designed for the Mark VIe and Mark VIeS control platforms. This module combines high-density digital inputs and outputs to provide reliable, real-time signal acquisition and control for industrial processes. It is engineered to meet the demanding requirements of turbine control, power generation, and heavy industrial automation.
With fast input response, quick output switching, and built-in diagnostics, the IS220PDIOH1B ensures accurate field device operation and reduces system downtime. Its compact design and flexible installation options make it ideal for space-constrained control panels while maintaining superior performance and reliability.
Technical Specifications
Parameter
Specification
Model
IS220PDIOH1B
Module Type
Discrete Input/Output Module
System Compatibility
Mark VIe / Mark VIeS
Digital Inputs
32 channels (24 V DC)
Digital Outputs
16 channels (relay type)
Output Rating
Up to 2 A @ 250 VAC / 3 A @ 30 VDC
Input Response Time
< 1 ms
Output Switching Time
< 10 ms
Isolation
Optical / Channel-to-channel
Power Supply
24 V DC
Power Consumption
≤ 10 W
Communication Interface
Dual Ethernet (IONet / Modbus)
Operating Temperature
-40°C to +70°C
Storage Temperature
-50°C to +85°C
Protection Rating
IP20
Dimensions (L×W×H)
125 × 83 × 42 mm
Weight
0.88 kg
Recommended Related Modules
IS220PDIAH1B – Discrete Input Module
IS220PDOAH1B – Discrete Output Module
IS220PAOCH1B – Analog Output Module
IS220PAICH1A – Analog Input Module
IS220UCSAH1A – Controller Module
Popular GE Mark VIe Modules
IS220PDIAH1A
IS220PDIIH1B
IS220YDIAS1A
IS220YDOAS1A
IS220PPROH1A
IS220PRTDH1A
Application Areas
The IS220PDIOH1B is commonly used in high-demand industrial environments that require reliable and precise digital I/O control:
Gas and steam turbine control systems
Power generation plants and substations
Oil & gas process automation
Industrial automation and manufacturing lines
Safety interlock and emergency shutdown systems
Its combined input/output capability allows for efficient panel design while maintaining fast and accurate signal handling. (industrialautomationparts.com)
Key Advantages
High-Density Digital I/O – Supports large numbers of inputs and outputs on a single module
Fast Response – Sub-millisecond input detection and rapid output switching
Robust Isolation – Optical isolation between channels protects against electrical noise (industrialautomationparts.com)
Dual Ethernet Communication – Ensures redundancy and high system availability
Compact & Rugged Design – Suitable for panel mounting in space-constrained environments
Advanced Diagnostics – Real-time monitoring simplifies maintenance and troubleshooting
Technical FAQs
1. What is the main function of IS220PDIOH1B?
It manages both discrete inputs and outputs, enabling reliable digital communication between field devices and the Mark VIe control system.
2. How many digital input channels are available?
32 discrete input channels. (industrialautomationparts.com)
3. How many output channels does it provide?
16 relay-type outputs suitable for controlling industrial loads.
4. What is the input voltage range?
0–32 V DC, with 24 V DC nominal.
5. Does the module provide electrical isolation?
Yes, optical isolation between channels ensures reliable operation in high-EMI environments. (industrialautomationparts.com)
6. Can it operate in extreme temperatures?
Yes, it supports operation from -40°C to +70°C, with storage from -50°C to +85°C.
7. What is the response time for digital inputs?
Typically less than 1 ms for fast and accurate detection.
8. Are outputs fast-switching?
Yes, typical output switching occurs within 10 ms.
9. What industries typically use this module?
Power generation, oil & gas, heavy industry, and automated manufacturing lines.
10. Why choose IS220PDIOH1B?
Its high-density I/O, rapid response, strong isolation, and dual Ethernet redundancy make it ideal for critical control system applications.
