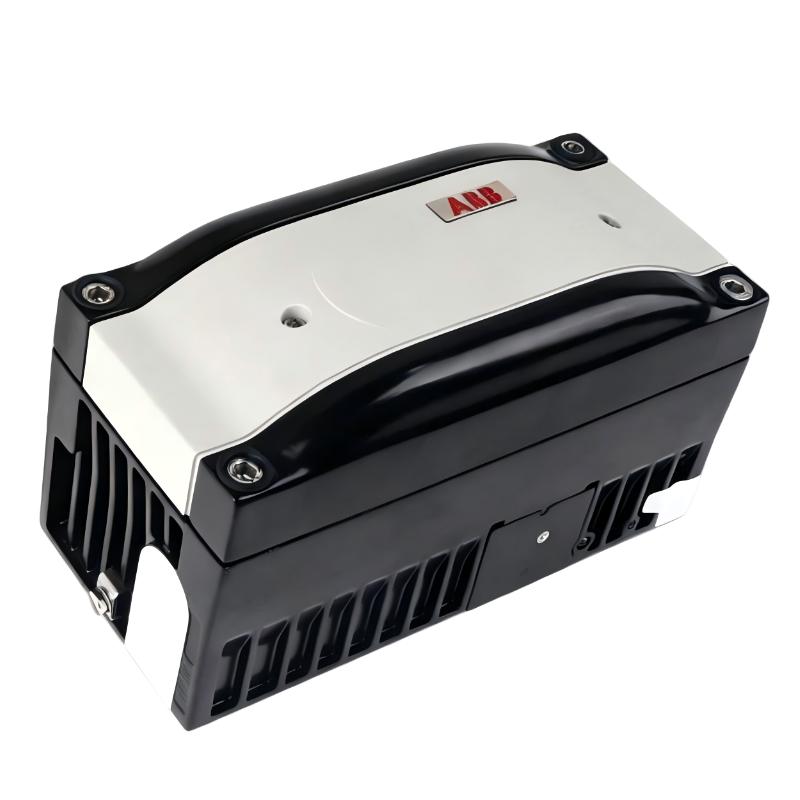

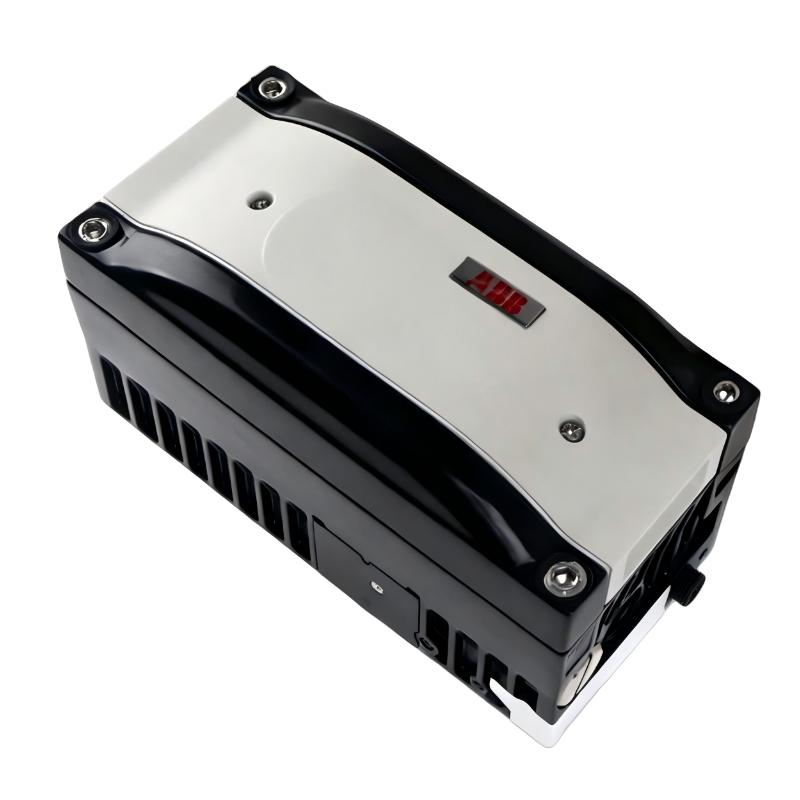

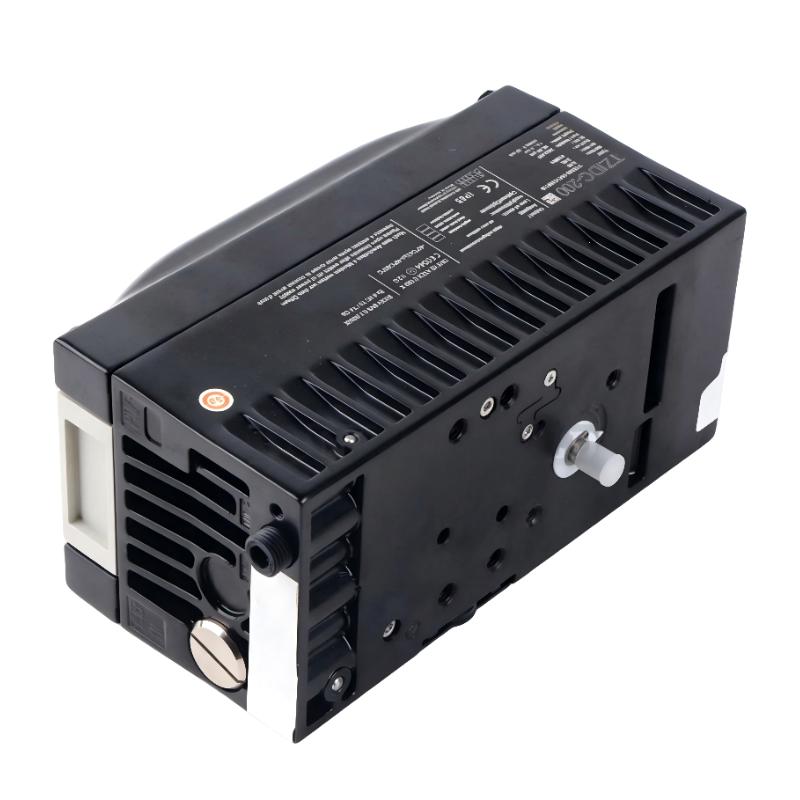

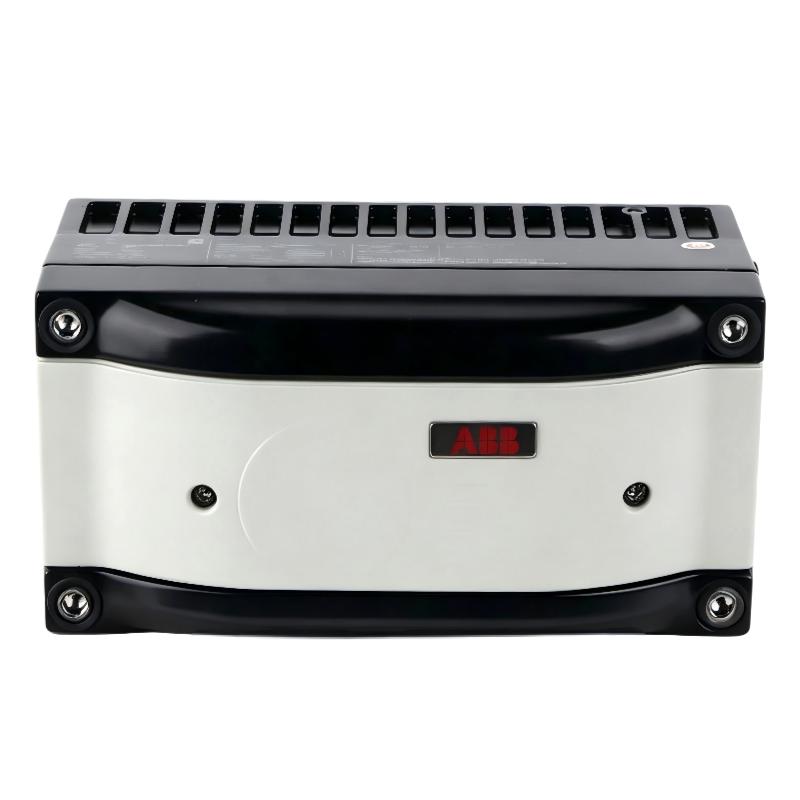

ABB V18348-10113300110 TZIDC-200 Digital Positioner

Applications

• Used on control valves in oil and gas pipelines to maintain stable flow, pressure, and distribution control.

• Applied in chemical processing plants where accurate valve positioning is required for dosing and reaction stability.

• Installed in power generation systems for steam, condensate, and cooling water flow regulation.

• Used in refinery process units to control separation, heating, and transfer stages with consistent valve response.

• Integrated with pneumatic actuators in automated process control loops for continuous modulation.

• Suitable for general process industries requiring high-precision valve positioning and stable loop performance.

Key Advantages

• Digital control architecture improves positioning accuracy compared with conventional pneumatic positioners.

• Supports HART communication for configuration, diagnostics, and process feedback integration.

• Automatic calibration and adaptation reduce commissioning time and simplify setup on-site.

• Suitable for both rotary and linear actuators, offering flexible installation options.

• Stable operation under vibration and harsh industrial environments ensures long service life.

• Provides consistent valve response that improves overall process control stability.

Technical FAQs

Q1: What is the main function of this positioner?
It converts a 4–20 mA control signal into a pneumatic output to precisely position a control valve.

Q2: Is this a digital or analog positioner?
It is a digital intelligent valve positioner with advanced control functions.

Q3: What communication protocol does it support?
It supports HART communication for configuration and diagnostics.

Q4: Can it be used with both rotary and linear valves?
Yes, it is compatible with both actuator types.

Q5: Does it support automatic calibration?
Yes, it includes automatic commissioning and parameter adjustment functions.

Q6: What industries commonly use it?
Oil & gas, chemical processing, power generation, and general process industries.

Q7: Is it suitable for hazardous environments?
Yes, it is designed for use in industrial and potentially hazardous areas depending on configuration.

Q8: What happens if the control signal is lost?
The valve moves to a predefined fail-safe position or holds position depending on setup.

Q9: Does it require frequent maintenance?
No, it is designed for stable long-term operation with minimal maintenance requirements.

Q10: What is its role in a control loop?
It acts as the final control element, converting controller output into valve movement.
