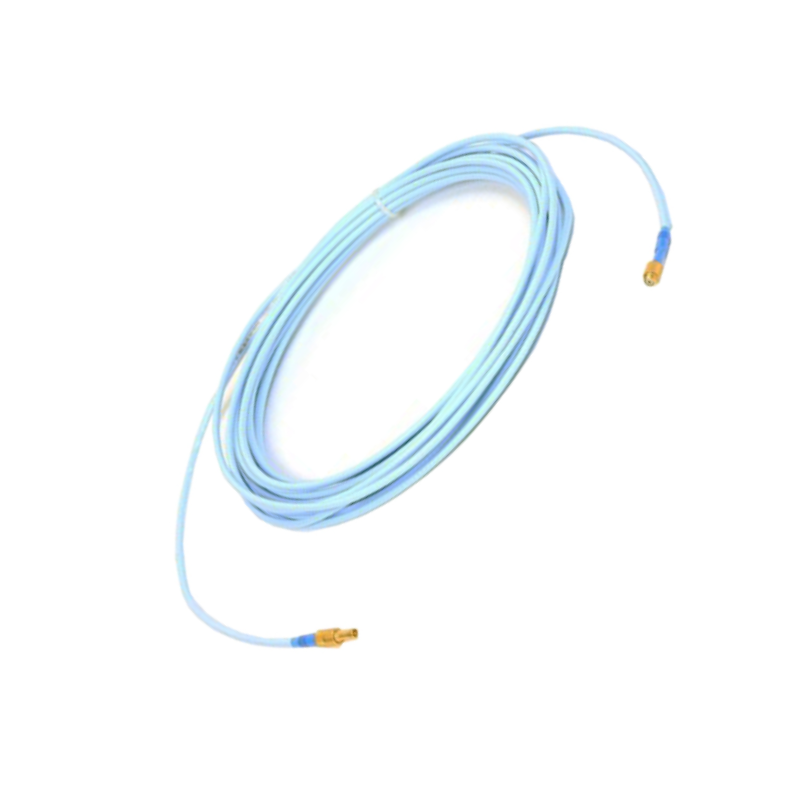

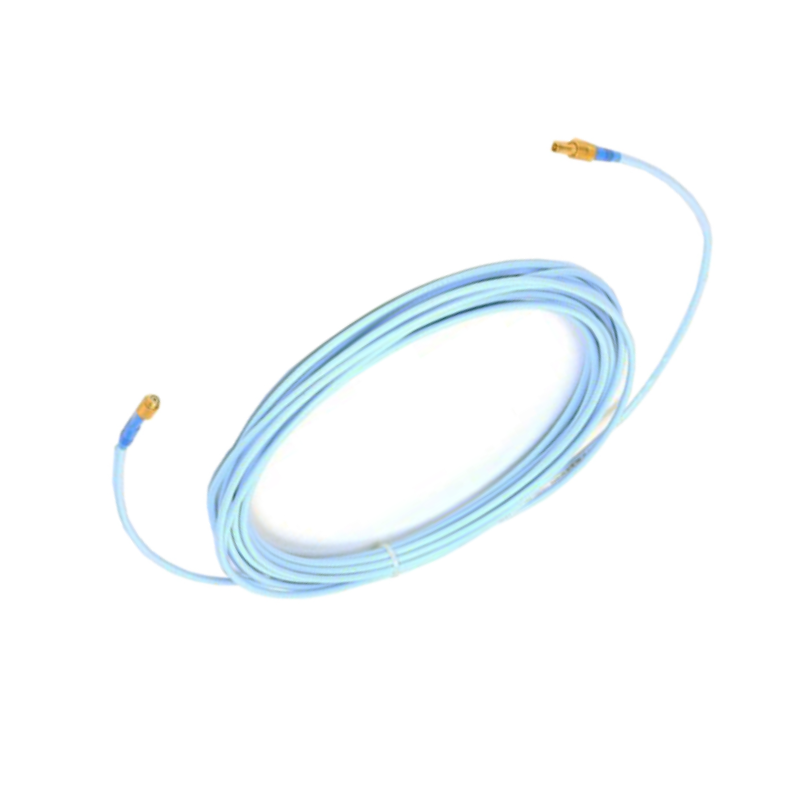

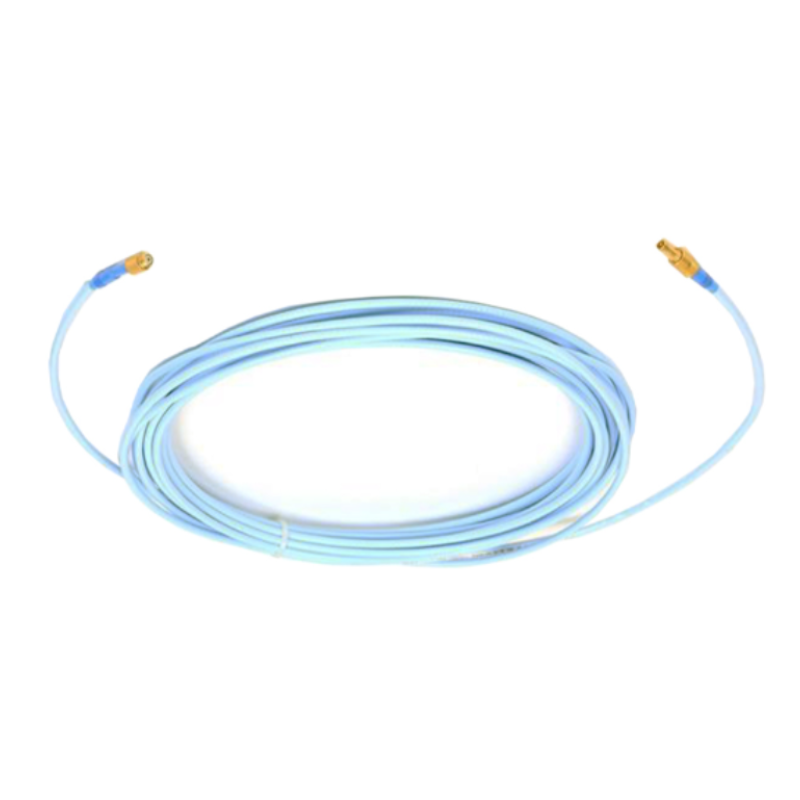

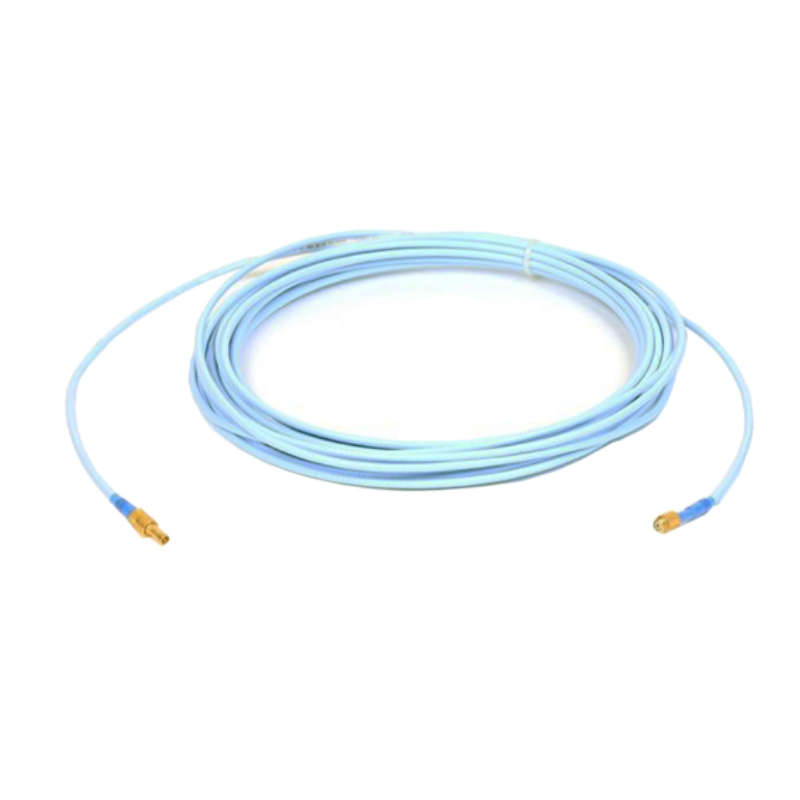

Bently Nevada 330190-080-00-00 3300 XL Extended Temperature Range Extension Cable
Bently Nevada 330190-080-00-00 3300 XL Extended Temperature Range Extension Cable
0.0
Points
Brand:Bently Nevada PLC Item No.:Bently Nevada 330190-080-00-00 Product Origin:USA Product Dimensions:8000 × 8 × 8 mm Product Weight:0.289 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 330190-080-00-00 is a 3300 XL Extended Temperature Range (ETR) extension cable engineered for use with Bently Nevada 3300 XL 8 mm proximity transducer systems. It provides a calibrated electrical connection between a compatible proximity probe and a Proximitor® sensor, ensuring accurate vibration, shaft position, and speed measurements in critical rotating machinery.
With an 8.0-meter cable length, this extension cable is ideal for installations requiring greater routing flexibility while maintaining signal integrity. Manufactured with high-quality triaxial construction and FEP insulation, it is suitable for demanding industrial environments where long-term reliability is essential.
Technical Specifications
Item
Description
Manufacturer
Bently Nevada (Baker Hughes)
Model
330190-080-00-00
Product Type
Extended Temperature Range (ETR) Extension Cable
Series
3300 XL 8 mm Proximity Transducer System
Cable Length
8.0 m (26.2 ft)
Cable Option
00 – Standard cable
Agency Approval
00 – Not Required
Cable Construction
75 Ω shielded triaxial cable with FEP insulation
Function
Connects proximity probe to Proximitor® sensor
System Compatibility
Bently Nevada 3300 XL 8 mm systems
Typical Capacitance
69.9 pF/m (21.3 pF/ft)
Application
Vibration, shaft position, and speed monitoring
Mechanical Dimensions & Weight
Parameter
Value
Dimensions (L × W × H)
8000 × 8 × 8 mm
Weight
Approx. 0.289 kg
Recommended Related Models
The 330190-080-00-00 is commonly used with:
Bently Nevada 3300 XL 8 mm Proximity Probe
Bently Nevada 3300 XL Proximitor® Sensor
Bently Nevada 3500/40M Proximitor Monitor
Bently Nevada 3500 Machinery Protection System
Bently Nevada 330130 Series Extension Cables
Popular Bently Nevada Models
Frequently selected products for machinery condition monitoring include:
3300 XL 8 mm Proximity Probe
3300 XL Proximitor® Sensor
330130 Standard Extension Cable
3500/22M Transient Data Interface
3500/42M Proximitor/Seismic Monitor
3500/15 Power Supply Module
Applications
The 330190-080-00-00 is widely used in machinery protection and condition monitoring systems for:
Steam turbines
Gas turbines
Centrifugal compressors
Industrial pumps
Electric motors
Generators
Oil and gas production facilities
Petrochemical plants
Power generation stations
Heavy rotating machinery
Advantages
Designed specifically for 3300 XL Extended Temperature Range systems
Maintains calibrated transducer system performance
High-quality triaxial construction for stable signal transmission
FEP insulation offers excellent durability in demanding environments
Reliable performance for long-term machinery monitoring
Easy integration with compatible 3300 XL components
Supports accurate vibration and shaft position measurements
Engineered for critical rotating equipment applications
Trusted solution for industrial condition monitoring
Technical FAQs
1. What is the primary function of the 330190-080-00-00?
It connects a compatible 3300 XL proximity probe to a Proximitor® sensor while maintaining the calibrated electrical characteristics of the transducer system.
2. What is the cable length?
The cable length is 8.0 meters (26.2 feet).
3. Is this an armored cable?
No. The 00 cable option indicates the standard (non-armored) cable configuration.
4. What does the final "00" represent?
It indicates that no special agency approval option is specified.
5. Which systems is it compatible with?
It is designed for Bently Nevada 3300 XL 8 mm proximity transducer systems.
6. What are the dimensions?
The cable dimensions are approximately 8000 × 8 × 8 mm (L × W × H).
7. What is the weight?
The cable weighs approximately 0.289 kg.
8. What type of cable construction is used?
It features a 75 Ω shielded triaxial cable with FEP insulation, designed for dependable industrial signal transmission.
9. Where is this extension cable commonly installed?
It is commonly installed in vibration and shaft position monitoring systems for turbines, compressors, pumps, motors, and other critical rotating equipment.
10. Why choose the 330190-080-00-00?
It provides reliable signal transmission, extended installation flexibility, and full compatibility with Bently Nevada 3300 XL monitoring systems, making it a dependable choice for industrial machinery protection.
