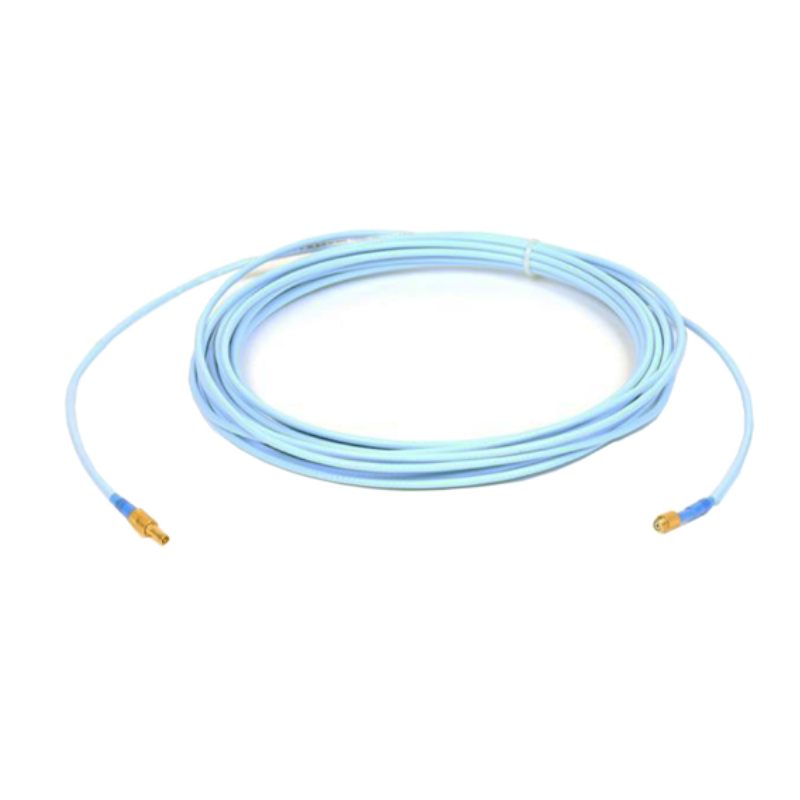

Bently Nevada 330190-080-01-05 3300 XL Extended Temperature Range Armored Extension Cable
Bently Nevada 330190-080-01-05 3300 XL Extended Temperature Range Armored Extension Cable
0.0
Points
Brand:Bently Nevada PLC Item No.:Bently Nevada 330190-080-01-05 Product Origin:USA Product Dimensions:8000 × 8 × 8 mm Product Weight:0.82 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada 330190-080-01-05 is a 3300 XL Extended Temperature Range (ETR) armored extension cable designed for use with 3300 XL 8 mm proximity transducer systems. It provides a calibrated electrical connection between a compatible proximity probe and a Proximitor® sensor, ensuring dependable signal transmission for vibration, shaft position, and speed monitoring in demanding industrial environments.
With an 8.0-meter armored cable and CSA, ATEX, and IECEx approvals, this model is well suited for hazardous-area installations where both mechanical protection and certified compliance are required. Its rugged construction helps maintain long-term reliability in applications involving turbines, compressors, pumps, and other critical rotating equipment.
Product Specifications
Item
Description
Manufacturer
Bently Nevada (Baker Hughes)
Model
330190-080-01-05
Product Type
Extended Temperature Range Armored Extension Cable
Series
3300 XL 8 mm Proximity Transducer System
Cable Length
8.0 m (26.2 ft)
Cable Option
01 – Armored cable
Agency Approval
05 – CSA, ATEX, IECEx
Cable Construction
75 Ω shielded triaxial cable with FEP insulation
Typical Capacitance
69.9 pF/m (21.3 pF/ft)
Minimum Bend Radius
25.4 mm
Function
Connects proximity probe to Proximitor® sensor
System Compatibility
Bently Nevada 3300 XL 8 mm monitoring systems
Physical Dimensions & Weight
Parameter
Value
Dimensions (L × W × H)
8000 × 8 × 8 mm
Weight
Approx. 0.82 kg
Recommended Related Models
The 330190-080-01-05 is commonly used together with:
Bently Nevada 3300 XL 8 mm Proximity Probe
Bently Nevada 3300 XL Proximitor® Sensor
Bently Nevada 3500/40M Proximitor Monitor
Bently Nevada 3500 Machinery Protection System
Bently Nevada 330130 Series Extension Cables
Popular Bently Nevada Models
Common products used in rotating machinery monitoring include:
3300 XL 8 mm Proximity Probe
3300 XL Proximitor® Sensor
330130 Standard Extension Cable
3500/22M Transient Data Interface
3500/42M Proximitor/Seismic Monitor
3500/15 Power Supply Module
Industrial Applications
The 330190-080-01-05 is widely installed in industrial machinery monitoring systems, including:
Steam turbines
Gas turbines
Compressors
Industrial pumps
Electric motors
Generators
Oil and gas facilities
Petrochemical plants
Power generation stations
Heavy rotating machinery
Key Advantages
Designed for 3300 XL Extended Temperature Range systems
Armored construction for enhanced mechanical protection
Certified with CSA, ATEX, and IECEx approvals
Maintains calibrated transducer system performance
Stable signal transmission over extended cable lengths
High-performance FEP insulated triaxial cable
Excellent resistance to vibration and harsh environments
Simplifies integration with existing 3300 XL installations
Reliable operation in hazardous industrial locations
Ideal for long-term machinery condition monitoring
Technical FAQs
1. What is the function of the 330190-080-01-05?
It connects a compatible 3300 XL proximity probe to a Proximitor® sensor while maintaining the calibrated characteristics of the transducer system.
2. What is the cable length?
The cable length is 8.0 meters (26.2 feet).
3. Is this an armored cable?
Yes. The 01 configuration specifies an armored cable for enhanced mechanical protection.
4. What does the 05 suffix indicate?
It specifies CSA, ATEX, and IECEx agency approvals for certified industrial and hazardous-area applications.
5. Which systems is it compatible with?
It is designed for Bently Nevada 3300 XL 8 mm proximity transducer systems.
6. What are the dimensions?
The cable dimensions are approximately 8000 × 8 × 8 mm (L × W × H).
7. What is the weight?
The cable weighs approximately 0.82 kg based on the armored cable construction and 8.0 m length.
8. What type of cable construction does it use?
It features a 75 Ω shielded triaxial cable with FEP insulation for reliable signal transmission in harsh industrial environments.
9. Where is this cable commonly used?
It is commonly installed in vibration and shaft position monitoring systems for turbines, compressors, motors, pumps, and other rotating machinery.
10. Why choose the 330190-080-01-05?
It combines rugged armored protection, hazardous-area certifications, and dependable signal performance, making it an excellent solution for critical machinery protection and condition monitoring applications.
