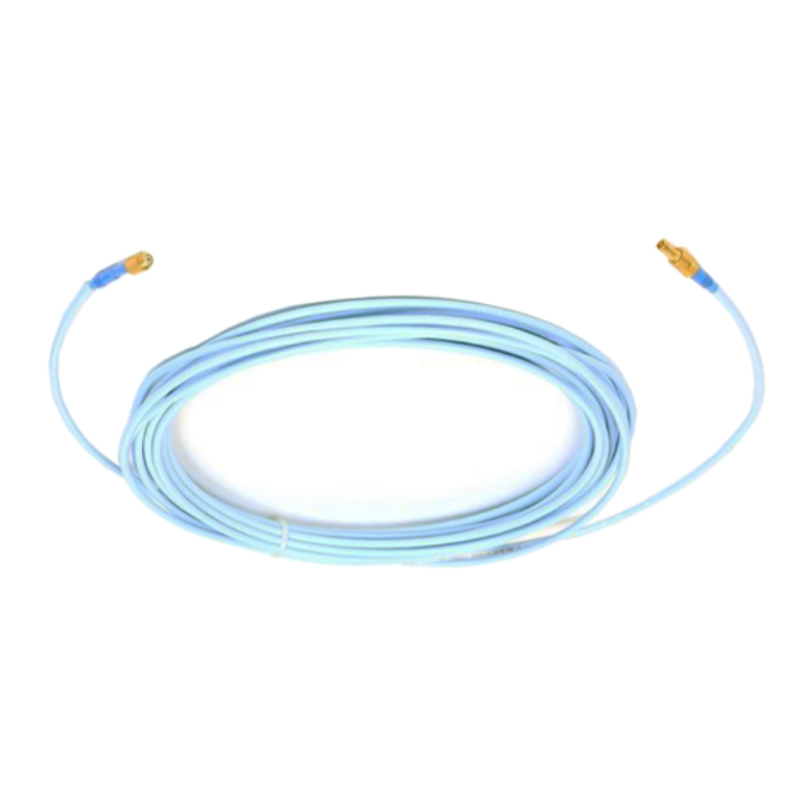

The Bently Nevada 330190-085-03-CN is a 3300 XL Extended Temperature Range (ETR) extension cable designed for use with Bently Nevada 3300 XL 8 mm proximity transducer systems. It provides a calibrated connection between a proximity probe and a Proximitor® sensor, ensuring stable signal transmission for vibration, shaft position, and speed monitoring in critical rotating machinery.
This model features an 8.5-meter triaxial extension cable with a CN country-specific approval configuration, making it suitable for installations that require regional compliance support. The 03 configuration is typically associated with enhanced connector or system-specific configuration variants within the 3300 XL cable family, depending on installation requirements. The cable is widely used in turbines, compressors, pumps, and other heavy-duty industrial equipment where continuous condition monitoring is essential.
Technical Specifications
| Item | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 330190-085-03-CN |
| Product Type | 3300 XL Extension Cable (ETR Series) |
| System Series | 3300 XL 8 mm Proximity Transducer System |
| Cable Length | 8.5 m (27.9 ft) |
| Cable Option | 03 – System/connector configuration variant |
| Agency Approval | CN – Country-specific approvals |
| Cable Construction | 75 Ω shielded triaxial cable with FEP insulation |
| Function | Connects proximity probe to Proximitor® sensor |
| Typical Capacitance | 69.9 pF/m (21.3 pF/ft) |
| System Compatibility | Bently Nevada 3300 XL 8 mm systems |
Mechanical Dimensions & Weight
| Parameter | Value |
| Dimensions (L × W × H) | 8500 × 8 × 8 mm |
| Weight | Approx. 0.28 – 0.30 kg |
Recommended Related Models
The 330190-085-03-CN is commonly used with:
- Bently Nevada 3300 XL 8 mm Proximity Probe
- Bently Nevada 3300 XL Proximitor® Sensor
- Bently Nevada 3500/40M Proximitor Monitor
- Bently Nevada 3500 Machinery Protection System
- 330130 Series Extension Cable variants
