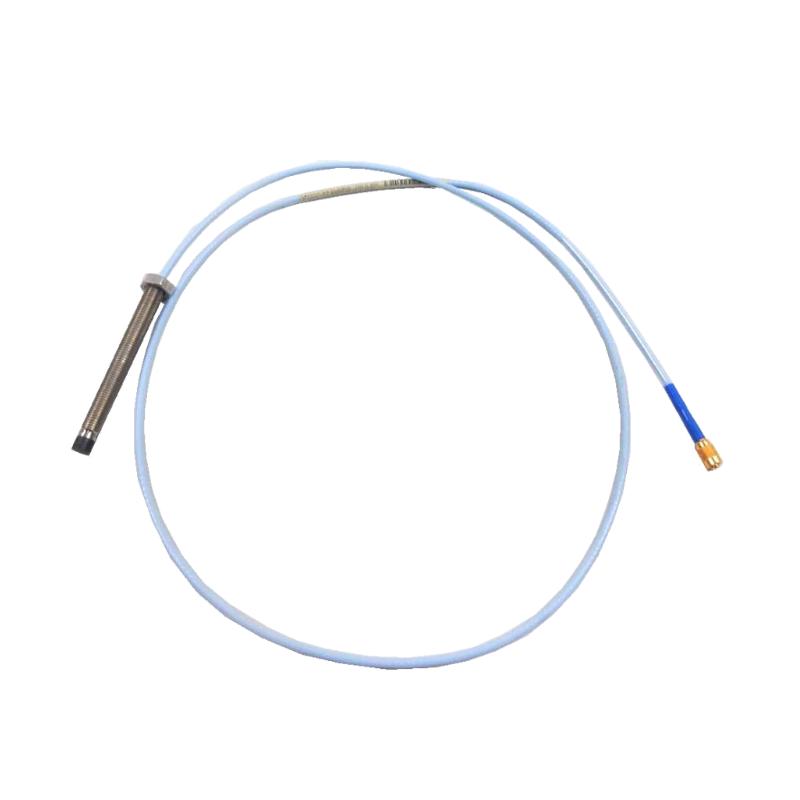

The Bently Nevada 330192-00-70-05-CN is a 3300 XL 8 mm Extended Temperature Range (ETR) armored proximity probe designed for high-precision, non-contact measurement of shaft vibration and radial position in industrial rotating machinery. It is part of the Bently Nevada 3300 XL proximity transducer system, widely used in machinery protection and condition monitoring applications.
This configuration features a 7.0 m integral armored cable (70 option) and a CN country-specific certification package, making it suitable for installations requiring both extended routing distance and regulatory compliance. The armored construction improves mechanical durability in harsh environments such as turbines, compressors, pumps, and generators operating under continuous vibration and temperature stress.
Technical Specifications
| Item | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 330192-00-70-05-CN |
| Product Type | 3300 XL 8 mm ETR Armored Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Case Length Option | 00 – standard configuration |
| Cable Length Option | 70 – 7.0 m integral cable |
| Cable Type | Armored, shielded triaxial cable |
| Agency Approval | CN – country-specific certification |
| Output Type | Analog displacement signal |
| Application | Vibration, shaft position, radial displacement monitoring |
Mechanical Dimensions & Weight
| Parameter | Value |
| Dimensions (L × W × H) | 7000 × 8 × 8 mm (assembly reference) |
| Weight | Approx. 0.45 – 0.90 kg (armored cable dependent) |
Recommended Related Models
The 330192-00-70-05-CN is commonly used with:
- Bently Nevada 3300 XL Proximitor® Sensor
- 330190 Series Extension Cable assemblies
- Bently Nevada 3500/40M Vibration Monitor Module
- Bently Nevada 3500 Machinery Protection System
- Standard 3300 XL mounting accessories
