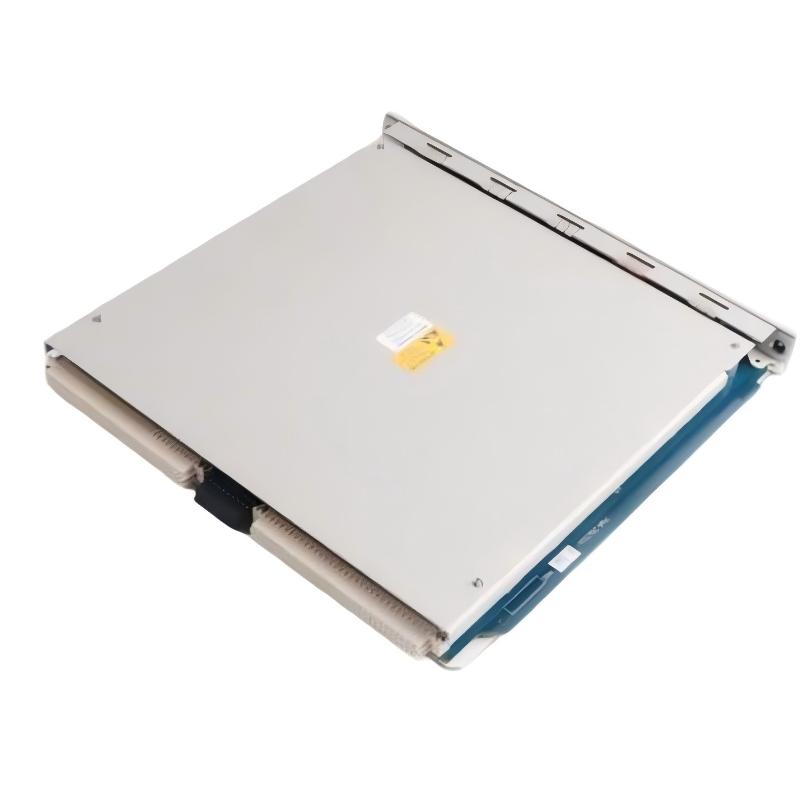

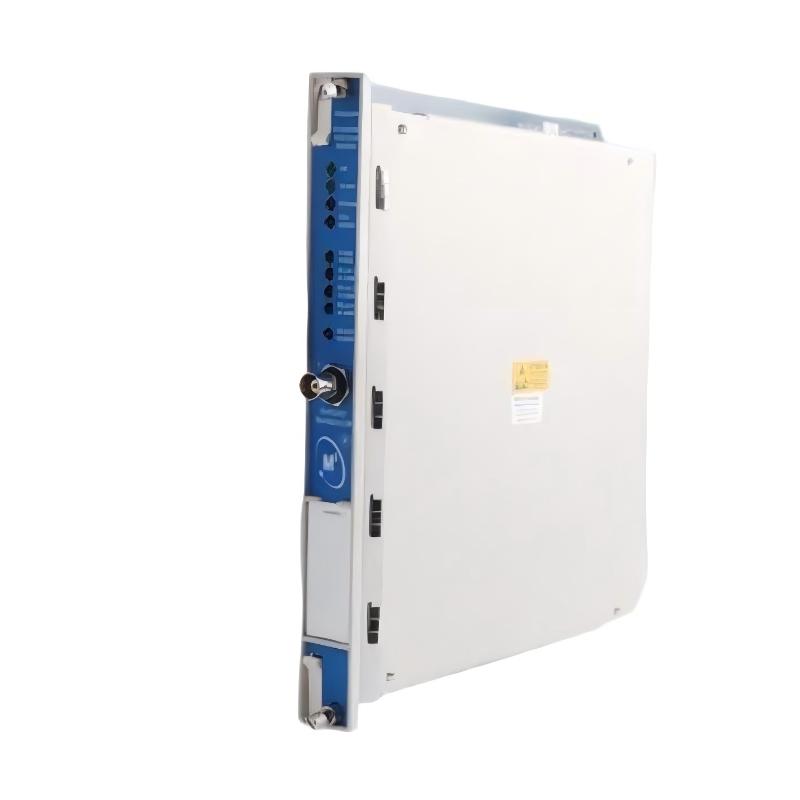

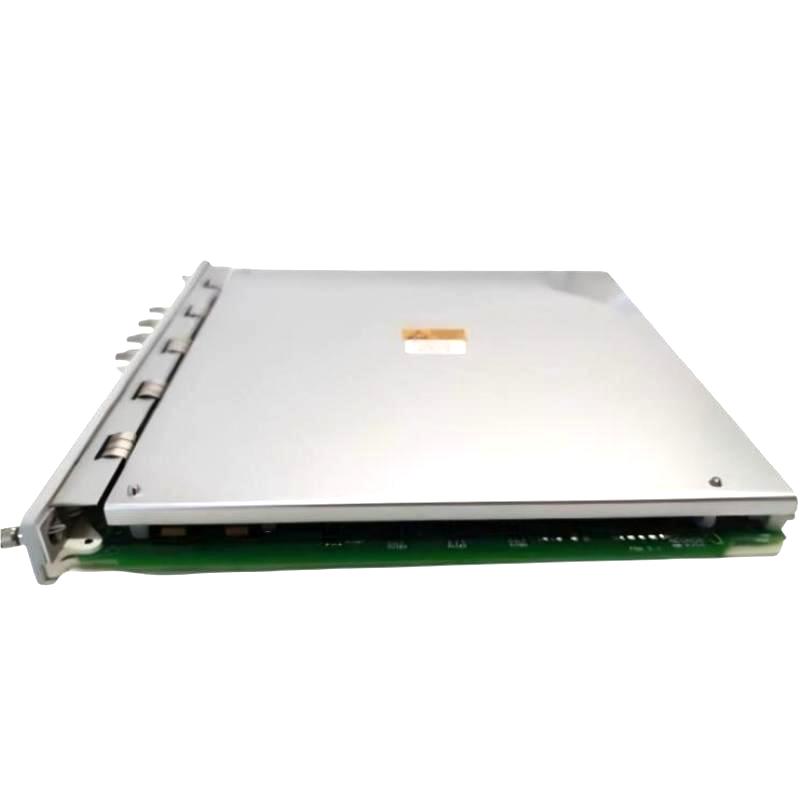

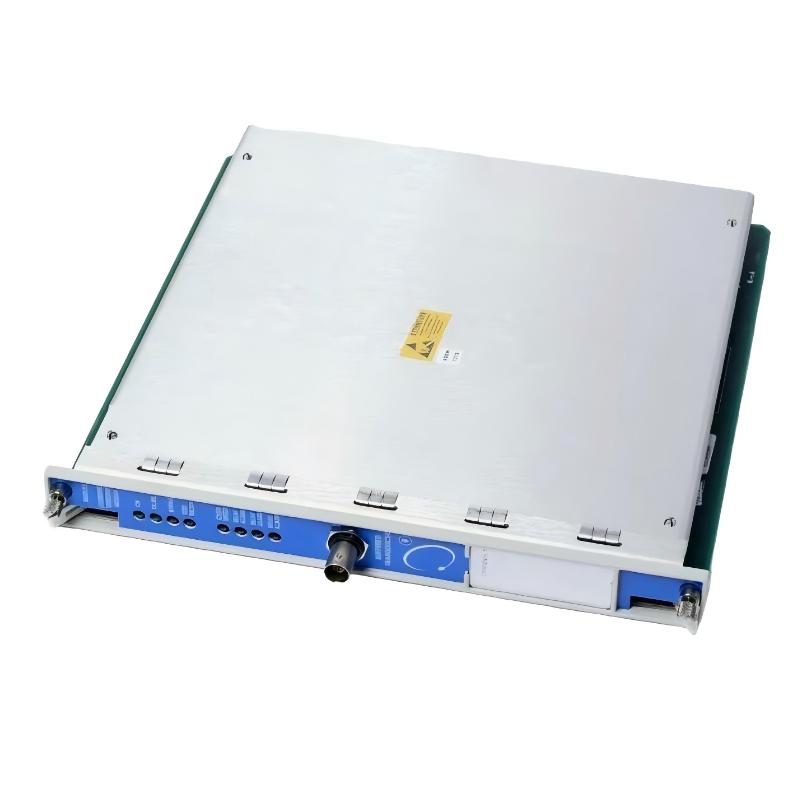

Bently Nevada 3500/33-01-CN 16-channel Relay Module

Applications

• Used in turbine protection systems to trigger alarms and shutdown actions based on vibration or displacement thresholds

• Applied in gas compressor control systems to execute safety interlocks during surge, overspeed, or imbalance conditions

• Used in hydro turbine monitoring setups to activate protection logic during abnormal hydraulic or mechanical behavior

• Integrated into power plant safety systems for multi-channel alarm output and equipment trip control

• Used in industrial machinery protection systems where multiple relay outputs are required for coordinated shutdown sequences

Key Advantages

• 16 independent relay channels support flexible alarm and trip logic configuration across multiple machine parameters

• Designed for direct integration with Bently Nevada 3500 monitoring rack systems

• Fast response relay switching improves protection reaction time during abnormal operating conditions

• Stable industrial-grade design ensures reliable operation in continuous monitoring environments

• Reduces need for external relay panels by consolidating protection outputs into one module

• Supports structured machine protection strategies across complex rotating equipment systems

Technical FAQs

Q1: What is the main function of this module?
It provides relay outputs for alarm, warning, and shutdown signals in machinery protection systems.

Q2: How many channels does it support?
It supports 16 independent relay channels.

Q3: What systems is it compatible with?
It is designed for the Bently Nevada 3500 monitoring system.

Q4: Can it be used for emergency shutdown systems?
Yes, it is commonly used for trip and protection logic output.

Q5: Is it suitable for continuous industrial operation?
Yes, it is built for 24/7 monitoring environments.

Q6: Does it require external programming?
It is configured through the 3500 system software and rack configuration.

Q7: Can it replace external relay panels?
In many cases, yes, it reduces the need for external relay hardware.

Q8: What types of signals does it handle?
It handles alarm, warning, and shutdown relay outputs.

Q9: Is it resistant to electrical noise?
Yes, it is designed for industrial environments with strong EMI protection.

Q10: Where is it typically installed?
Inside Bently Nevada 3500 system racks.
