Brand:Bently Nevada PLC Item No.:991-25-50-03-05 Product Origin:USA Product Dimensions:100.1 x 73.9 x 53.3 mm Product Weight:0.43 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

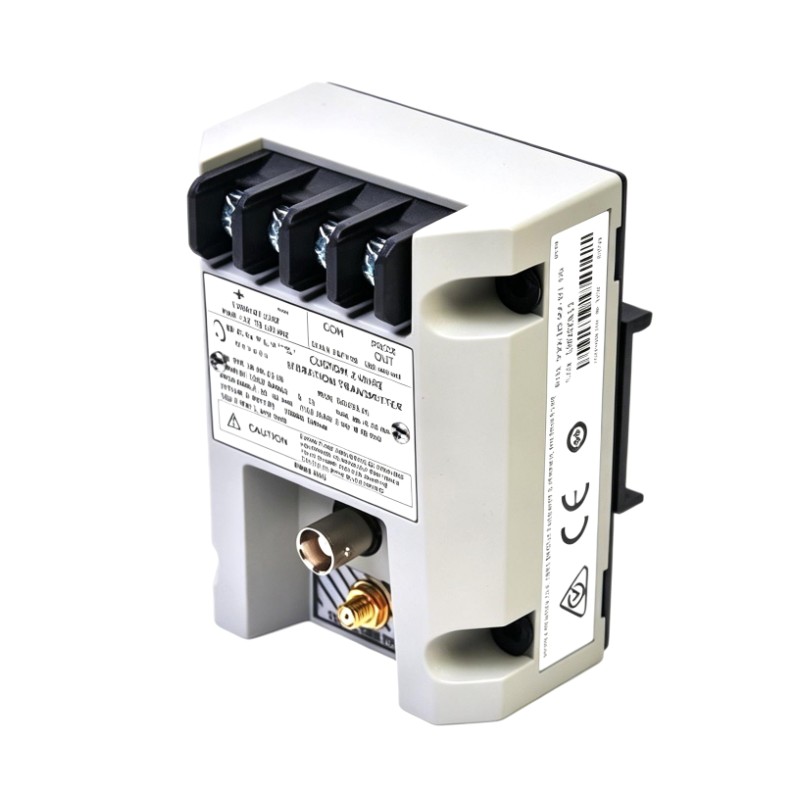

The Bently Nevada 991-25-50-03-05 Thrust Sensor is a compact transmitter designed to convert axial shaft movement into a standard industrial signal.
It is mainly used in simpler machinery protection systems where operators need reliable thrust indication without the complexity of full monitoring racks. In real applications, it is common in compressors and pump packages where space, cost, and wiring simplicity matter.
Technical Specifications
Item
Specification
Product Type
991 Thrust Transmitter
System Compatibility
Bently Nevada 3300 NSv probe system
Function
Axial thrust (displacement) measurement
Output Signal
4–20 mA
Input Type
Proximity probe based input
Mounting
Panel / DIN rail
Application
Pumps, compressors, motors, fans
Dimensions
100.1 × 73.9 × 53.3 mm
Weight
0.43 kg
Recommended Related Models
Model
Product Name
991-06-XX-01-05
991 Thrust Sensor Variant
991-01-XX-01-05
991 Thrust Transmitter
330180-X1-00
3300 XL Preamplifier Sensor
330104-02-24-10-01-00
3300 XL 8 mm Proximity Probe
Popular Related Models
Model
Product Name
330105-20-12-10-02-00
3300 XL Reverse Mount Probe
330106-05-30-10-02-CN
3300 XL Reverse Mount Probe
330130-080-10-CN
3300 XL Extension Cable 8 m
3300/16-01-01-00
3300 Series Monitoring Module
Applications
• Used on centrifugal compressors to monitor axial thrust position and prevent rotor contact during load changes
• Applied in pumps and small rotating equipment where axial displacement needs to be converted into a 4–20 mA signal
• Used in motors and fan systems for basic thrust indication in OEM control and protection packages
• Integrated into packaged machinery skids where simplified thrust monitoring is preferred over full diagnostic systems
• Used in industrial systems where compact installation and direct control-system input are required
Key Advantages
• Converts axial shaft movement directly into a 4–20 mA output for easy PLC or DCS integration
• Designed for use with 3300 NSv proximity probe systems for stable measurement input
• Loop-powered design reduces wiring complexity and simplifies field installation
• Compact transmitter structure fits well in OEM panels and skid-mounted equipment
• Stable signal conditioning helps reduce noise influence in industrial environments
• Suitable for continuous monitoring of thrust position in rotating machinery
Technical FAQs
Q1: What is the main function of this device?
It converts shaft axial displacement (thrust) into a standard 4–20 mA signal.
Q2: What probe system does it work with?
It is used with Bently Nevada 3300 NSv proximity probes and matching cables.
Q3: Is it a standalone sensor?
No, it requires an external proximity probe input.
Q4: Where is it typically used?
On compressors, pumps, motors, and fan systems.
Q5: Does it output vibration signals?
No, it outputs axial thrust position only.
Q6: Is it suitable for OEM systems?
Yes, it is widely used in OEM machinery packages.
Q7: Does it require external power?
It is loop-powered (2-wire 4–20 mA configuration).
Q8: Can it be used for protection logic?
Yes, it is commonly used as an input for control and shutdown logic.
Q9: Does it require calibration after replacement?
Normally no field calibration is required if installed correctly.
Q10: What is its main limitation?
It provides basic thrust monitoring, not advanced vibration diagnostics.
