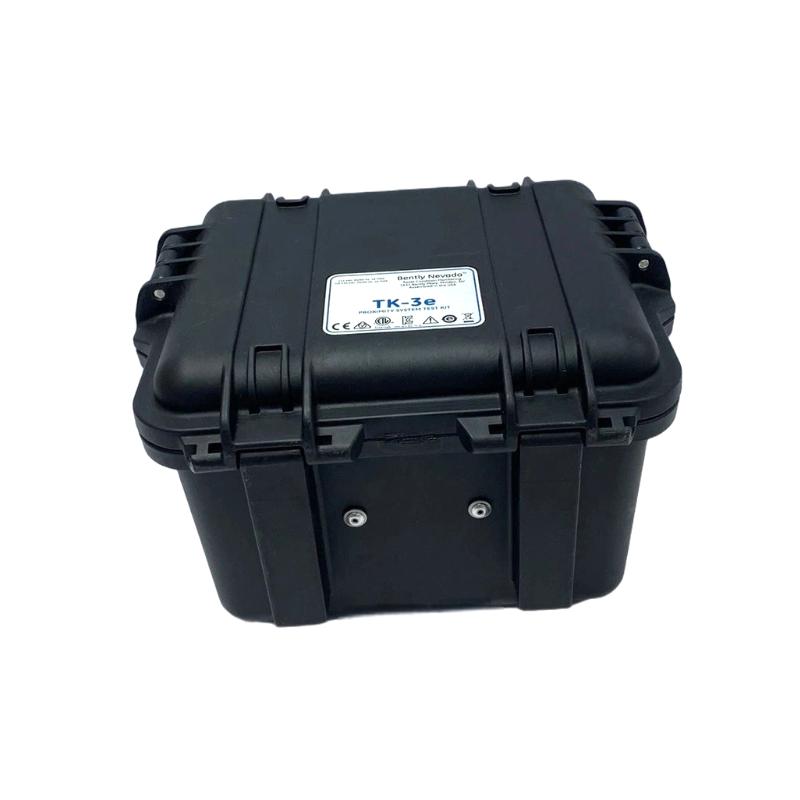

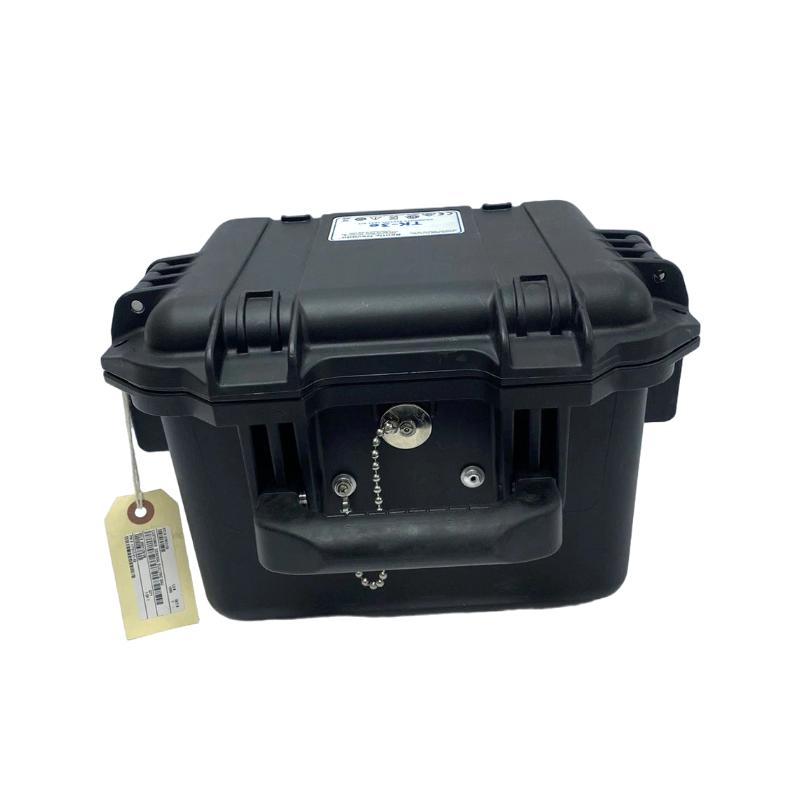

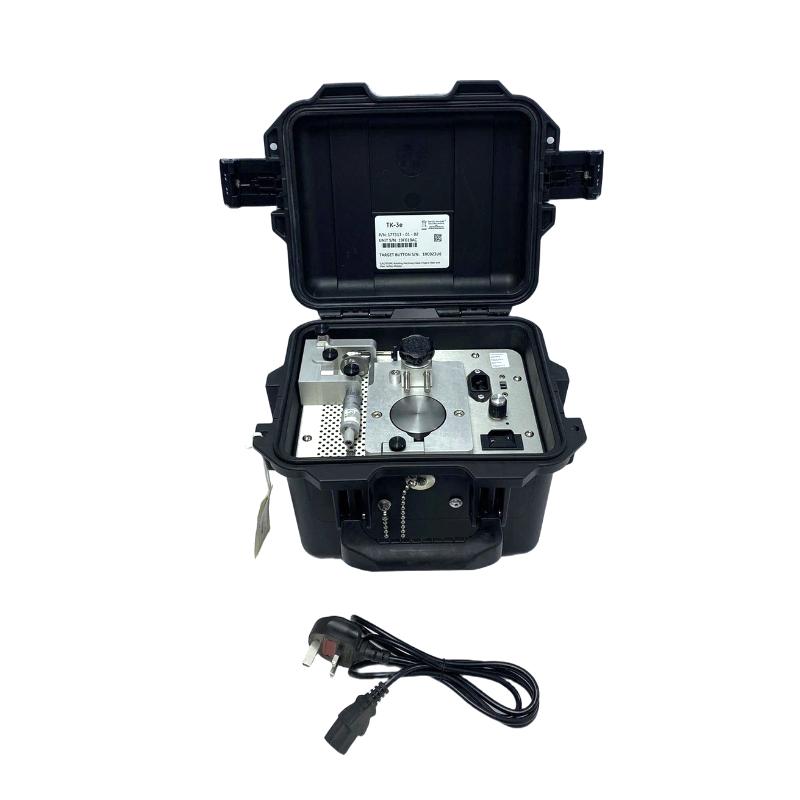

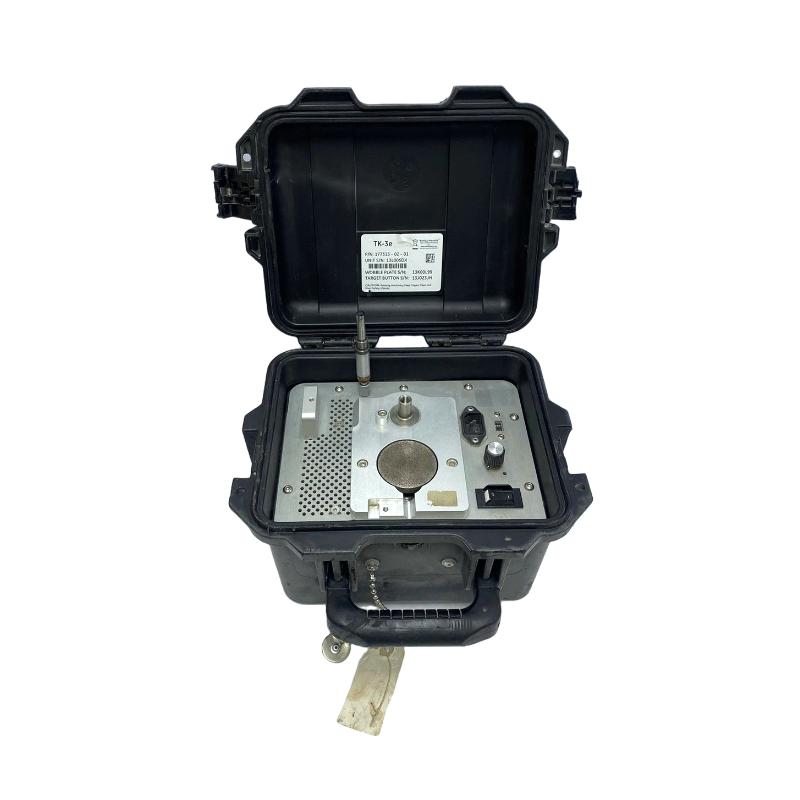

Bently Nevada TK-3E 177313-02-02-00 TK3 Proximity System Test Kit

Applications

• Used in turbine maintenance workshops to verify proximity probe and monitoring loop performance before startup

• Applied in compressor overhaul and commissioning work to confirm sensor response and signal stability

• Used in power plants for calibration checks of vibration monitoring channels in 3300 and 3500 systems

• Installed in OEM and service test benches for validating probe, cable, and monitor signal integrity

• Used in predictive maintenance programs to isolate faults in proximity measurement chains

Key Advantages

• Provides full-system verification including probe, extension cable, and monitoring input

• Electric-driven wobble plate design enables controlled and repeatable vibration simulation

• Built-in spindle micrometer allows precise gap adjustment for calibration accuracy checks

• Portable structure supports both field maintenance and workshop testing environments

• Reduces troubleshooting time by clearly separating probe, wiring, and monitor faults

• Improves confidence in system readiness before machine startup or return to service

Technical FAQs

Q1: What is the main function of the TK-3E test kit?
It simulates vibration and gap conditions to verify proximity measurement systems.

Q2: Does it test only the probe?
No, it verifies the full measurement loop including probe, cable, and monitor.

Q3: Is it used in field maintenance?
Yes, it is commonly used during shutdowns and commissioning work.

Q4: What systems is it compatible with?
It supports Bently Nevada 3300 and 3500 series monitoring systems.

Q5: Does it generate real vibration signals?
Yes, it uses a wobble plate to create controlled mechanical vibration.

Q6: Is it electrically powered?
Yes, it operates using AC power input for the drive system.

Q7: Can it help locate system faults?
Yes, it helps identify whether issues are in the probe, cable, or monitor.

Q8: Does it require software configuration?
No, it operates as a standalone mechanical/electrical test device.

Q9: Is it suitable for training use?
Yes, it is often used for technician training and system familiarization.

Q10: What is the main benefit in practice?
It provides a fast and reliable way to confirm system health before operation.
