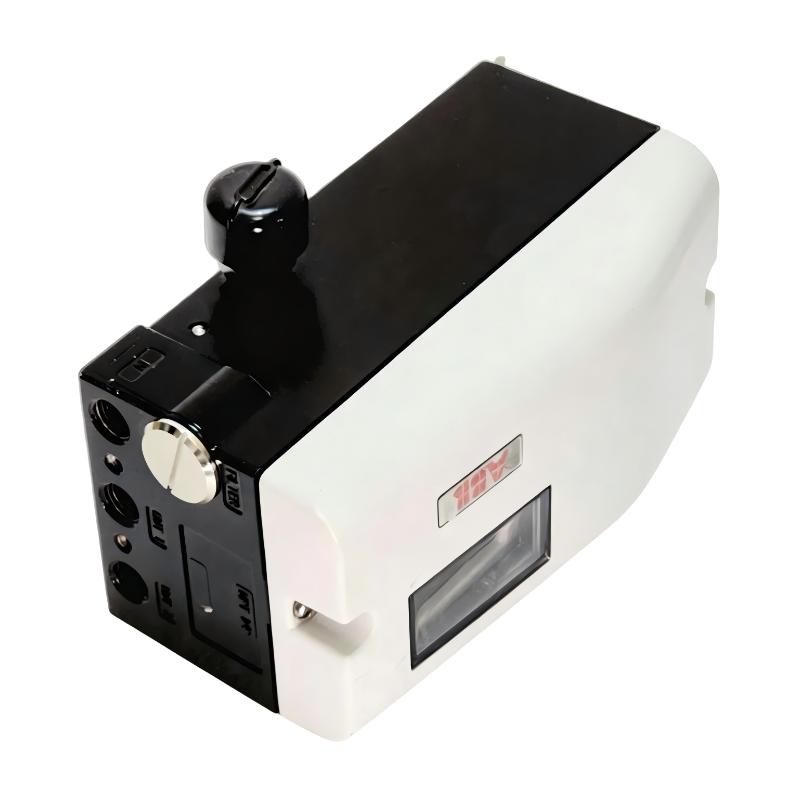

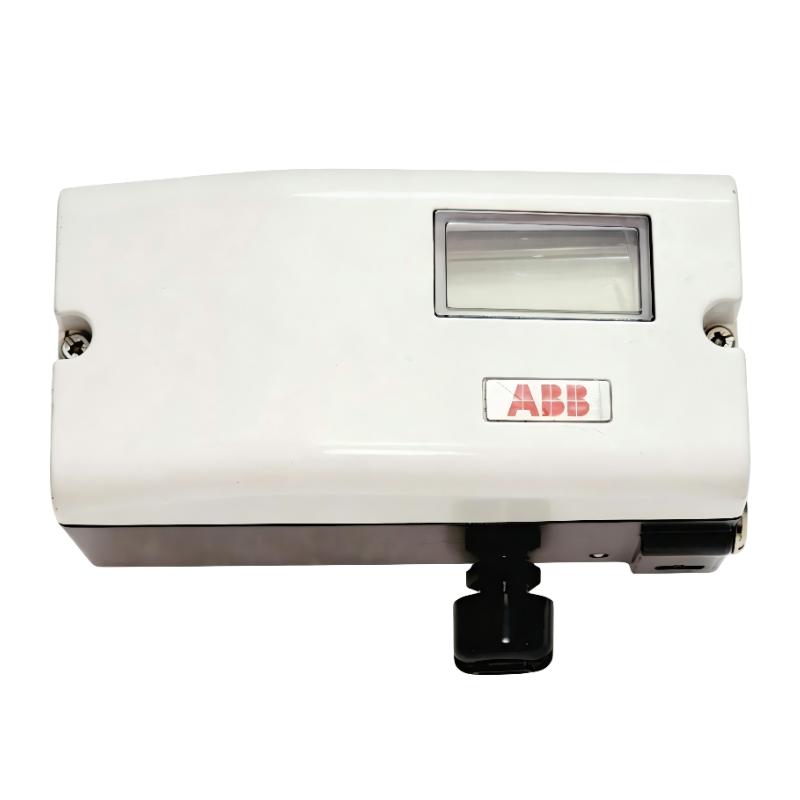

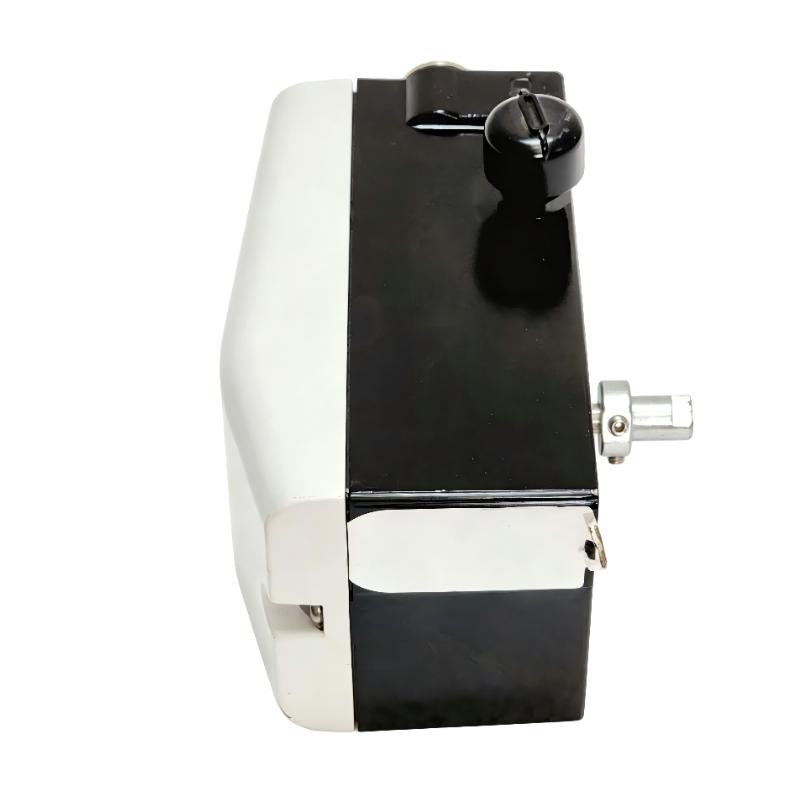

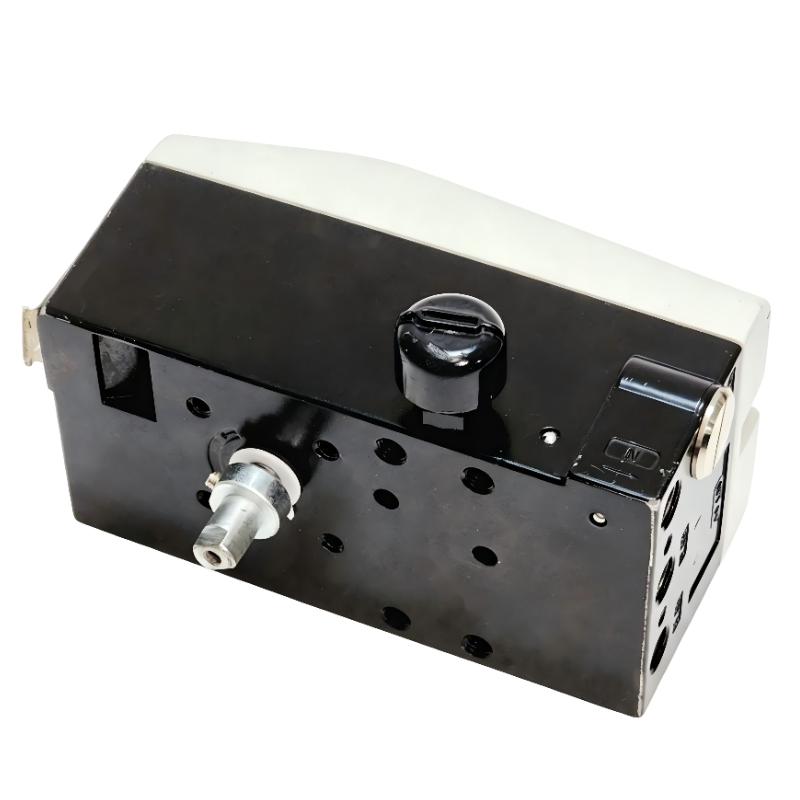

ABB V18345-1020521001 Valve Positioner

Applications

• Designed for precise valve positioning in chemical processing, petrochemical, and refining facilities.

• Ideal for oil and gas production systems requiring accurate control of flow, pressure, and process media.

• Suitable for power generation plants controlling steam, condensate, and cooling water valves.

• Used in water and wastewater treatment facilities for stable valve modulation and process optimization.

• Applicable to pharmaceutical, food, and beverage industries where reliable and repeatable valve control is essential.

Key Advantages

• Intelligent electro-pneumatic control delivers fast and accurate valve positioning.

• High positioning accuracy minimizes process deviation and improves control stability.

• Supports standard 4–20 mA input signals for seamless integration with PLC and DCS platforms.

• Automatic commissioning and self-calibration reduce installation time and simplify setup.

• Built-in diagnostic functions help improve maintenance efficiency and reduce unexpected downtime.

• Compatible with both linear and rotary pneumatic actuators for flexible application requirements.

Technical FAQs

Q1: What type of input signal does this positioner require?
It operates with a standard 4–20 mA analog control signal.

Q2: Is this model compatible with pneumatic actuators?
Yes, it is designed for both single-acting and double-acting pneumatic actuators, depending on the configuration.

Q3: Can it be installed on both linear and rotary actuators?
Yes, it supports installation on linear actuators compliant with IEC 534/NAMUR standards and rotary actuators according to VDI/VDE 3845.

Q4: Does it support HART communication?
Yes, HART communication is available on compatible configurations for configuration and diagnostics.

Q5: Does the positioner include automatic calibration?
Yes, automatic initialization and self-adjustment simplify commissioning and optimize control performance.

Q6: Can it provide valve position feedback?
Depending on the configuration, analog position feedback is available for continuous valve monitoring.

Q7: What protection features are included?
The unit incorporates intelligent diagnostics, fault monitoring, and fail-safe operating functions to enhance system reliability.

Q8: Is it suitable for continuous industrial operation?
Yes, it is engineered for continuous-duty operation in demanding industrial process environments.

Q9: Can it be integrated into existing automation systems?
Yes, it integrates easily with modern PLC and DCS-based process control systems.

Q10: Does the device require frequent maintenance?
No, its intelligent diagnostics and robust construction help minimize routine maintenance requirements.
