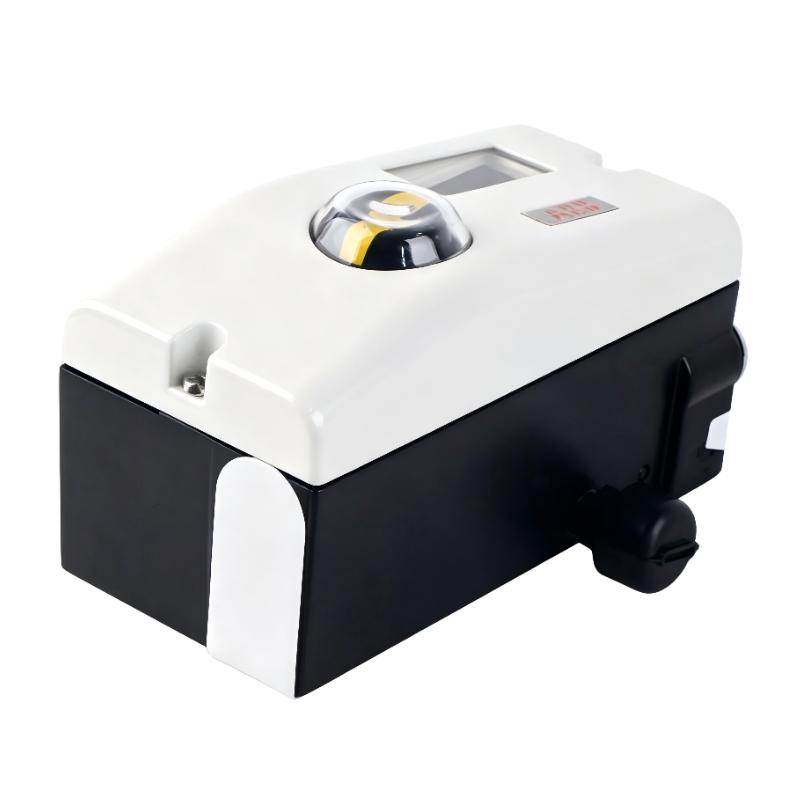

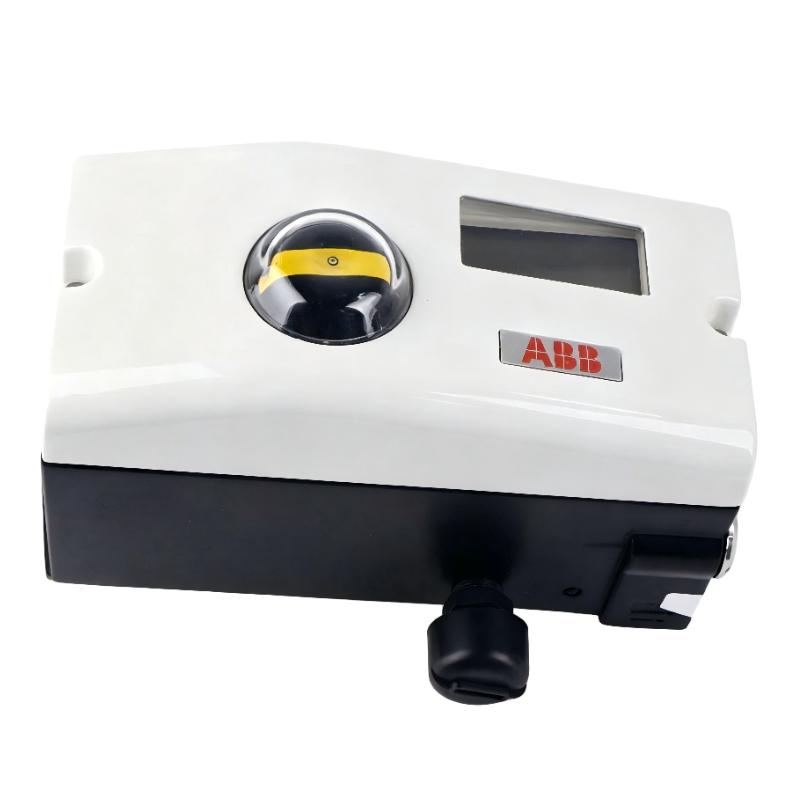

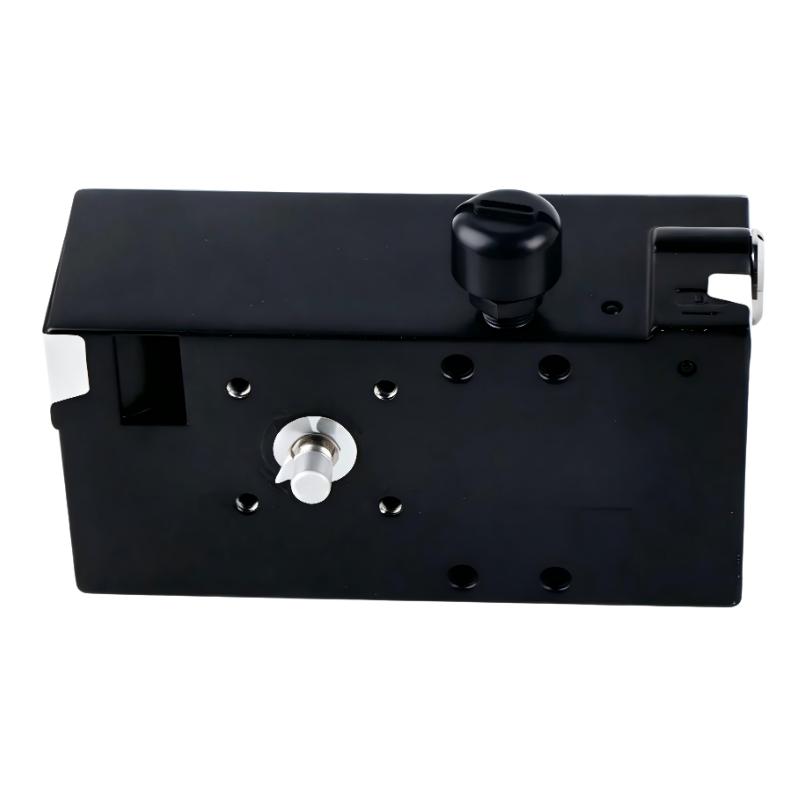

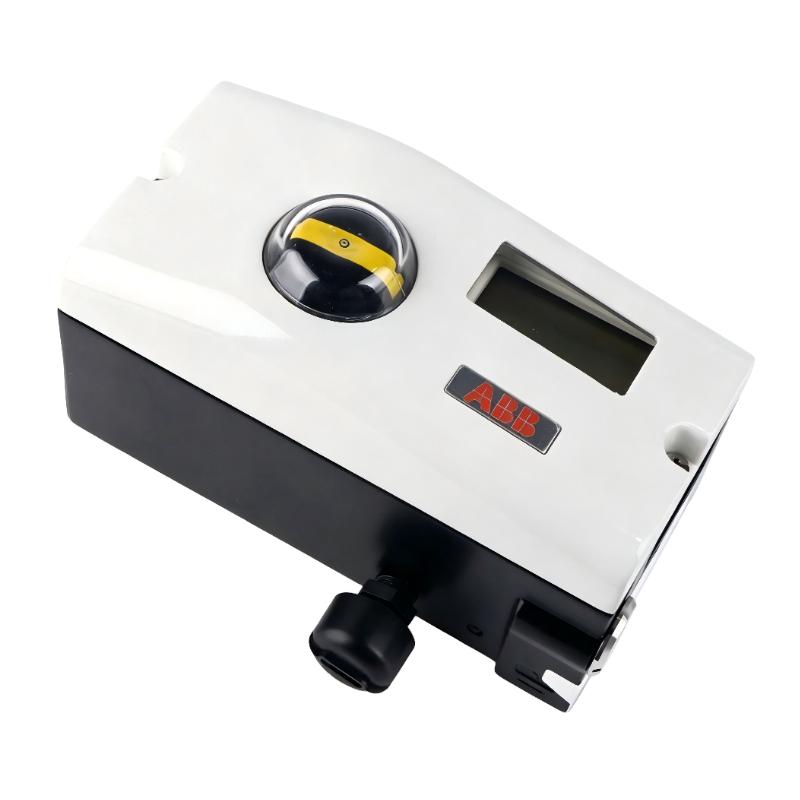

ABB V18345-1021120001 Valve Positioner

Applications

• Designed for precise valve positioning in chemical processing, petrochemical, and refinery applications.

• Suitable for oil and gas production systems requiring accurate regulation of flow, pressure, and process media.

• Used in power generation facilities to control steam, condensate, and cooling water valves.

• Ideal for water and wastewater treatment plants requiring reliable valve modulation and stable process control.

• Applicable to pharmaceutical, food, and beverage industries where accurate valve positioning is essential.

Key Advantages

• Intelligent electro-pneumatic control provides fast response and high positioning accuracy.

• Advanced digital control technology minimizes hysteresis and improves process stability.

• Standard 4–20 mA input allows seamless integration with PLC, DCS, and distributed control systems.

• Automatic initialization and self-calibration simplify commissioning and reduce setup time.

• Integrated diagnostic capabilities support predictive maintenance and improve equipment availability.

• Compatible with both linear and rotary pneumatic actuators for versatile industrial applications.

Technical FAQs

Q1: What input signal does this valve positioner accept?
It operates with a standard 4–20 mA analog control signal.

Q2: Is this model suitable for pneumatic actuators?
Yes, it is designed for both single-acting and double-acting pneumatic actuators, depending on the configuration.

Q3: Can it be mounted on different actuator types?
Yes, it supports both linear and rotary actuators using standard industrial mounting interfaces.

Q4: Does this model support HART communication?
Compatible configurations support HART communication for parameter configuration and diagnostics.

Q5: Does it include automatic calibration?
Yes, automatic initialization and self-adjustment simplify installation and improve positioning accuracy.

Q6: Can it provide valve position feedback?
Depending on the configuration, optional analog position feedback is available.

Q7: What diagnostic functions are included?
It provides continuous monitoring of actuator performance, valve travel, and operating status to assist maintenance.

Q8: Is it suitable for continuous process control?
Yes, it is designed for continuous-duty operation in demanding industrial environments.

Q9: Can it be integrated into existing automation systems?
Yes, it integrates easily with PLC and DCS platforms using standard industrial control signals.

Q10: Does it require frequent maintenance?
No, its intelligent diagnostics and robust construction help minimize routine maintenance requirements.
