Brand:Schneider PLC Item No.:ATS01N112FT Product Origin:France Product Dimensions:124 x 45 x 131 mm Product Weight:0.28 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

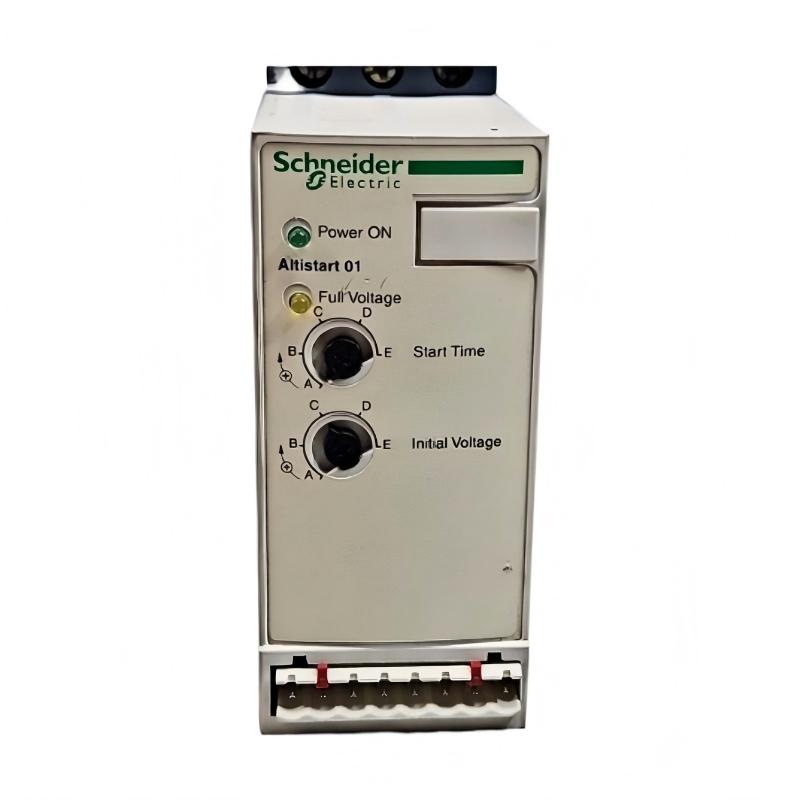

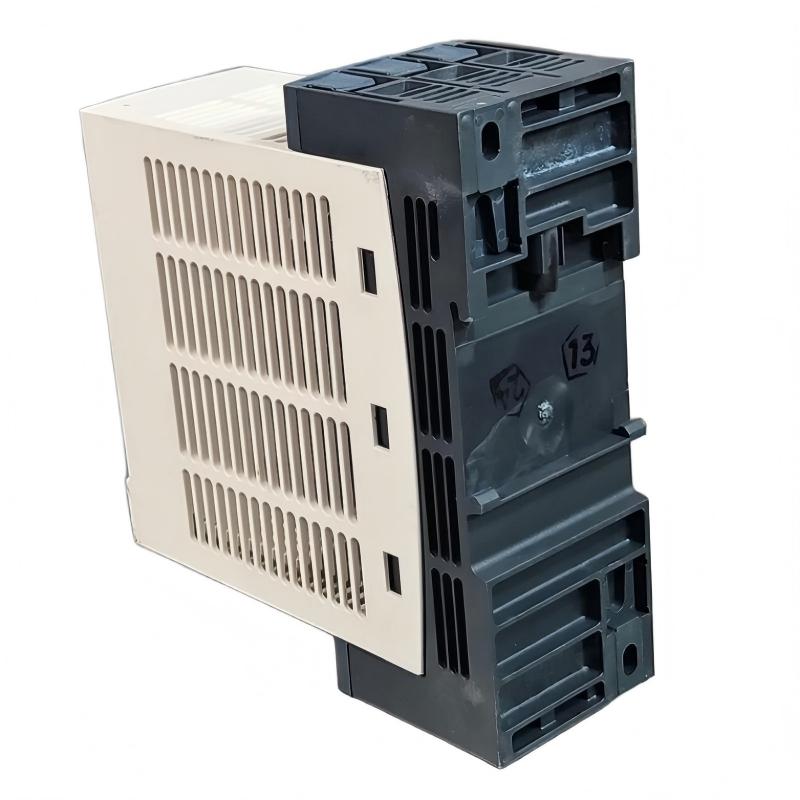

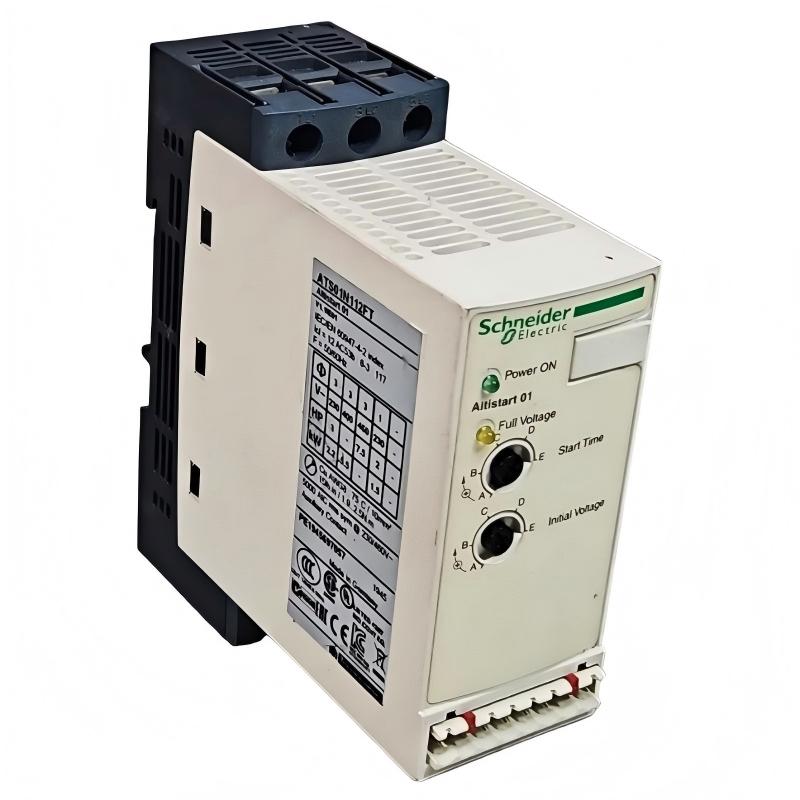

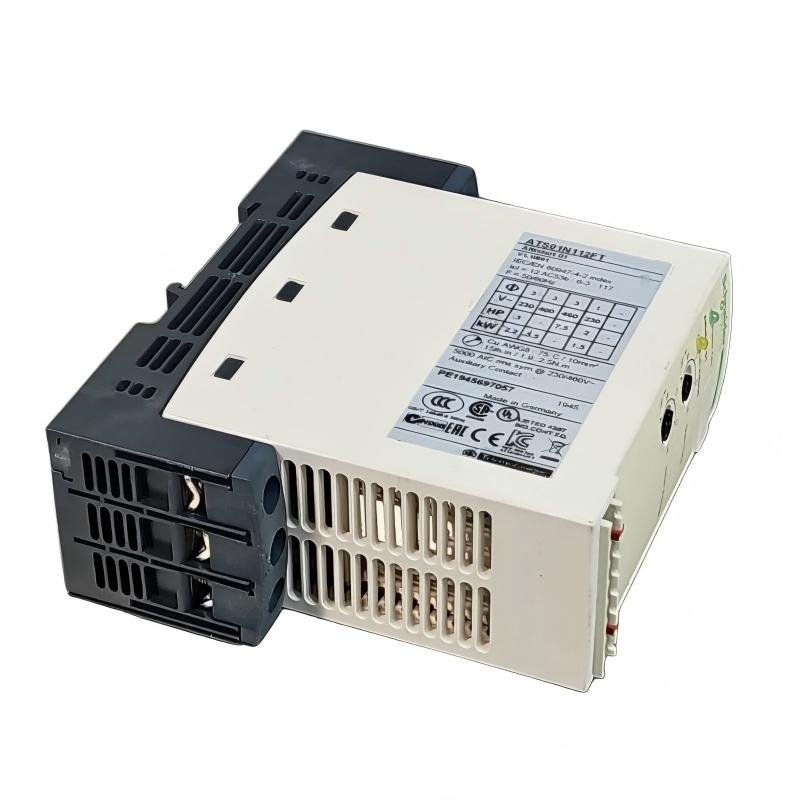

The Schneider ATS01N112FT is part of a compact soft starter range designed for basic motor control. It provides controlled voltage ramping during motor startup to reduce inrush current and mechanical impact on connected equipment.
It is widely used in industrial systems where simple and reliable motor starting control is required without variable speed functionality.
Technical Specifications
Parameter
Specification
Product Type
Soft Starter
Series
Altistart 01
Model
ATS01N112FT
Rated Current
12 A
Supply Voltage
110–480 VAC
Motor Type
AC induction motor
Control Method
Voltage ramp start
Dimensions (W × H × D)
124 × 45 × 131 mm
Weight
0.28 kg / 0.62 lb
Mounting Type
DIN rail mounting
Protection Level
IP20
Installation Orientation
Vertical mounting
Recommended Related Models
Schneider ATS01N106FT Soft Starter
Schneider ATS01N212FT Soft Starter
Schneider Altivar ATV12 Series Drives
Siemens 3RW30 Soft Starters
ABB PSR Series Soft Starters
Popular Related Models
Schneider ATS22 Series Soft Starters
Siemens 3RW40 Series Soft Starters
ABB PSTX Series Soft Starters
Danfoss MCD 201 Soft Starter
Rockwell SMC-3 Series
Applications
The ATS01N112FT is used in standard industrial motor control applications where smooth starting is required.
Typical applications include:
HVAC ventilation systems
Water pump control systems
Small compressor systems
Conveyor equipment
Light industrial automation machines
Material handling systems
General-purpose motor starter panels
It is suitable for installations requiring compact and simple motor control functionality.
Advantages
Reduces motor starting current
Minimizes mechanical stress during startup
Compact design for control cabinet integration
Stable motor starting performance
Simple configuration and operation
Suitable for repetitive start cycles
Improves motor system lifespan
Technical FAQs
Q1: What is the function of this device?
It controls motor starting by gradually increasing voltage.
Q2: Does it provide speed control?
No, it is only used for motor starting and stopping.
Q3: What type of motor is supported?
AC induction motors.
Q4: What is the benefit of using a soft starter?
It reduces electrical and mechanical stress during motor start.
Q5: Can it be used in continuous operation?
Yes, after starting, the motor operates normally.
Q6: Is it suitable for heavy industrial loads?
It is intended for light to medium duty applications.
Q7: Does it require complex setup?
No, it is designed for simple commissioning.
Q8: What happens during overload?
The device will stop operation to protect the system.
Q9: Is it suitable for frequent starts?
Yes, it supports repeated start cycles.
Q10: Does it require external bypass?
No, it includes internal bypass functionality.
