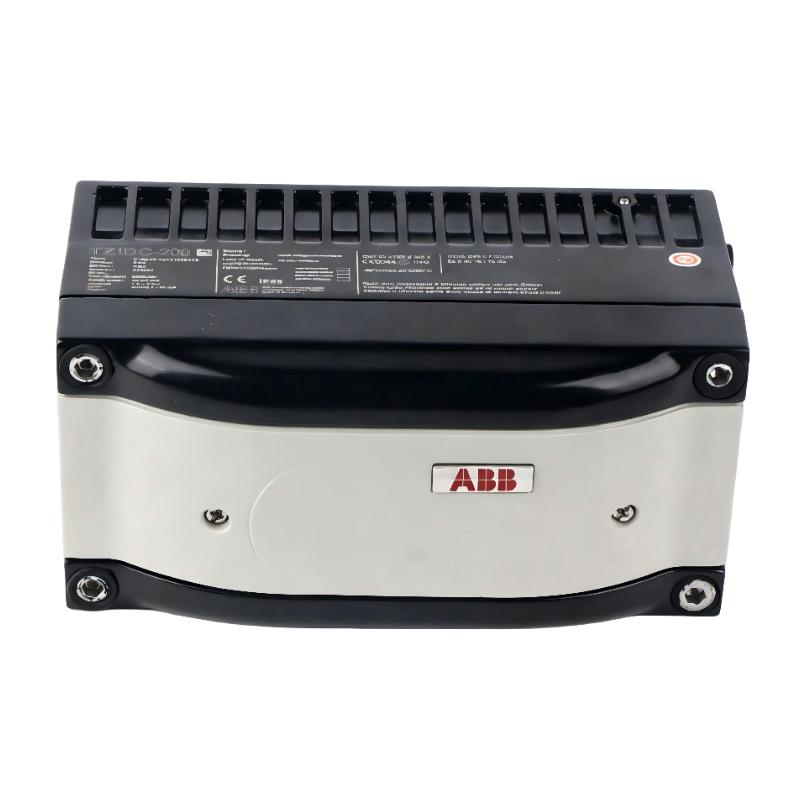

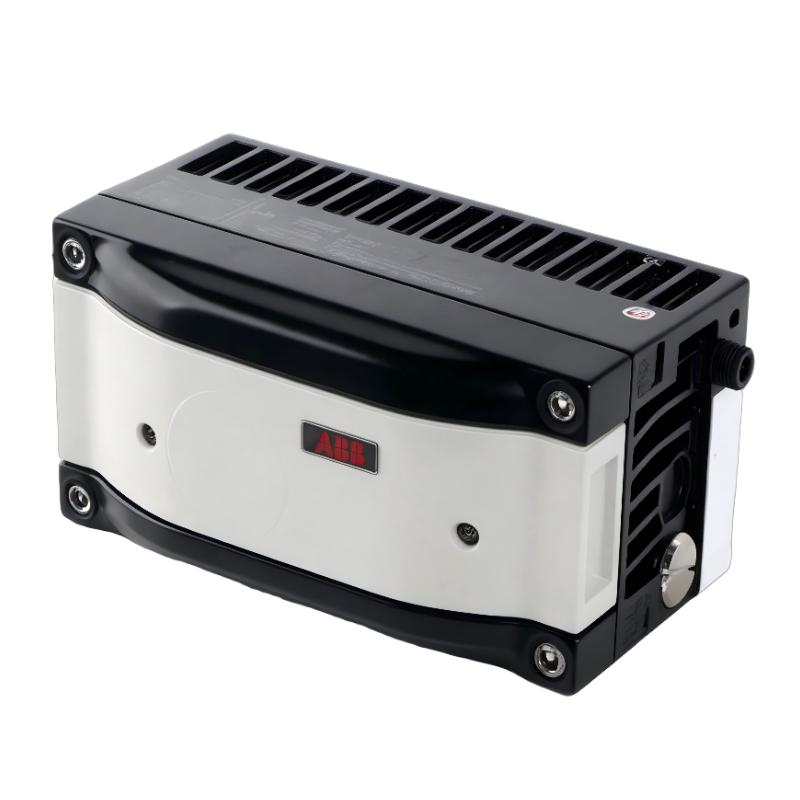

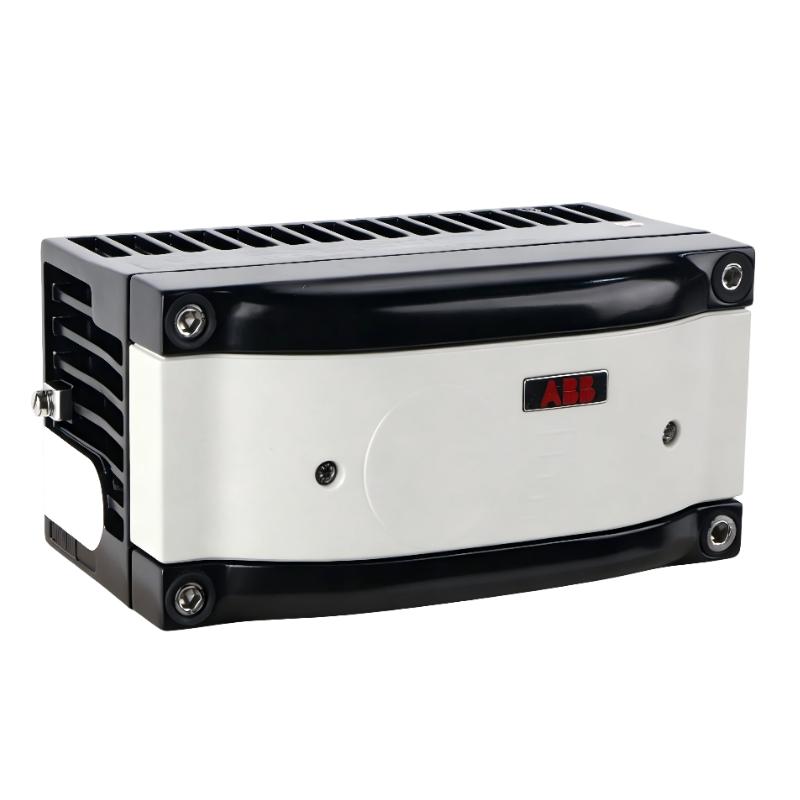

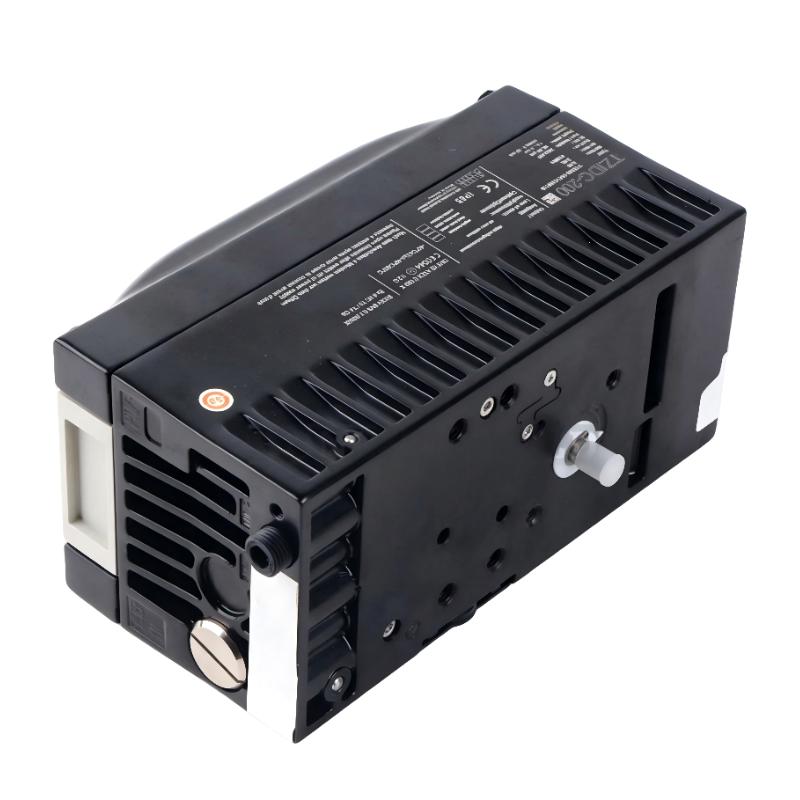

ABB V18348-10111310110 TZIDC-200 Digital Positioner

Applications

• Designed for accurate valve positioning in chemical, petrochemical, and refinery process control systems.

• Ideal for oil and gas production facilities operating in hazardous environments requiring explosion-proof equipment.

• Suitable for power generation plants controlling steam, condensate, and cooling water valves.

• Used in water and wastewater treatment plants for stable flow and pressure regulation.

• Applicable to pharmaceutical, pulp and paper, and food processing industries requiring reliable digital valve control.

Key Advantages

• Intelligent digital positioning technology delivers fast response and exceptional control accuracy.

• Flameproof enclosure enables dependable operation in hazardous industrial environments.

• HART communication supports efficient device configuration, diagnostics, and maintenance.

• Automatic commissioning and adaptive control simplify installation while optimizing valve performance.

• Integrated diagnostic functions help reduce maintenance costs and improve system availability.

• Compatible with both linear and rotary pneumatic actuators for flexible application deployment.

Technical FAQs

Q1: What communication protocol does the TZIDC-200 support?
It supports HART communication for configuration, diagnostics, and device management.

Q2: Is this model designed for hazardous areas?
Yes, it features a flameproof enclosure suitable for hazardous industrial environments.

Q3: Which actuator types are supported?
It is compatible with both linear and rotary pneumatic actuators.

Q4: Does the positioner support automatic calibration?
Yes, automatic initialization and self-calibration simplify commissioning and improve positioning accuracy.

Q5: Can it provide analog position feedback?
Yes, this configuration includes support for analog position feedback depending on the installed option module.

Q6: Does it include diagnostic capabilities?
Yes, integrated diagnostics continuously monitor valve travel, actuator performance, and operating status.

Q7: Can it be integrated into PLC and DCS systems?
Yes, it integrates easily using standard 4–20 mA control signals with HART communication.

Q8: Is it suitable for continuous-duty industrial applications?
Yes, it is engineered for reliable long-term operation in demanding process automation systems.

Q9: What is the benefit of adaptive control?
Adaptive control automatically optimizes valve movement for improved accuracy and process stability.

Q10: Does it require frequent maintenance?
No, intelligent diagnostics and automatic calibration help minimize routine maintenance.
