Brand:Schneider PLC Item No.:ATS01N125FT Product Origin:France Product Dimensions:124 x 45 x 131 mm Product Weight:0.35 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

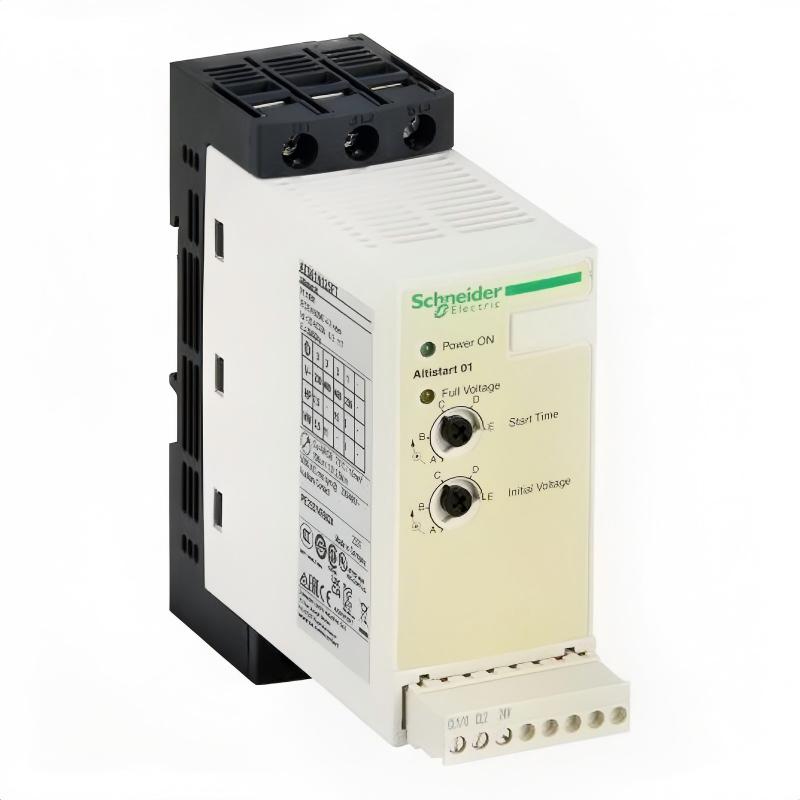

The Schneider Electric ATS01N125FT belongs to the Altistart 01 series of compact soft starters. It operates by gradually increasing voltage supplied to an AC induction motor, enabling smooth acceleration instead of direct full-voltage starting.
This helps reduce mechanical wear on driven equipment and minimizes electrical stress on the supply system, making it suitable for standard industrial motor control applications requiring simple and reliable starting control.
Technical Specifications
Parameter
Specification
Product Type
Soft Starter
Series
Altistart 01
Model
ATS01N125FT
Rated Current
25 A
Supply Voltage
110–480 VAC
Motor Type
AC induction motor
Control Method
Voltage ramp start
Dimensions (W × H × D)
124 × 45 × 131 mm
Weight
0.35 kg / 0.77 lb
Mounting Type
DIN rail mounting
Protection Degree
IP20
Installation Orientation
Vertical installation
Recommended Related Models
Schneider ATS01N112FT Soft Starter
Schneider ATS01N106FT Soft Starter
Schneider ATS01N212FT Soft Starter
Siemens 3RW30 Series Soft Starters
ABB PSR Series Soft Starters
Popular Related Models
Schneider ATS22 Series Soft Starters
Siemens 3RW40 Series Soft Starters
ABB PSTX Series Soft Starters
Danfoss MCD 201 Soft Starter
Rockwell SMC-3 Series
Applications
The ATS01N125FT is used in general-purpose motor control applications where smooth starting is required.
Typical applications include:
HVAC ventilation and air handling systems
Water pumping and circulation systems
Small compressor units
Conveyor and material handling equipment
Packaging and light automation machinery
Industrial auxiliary motor drives
Irrigation and fluid transfer systems
It is suitable for compact control panel integration in OEM and industrial installations.
Advantages
Reduces motor inrush current during startup
Minimizes mechanical shock on driven equipment
Compact 45 mm design for dense panel layouts
Stable and repeatable starting performance
Integrated bypass for efficient operation after ramp-up
Simple configuration and commissioning
Suitable for repetitive start cycles
Improves overall motor system reliability
Technical FAQs
Q1: What is the function of this device?
It provides controlled voltage ramping to start AC motors smoothly.
Q2: Does it control motor speed?
No, it only controls starting and stopping behavior.
Q3: What type of motor is compatible?
Three-phase AC induction motors.
Q4: What is the benefit over direct starting?
It reduces electrical surge and mechanical stress during startup.
Q5: Does it include bypass operation?
Yes, it uses an internal bypass after acceleration.
Q6: Is it suitable for heavy-load starting?
It is designed for light to medium duty applications.
Q7: Does it require complex setup?
No, it is designed for simple commissioning.
Q8: What happens if overload occurs?
The device will trigger protection and stop operation.
Q9: Can it be used for frequent starts?
Yes, it supports repeated start-stop cycles.
Q10: Is it a variable speed drive?
No, it is not a VFD and does not provide speed control.
