Brand:Schneider PLC Item No.:ATS01N206RT Product Origin:France Product Dimensions:124 x 45 x 131 mm Product Weight:0.42 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

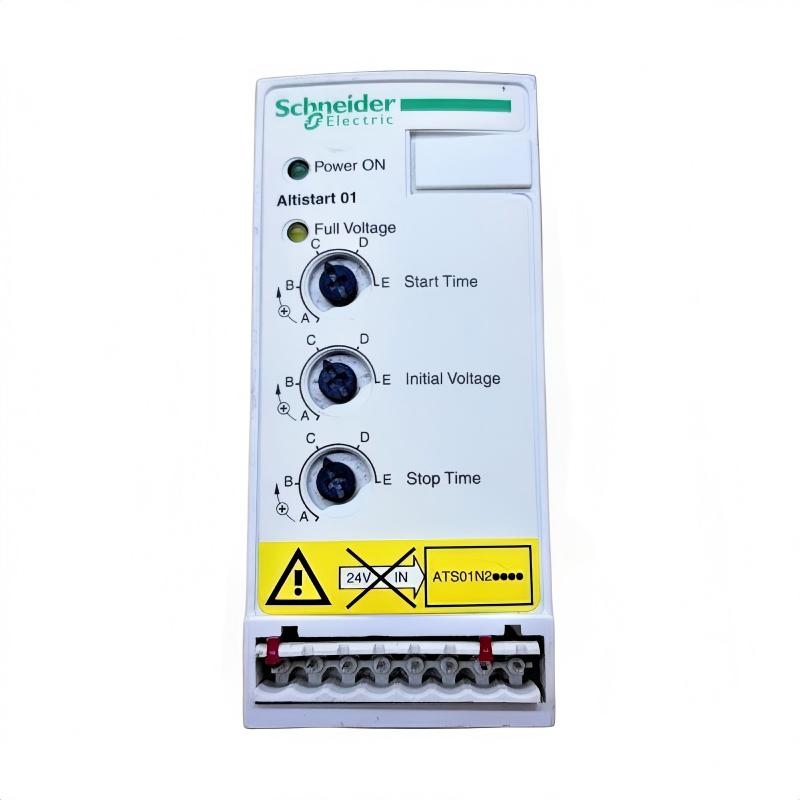

The Schneider Electric ATS01N206RT belongs to the Altistart 01 soft starter family. It works by gradually increasing the voltage supplied to an AC induction motor, allowing controlled acceleration instead of direct full-voltage starting.
This reduces mechanical wear on driven equipment and limits electrical stress on power systems, making it suitable for standard industrial motor control applications where simple and reliable starting performance is required.
Technical Specifications
Parameter
Specification
Product Type
Soft Starter
Series
Altistart 01
Model
ATS01N206RT
Rated Current
6 A
Supply Voltage
460–480 VAC
Motor Type
AC induction motor
Control Method
Voltage ramp start
Dimensions (W × H × D)
124 × 45 × 131 mm
Weight
0.42 kg / 0.93 lb
Mounting Type
DIN rail mounting
Protection Degree
IP20
Installation Orientation
Vertical mounting
Recommended Related Models
Schneider ATS01N112FT Soft Starter
Schneider ATS01N125FT Soft Starter
Schneider ATS01N106FT Soft Starter
Siemens 3RW30 Series Soft Starters
ABB PSR Series Soft Starters
Popular Related Models
Schneider ATS22 Series Soft Starters
Siemens 3RW40 Series Soft Starters
ABB PSTX Series Soft Starters
Danfoss MCD 201 Soft Starter
Rockwell SMC-3 Series
Applications
The ATS01N206RT is used in general industrial motor control systems where smooth starting is required.
Typical applications include:
HVAC ventilation and air handling systems
Water pumping and circulation systems
Small compressors and air systems
Conveyor and material handling equipment
Packaging and light automation machinery
Industrial auxiliary motor drives
Fluid transfer and irrigation systems
It is suitable for compact control panel installations in OEM equipment and standard industrial machines.
Advantages
Reduces motor starting current and electrical stress
Minimizes mechanical shock during startup
Compact 45 mm width design for easy panel integration
Stable and repeatable soft-start behavior
Integrated bypass function after acceleration
Simple commissioning with minimal setup requirements
Suitable for repetitive start cycles
Improves motor and equipment service life
Technical FAQs
Q1: What is the main function of the ATS01N206RT?
It provides controlled voltage ramping to start AC motors smoothly.
Q2: Does it control motor speed during operation?
No, it only manages motor starting and stopping, not speed control.
Q3: What type of motor is compatible?
Three-phase AC induction motors.
Q4: What is the benefit compared to direct-on-line starting?
It reduces inrush current and mechanical stress on the system.
Q5: Does it include a bypass function?
Yes, it switches to internal bypass after the motor reaches full speed.
Q6: Is it suitable for heavy-load applications?
It is designed for light to medium duty motor loads.
Q7: Does it require complex programming?
No, it is designed for simple setup and commissioning.
Q8: What happens if overload occurs?
The device will trip to protect the motor and system.
Q9: Can it be used for frequent starts?
Yes, it supports repeated start-stop operation cycles.
Q10: Is it a variable frequency drive (VFD)?
No, it is not a VFD and does not control motor speed.
