Brand:Schneider PLC Item No.:ATS01N206QN Product Origin:France Product Dimensions:124 x 45 x 131 mm Product Weight:0.42 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

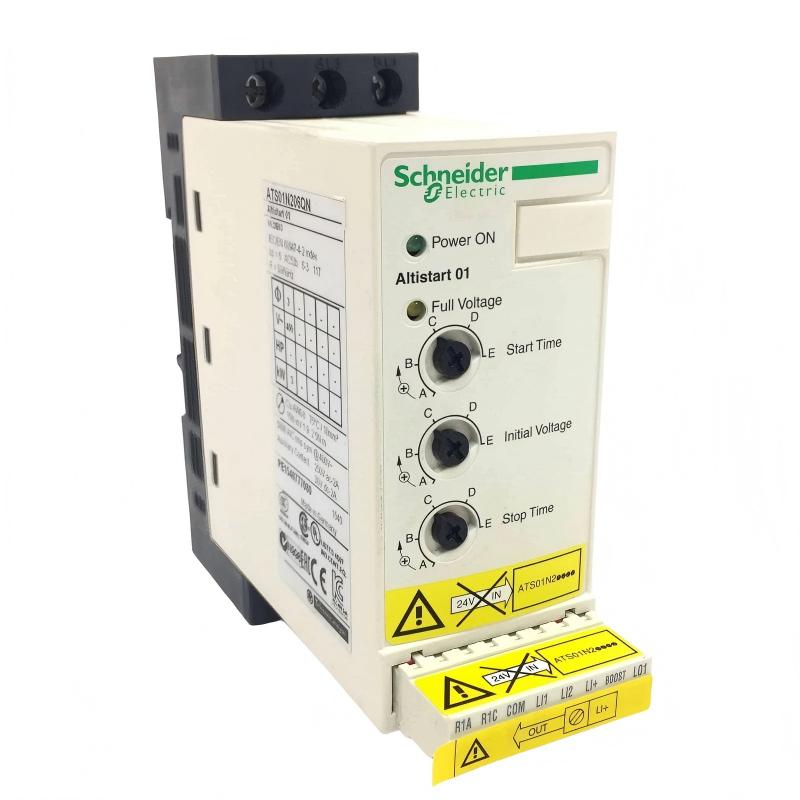

The Schneider Electric ATS01N206QN is part of the Altistart 01 soft starter family. It operates by gradually increasing voltage supplied to an AC induction motor, enabling smooth acceleration instead of direct full-voltage starting.
This reduces mechanical wear on driven equipment and limits electrical stress on the supply system, making it suitable for standard industrial motor control applications requiring simple and reliable starting control.
Technical Specifications
Parameter
Specification
Product Type
Soft Starter
Series
Altistart 01
Model
ATS01N206QN
Rated Current
6 A
Supply Voltage
380–415 VAC
Motor Type
AC induction motor
Control Method
Voltage ramp start
Dimensions (W × H × D)
124 × 45 × 131 mm
Weight
0.42 kg / 0.93 lb
Mounting Type
DIN rail mounting
Protection Degree
IP20
Installation Orientation
Vertical mounting
Recommended Related Models
Schneider ATS01N206RT Soft Starter
Schneider ATS01N112FT Soft Starter
Schneider ATS01N125FT Soft Starter
Siemens 3RW30 Series Soft Starters
ABB PSR Series Soft Starters
Popular Related Models
Schneider ATS22 Series Soft Starters
Siemens 3RW40 Series Soft Starters
ABB PSTX Series Soft Starters
Danfoss MCD 201 Soft Starter
Rockwell SMC-3 Series
Applications
The ATS01N206QN is used in general motor control systems where smooth starting is required without variable speed control.
Typical applications include:
HVAC ventilation systems
Water pumping and circulation systems
Small compressor units
Conveyor and material handling systems
Light industrial automation equipment
Packaging machinery
Auxiliary industrial motor drives
It is suitable for compact control panels and OEM machine integration.
Advantages
Reduces motor inrush current during startup
Minimizes mechanical shock on driven systems
Compact design for DIN rail installation
Stable and repeatable soft-start behavior
Integrated bypass function after acceleration
Simple configuration and commissioning
Suitable for frequent start cycles
Improves motor and system reliability
Technical FAQs
Q1: What is the function of this device?
It controls motor starting by gradually increasing voltage.
Q2: Does it control motor speed?
No, it is only used for starting and stopping.
Q3: What type of motor is compatible?
Three-phase AC induction motors.
Q4: What is the benefit compared to direct start?
It reduces electrical surge and mechanical stress during startup.
Q5: Does it include bypass operation?
Yes, it switches to internal bypass after motor reaches full speed.
Q6: Is it suitable for heavy loads?
It is intended for light to medium duty applications.
Q7: Does it require complex setup?
No, it is designed for simple commissioning.
Q8: What happens under overload?
The device will trigger protection and stop operation.
Q9: Is it suitable for frequent starts?
Yes, it supports repeated start-stop cycles.
Q10: Is it a variable frequency drive (VFD)?
No, it does not control speed.
