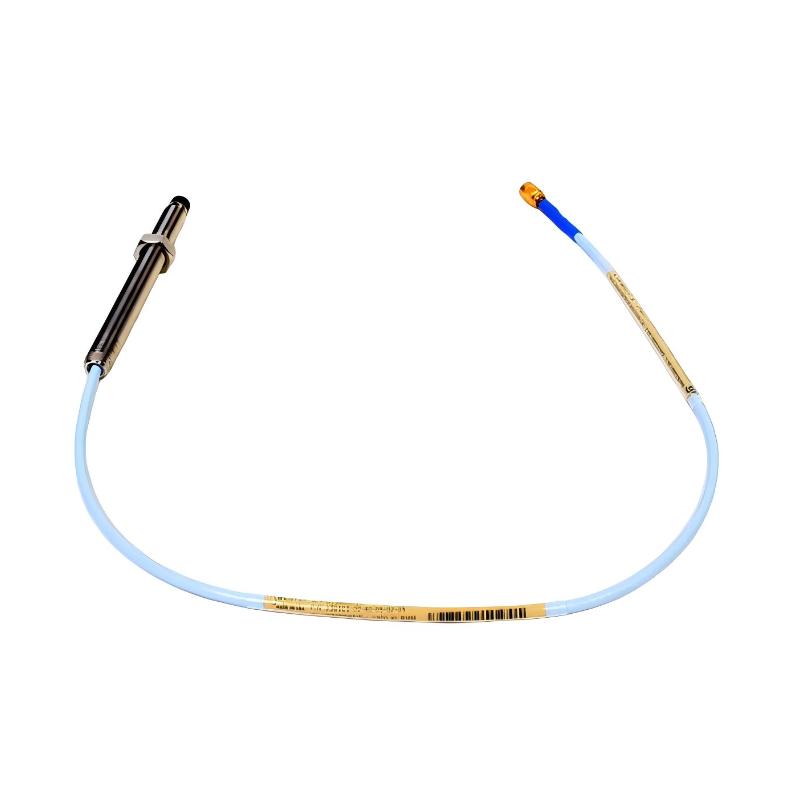

The Bently Nevada 330195-02-12-50-00 is a 3300 XL 8 mm Extended Temperature Range (ETR) reverse mount proximity probe designed for accurate, non-contact measurement of shaft vibration and radial displacement in rotating machinery. It is widely used in condition monitoring systems for turbines, compressors, pumps, and generators where stable signal performance and long-term reliability are essential.
This model is part of the 3300 XL proximity transducer system, built on eddy-current sensing technology, ensuring consistent performance in harsh industrial environments with vibration, temperature variation, oil exposure, and electromagnetic interference.
Technical Specifications
| Item | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 330195-02-12-50-00 |
| Product Type | 3300 XL 8 mm ETR Reverse Mount Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (standard 3300 XL configuration) |
| Case Length Option | 02 – compact probe body configuration |
| Unthreaded Length | 12 mm |
| Cable Length Option | 50 – 5.0 m system cable length |
| Output Type | Analog displacement signal |
| Application | Shaft vibration, radial position monitoring |
Physical Dimensions & Weight
| Parameter | Value |
| Dimensions (L × W × H) | 5000 × 8 × 8 mm (approx. assembly reference including cable length) |
| Weight | Approx. 0.32–0.40 kg |
