Brand:Schneider PLC Item No.:ATS130N2D38LT Product Origin:France Product Dimensions:166 × 55 × 165 mm Product Weight:1.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

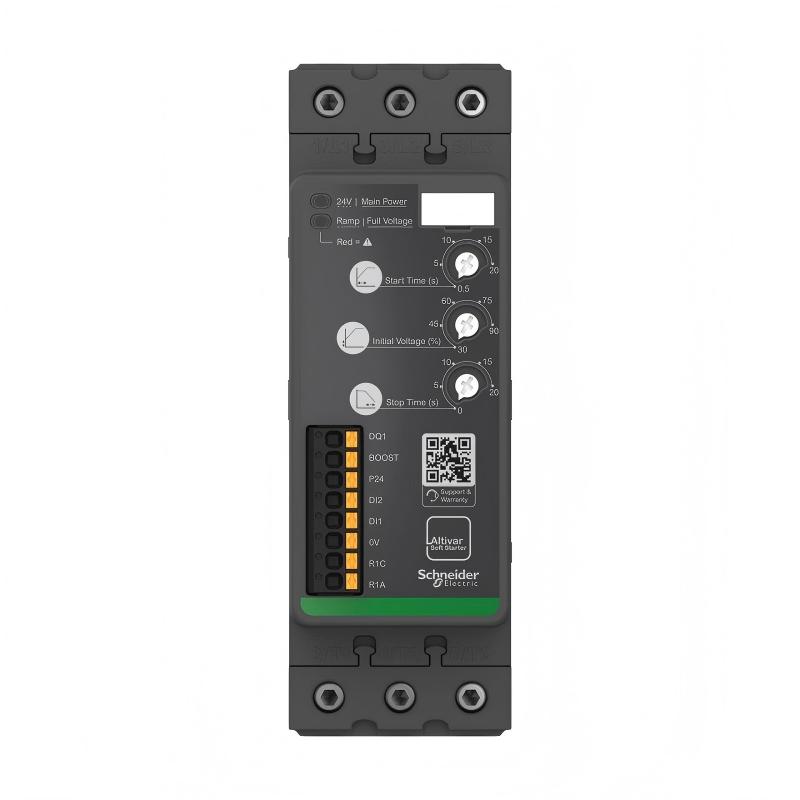

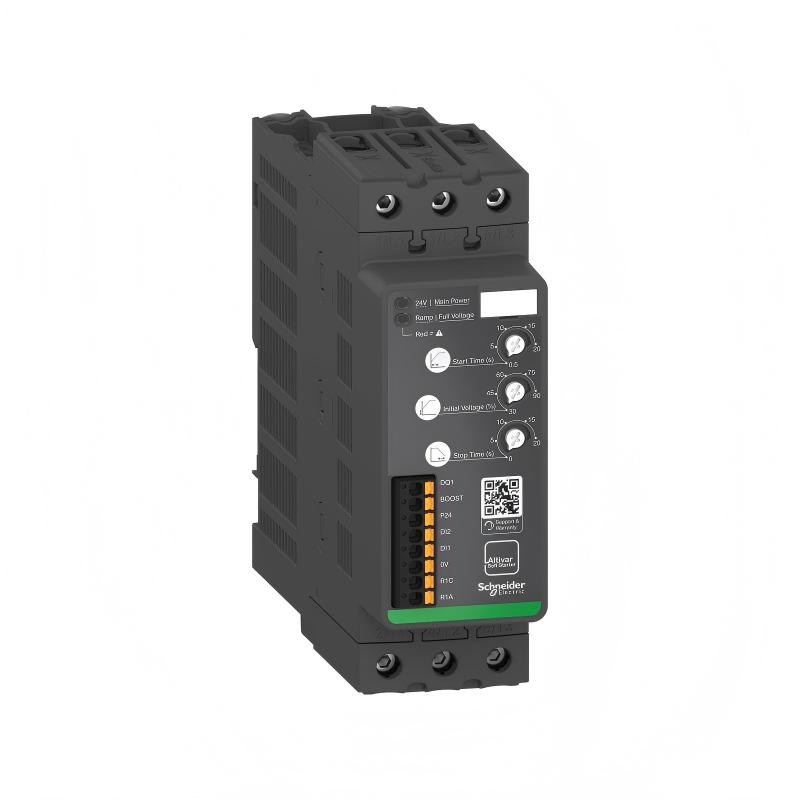

The ATS130N2D38LT belongs to Schneider Electric’s Altivar ATS130 series, providing a robust and compact soft starting solution for industrial motor applications. It enables controlled voltage ramp-up, reducing electrical inrush current and mechanical stress on driven equipment.
Its design focuses on reliability, ease of integration, and stable performance in standard industrial environments, making it suitable for OEM systems and industrial control panels.
Technical Specifications
Parameter
Value
Product Series
Schneider Altivar ATS130
Model
ATS130N2D38LT
Device Type
Soft Starter
Rated Supply Voltage
200–480 V AC (3-phase)
Frequency
50/60 Hz
Rated Current
38 A
Motor Power Range
11 kW (230 V) / up to 22 kW (440 V)
Control Voltage
24 V DC
Control Method
Voltage ramp start
Protection Class
IP20

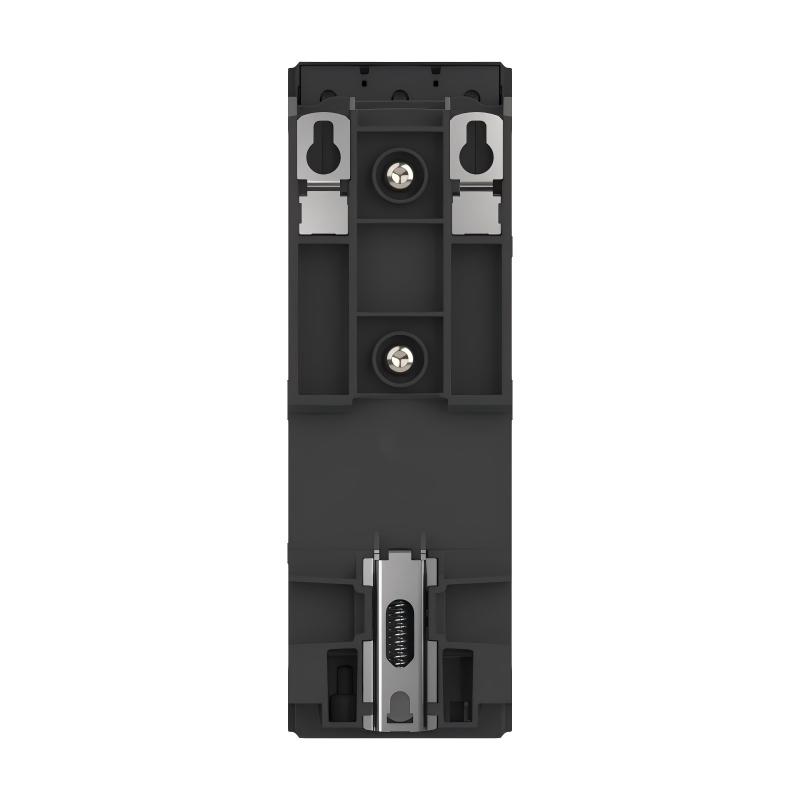

Mounting Type
Panel mounting / DIN rail support
Operating Temperature
-10°C to +40°C
Storage Temperature
-25°C to +70°C
Dimensions (H × W × D)
166 × 55 × 165 mm
Weight
1.3 kg (2.87 lb)
Recommended Related Models
Schneider ATS130N2D38LT – 38A Soft Starter Module
Schneider ATS130N2D32LT – Lower current ATS130 variant
Schneider ATS22 Series Soft Starters
Schneider Altivar ATV320 Variable Speed Drives
Popular Related Models
ATS130N2D38LT Soft Starter Module
ATS130N2D32LT Soft Starter Module
ATS22D Series Soft Starters
ATS48 Heavy Duty Soft Starters
Applications
The Schneider ATS130N2D38LT Soft Starter is designed for controlled starting and stopping of three-phase asynchronous motors in industrial systems requiring reduced electrical stress and improved mechanical protection.
Typical applications include:
Industrial pumping and fluid transfer systems
HVAC ventilation and air handling equipment
Compressors and refrigeration systems
Conveyor and material handling machinery
General-purpose manufacturing equipment
OEM industrial control panels
It supports smooth motor acceleration to improve process stability and reduce equipment wear.
Advantages
Compact industrial design for efficient panel integration
Controlled voltage ramp reduces starting current peaks
Integrated bypass improves efficiency during steady operation
Helps reduce mechanical shock and torque stress on driven loads
Improves service life of motors and mechanical components
Stable operation across a wide industrial voltage range
Designed for simplified installation and maintenance
Suitable for standard industrial automation environments
Technical FAQs (10 Questions)
Q1: What type of motor is compatible with this soft starter?
A: Three-phase squirrel cage induction motors.
Q2: What is the main function of this device?
A: It provides controlled motor starting and stopping by regulating voltage ramp.
Q3: Does it support variable speed control?
A: No, it does not control motor speed during operation.
Q4: Can it be used in pump applications?
A: Yes, it is commonly used in pumping systems to reduce hydraulic shock.
Q5: Does it require programming software?
A: No, it is designed for simple parameter configuration.
Q6: Does it include motor protection functions?
A: Yes, it includes integrated electronic protection features.
Q7: Can it operate without a PLC?
A: Yes, it supports standalone operation.
Q8: Does it support communication protocols?
A: No, it does not include network communication interfaces.
Q9: Is it suitable for frequent starting cycles?
A: It is intended for standard industrial duty operation.
Q10: Does it help reduce mechanical stress?
A: Yes, it reduces torque shock during motor startup.
